Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: SMA Female-N Female
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+1--3+kit
Packaging Details: Standard neutral packing3.5x3.5x3.5cm(1pcs),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Impedance: |
50OHm |
RF Connect Type: |
SMA Female-N Female |
Material: |
Zinc Alloy |
Inner Conductor: |
Beryllium Copper, Gold |
Body: |
Stainless Steel, Passivated |
Gender: |
Female |
Operating Temperature: |
-55~+165℃ |
Warranty: |
1 Year |
Weight: |
0.05kg |
Packing Size: |
3.5*3.5*3.5cm |
MOQ: |
1PCS |
Products Type: |
Cellular Amplifier |
Impedance: |
50OHm |
RF Connect Type: |
SMA Female-N Female |
Material: |
Zinc Alloy |
Inner Conductor: |
Beryllium Copper, Gold |
Body: |
Stainless Steel, Passivated |
Gender: |
Female |
Operating Temperature: |
-55~+165℃ |
Warranty: |
1 Year |
Weight: |
0.05kg |
Packing Size: |
3.5*3.5*3.5cm |
MOQ: |
1PCS |
Products Type: |
Cellular Amplifier |

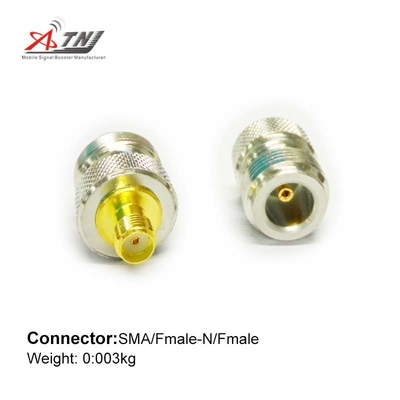

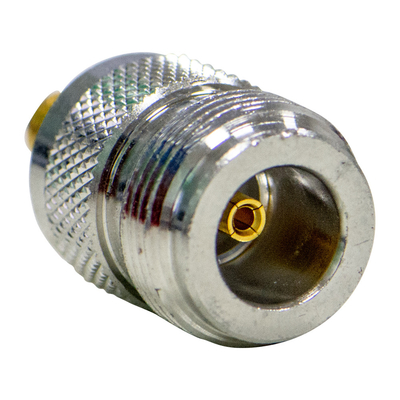

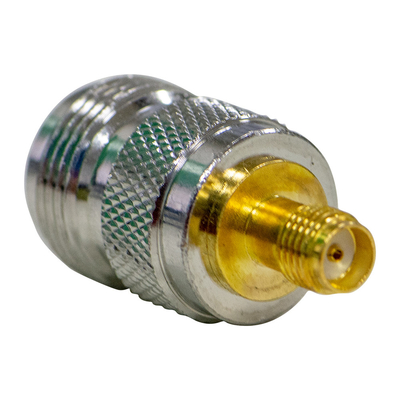

50OHm Cell Phone Booster Connectors SMA Female To N Female Type
About this item
Type : Coaxial, RF Adapter.
Connect SMA to N Type Device, Compatible with N Type and SMA Connectors, Used for Connecting a SMA Male to N Female jack.
Connectors : SMA (Female) Jack and N (Male) Plug, One side is N Type Male (inside Screw and Male Pin) and the Other Side is SMA Female (Outside Screw and Female Pin).
Great for many projects which involves SMA and N Type connector. Widely used for Antennas, Coaxial cable, Wireless LAN Devices, signal repeaters and Digital Communication System.
Main products include SMA to SMA,SMA to N,N to SMA adaptors,which are excellent in performance and on spot sale.
|
Part number |
Description |
Frequency |
Typical VSWR |
|
N-KK |
N(f)-N(f) |
DC to 18GHz |
1.15 |
|
N-JJ |
N(m)-N(m) |
DC to 18GHz |
1.15 |
|
N-JK |
N(m)-N(f) |
DC to 18GHz |
1.15 |
|
SMA/N-JJ |
SMA(m)-N(m) |
DC to 18GHz |
1.15 |
|
SMA/N -JK |
SMA(m)-N(f) |
DC to 18GHz |
1.15 |
|
SMA/N -KJ |
SMA(f)-N(m) |
DC to 18GHz |
1.15 |
|
SMA/N -KK |
SMA(f)-N(f) |
DC to 18GHz |
1.15 |
|
SMA-JJ |
SMA(m)-SMA(m) |
DC to 18GHz |
1.15 |
|
SMA -JK |
SMA(m)-SMA(f) |
DC to 18GHz |
1.15 |
|
SMA -KFK |
SMA(f)-SMA(f) with flange |
DC to 18GHz |
1.15 |
|
SMA -KK |
SMA(f)-SMA(f) |
DC to 18GHz |
1.15 |
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
FAQ :
Q1 : How to select RF connectors?
A1 :
Q2 : Can you offer samples to test before placing one formal order?
A2 : Samples for test purpose can be presented free provided that you bear the shipping cost.
Q3 : How about the Shipping Method?
A3 : DHL/UPS/TNT/Fedex or by Air/Sea. It takes 4-7 days from China to your office by express.
Q4 : How about the label and the logo?
A4 : Customize label and logo is workable.
Q5 : What is your payment terms?
A5 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
Q6 : How many the warranty?
A6 : All our goods are 1 year warranty and we will do free replacement for all the problem items.
