Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS,CCC,TUV,BV, ISO
Model Number: AS-D
Document: DCS 1800MHz B07 Signal Repe...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
1710-1785MHz,1805-1880MHz |
Color: |
Black ,White Cuztomized |
Interface:: |
SMA/F Connector |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Warranty: |
3 Years |
Device Gain: |
70dB |
Device Power: |
17±3 |
Frequency Range: |
1710-1785MHz,1805-1880MHz |
Color: |
Black ,White Cuztomized |
Interface:: |
SMA/F Connector |
Material: |
Alloy ,Plastic |
ALC+AGC Intelligent Function: |
Done |
Warranty: |
3 Years |
1800MHz 4G Signal Repeater
1800MHz Mobile Signal Booster Cellular Repeater Amplifier Band3
Model No AS-D
1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.
Description
Specifications |
Parameters |
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785MHz |
Downlink |
1805-1880MHz |
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz |
|
Gain |
70dB |
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
Auto Gain Control |
20dB Min. |
|
Output Power(Customers to Choose) |
17±3dBm |
|
Spurious Emission |
≤ -15dBm/30kHz |
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
In-band Ripple |
≤ 3dB |
|
VSWR |
<=2 |
|
I/O Impedance |
50 Ω |
|
Noise Figure |
≤ 5dB |
|
System Delay |
≤ 5μs |
|
RF Connector(Customers to Choose) |
SMA(F) |
|
Operating Temperature |
- 10°C ~ + 55°C |
|
Dimensions |
165*130*40 (mm) |
|
Country of Origin |
Shenzhen China |
Further detail pls click here for downloading the products specification:

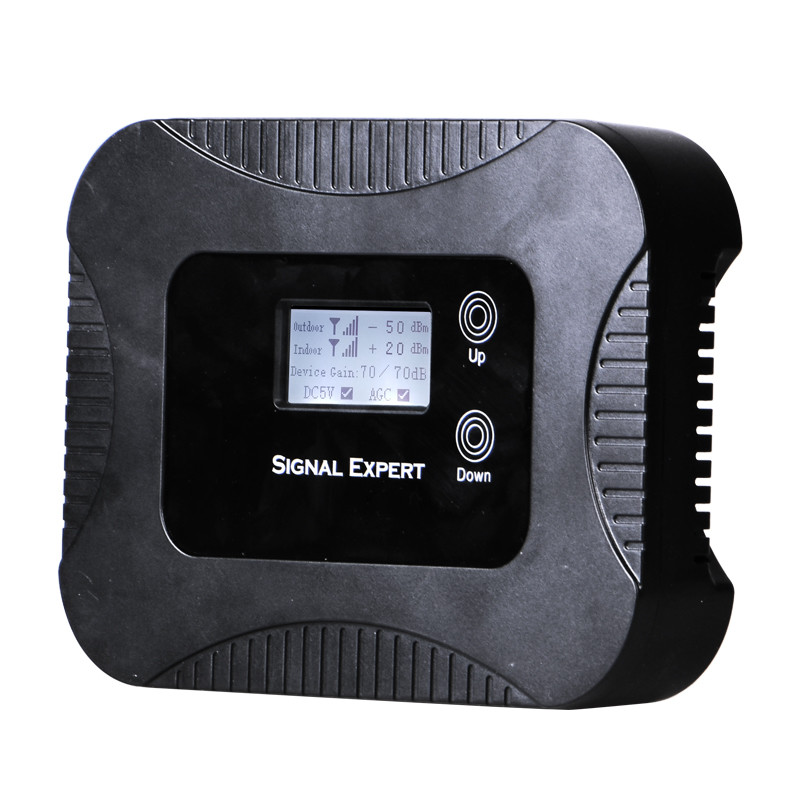

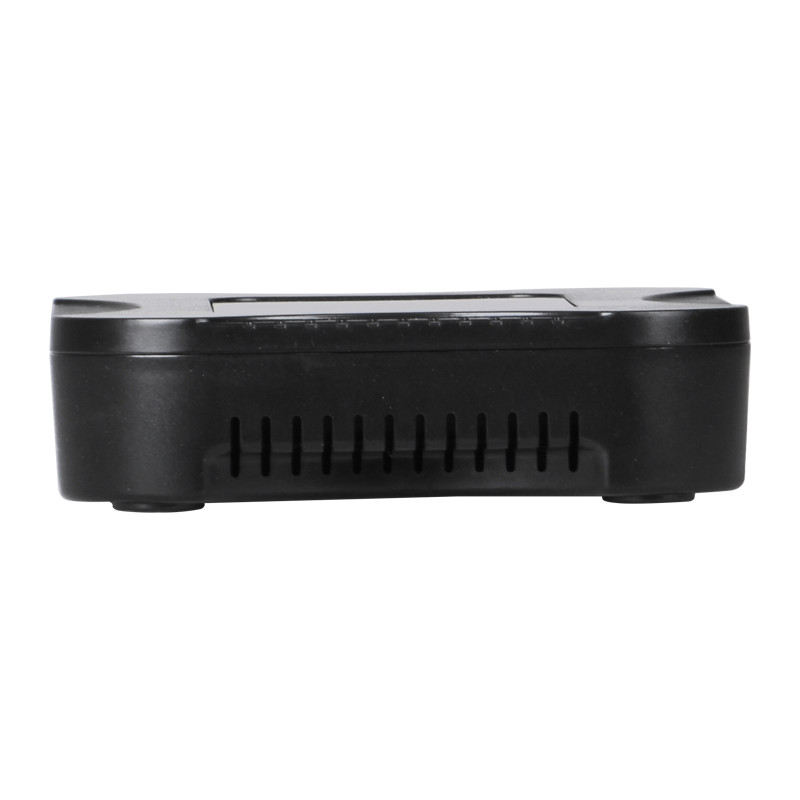

Product Images
Feature:
- Strong output power, wide coverage area .
- LCD display signal in real time .
- High gain can support multiple loads .
FAQ
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Warranty and Certificates ?
Our warranty is 12 months .
We have CE, ROHS, CCC certificates .
5. What is your MOQ ?
1pc sample test is welcomed .
