ALC Function 850MHz 2100MHz Dual Band Repeater Low Interference To BTS
Economical Mobile Booster Dual Band Repeater 850 2100MHz B5 B1 2G 3G 4G Signal Amplifier
Selling Point
Features:
1. Cost-effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.Expansion and extension of the signal of the base station. Optimization of the quality of the signal and source
3. High linear design, ALC function design, low interference to BTS.
4. Support any cellular devices (voice & data & video)
5. Wideband signal booster, or customize selective band booster.
6. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G, etc
Advantages:
1. Smart Function, Intelligent mode setting smart function called which can be activated via the front panel. users can adjust gain and choose working band by LED panel, This smart function is easier than DIP Switch, can set up parameters, It is a simple, safe, and effective way.
2. Auto Level Control
The 30dB ALC is used to maintain steady output power even when the donor source signal fluctuates.
3. ODM/OEM service is available.
Technical Specifications
|
Specifications
|
Parameters
|
|
Frequency Range (Customers to Choose)
|
Uplink
|
824-849MHz, 1920-1980MHz
|
|
Downlink
|
869-894MHz, 2110-2170MHz
|
|
Frequency Bandwidth (3dB Bandwidth)
|
25MHz&60MHz
|
|
Gain
|
70dB
|
|
Automatic gain control (Step Attenuation)
|
31dB @ 1dB/ Step
|
|
Auto Gain Control
|
20dB Min.
|
|
Output Power(Customers to Choose)
|
20±3dBm
|
|
Spurious Emission
|
≤ -15dBm/30kHz
|
|
9kHz~1GHz: ≤ -36dBm/30kHz
|
|
1GHz~12.75GHz: ≤ -30dBm/30kHz
|
|
Inter-Modulation Attenuation ACPR
|
≤ -40dBc / 30kHz (measured under rated output power)
|
|
In-band Ripple
|
≤ 3dB
|
|
VSWR
|
<=2
|
|
I/O Impedance
|
50 Ω
|
|
Noise Figure
|
≤ 5dB
|
|
System Delay
|
≤ 5μs
|
|
RF Connector(Customers to Choose)
|
SMA(Female)
|
|
Operating Temperature
|
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
|
|
Power Supply
|
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
|
|
Dimensions
|
165*130*40 (mm)
|
|
Weight
|
≤0.8 kg(Net)
|
|
Alarm Monitoring System
|
Alarm for uplink self-oscillation
|
|
Indication LED
|
Power supply
|
Further detail pls click here for downloading the products specification:
850+2100MHz C03 Mobile Signal Repeater.pdf
Product Description

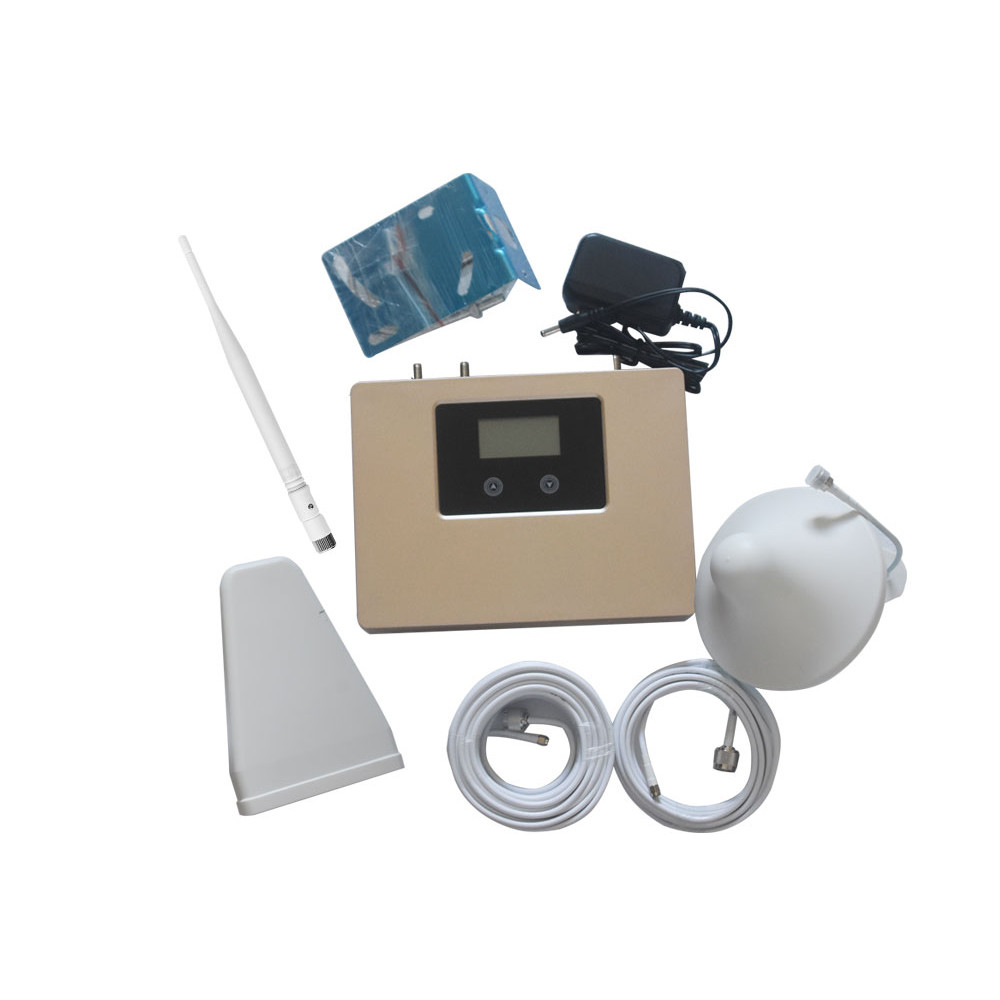

Installation Approaches

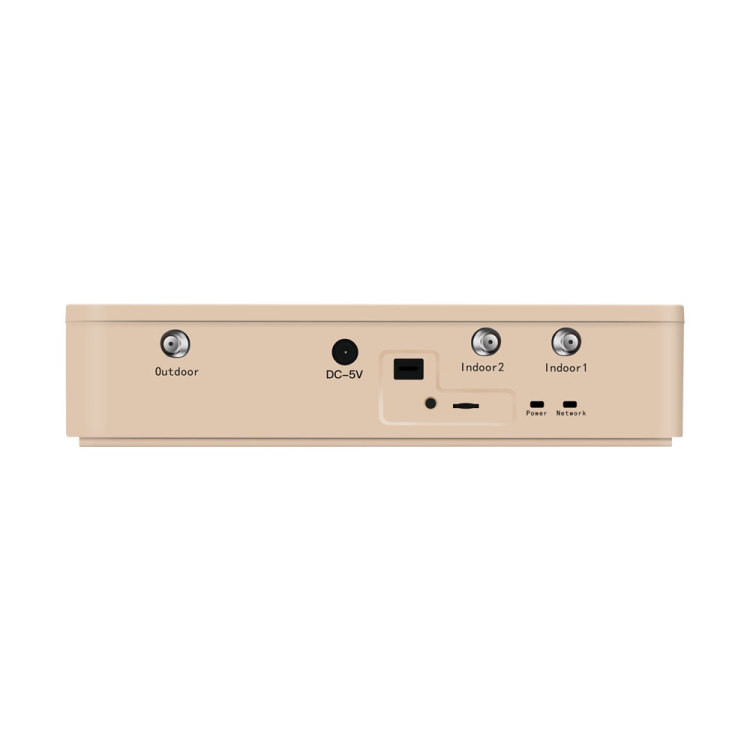

1. Fix up outdoor antenna reception on housetop and point to signal tower;
2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;
3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;
4. Plug power adaptor into AC power socket and finish installation.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
(1) Frequency
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)
(2) Payment Method
T/T, Western Union, Paypal, and Credit Card are available, but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
* Other methods please contact us with more details.
(3) What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
(4) Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
