Dual Band Repeater
>
800-GSM+4G 70dB Gain Dual Band GSM Booster 4G LTE Mobile Network Repeater

800-GSM+4G 70dB Gain Dual Band GSM Booster 4G LTE Mobile Network Repeater

Brand Name: ATNJ
Model Number: JS-800/E900/P
MOQ: 1
Price: USD+75---90+kit
Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
800MHz Frequency Range:
832-862MHz / 791-821MHz
E900MHz Frequency Range:
880-915MHz / 925-960MHz
Products Type:
EGSM Repeater Booster
Gain:
70±3dB
Output Power:
17±3dBm
Color:
Black & Gold & Customized
Weight:
4kg
Supply Ability:
1000+unit+per day.
High Light:

70dB Dual Band GSM Booster

,

TUV Dual Band GSM Booster

,

70dB GSM Repeater Dual Band

Product Description

70dB Gain Dual Band EGSM Booster 4G LTE Mobile Network Repeater



4G Signal Amplifier Mobile Network Dual Band Repeater 800 / 900 EGSM Booster 70dB Gain



Please Check Frequency before Buying How to check?



- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band


- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band



LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 1





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

832-862MHz, 880-915MHz

Downlink

791-821MHz, 925-960MHz

Frequency Bandwidth

30MHz&35MHz

Gain

70±3dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

17±3dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

800+E900MHz C03 Mobile Signal Repeater.pdf



Selling Point



1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.





Product Description





Model No : JS-DB800/900/P



Can control gain automatically. Avoid base station interference

(Band 20) 800MHz -- Uplink frequency : 832 - 862MHz / Downlink frequency : 791 - 821MHz
(Band 8) 900MHz -- Uplink frequency : 880 - 915MHz / Downlink frequency : 925 - 960MHz

Network support : EGSM900 2G + LTE800 4G







Item Description



LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 2LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 3LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 4LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 5LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 6LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 7LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 8

LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 9LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 10



Installation Approaches



1. Fix up outdoor antenna reception on housetop and point to signal tower;

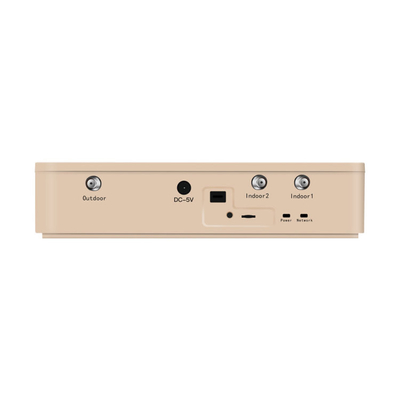

2. Connect outdoor antenna to “outdoor” port in repeater nachine through cable;



3. Connect indoor antenna(s) to “indoor” port in repeater machinethrough cable also;



4. Plug power adaptor into AC power socket and finish installation.





Technique supporting:



1. If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70dBm.



2. If cannot call out,please adjust the direction of outdoor antenna.



3. If the strength is not steady,please check if outdoor and indoor antennas are too close;please ensure the outdoor antenna and indoor antenna have distance of 20meters at least,with a wall between and not in a same horizontal line.





LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 11LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 12

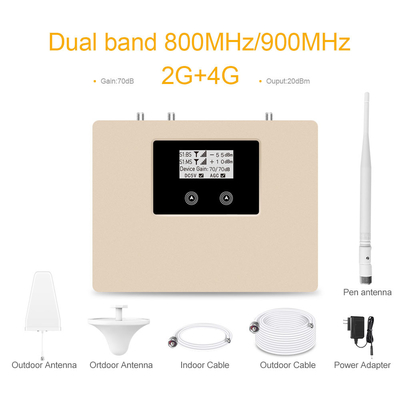

Accessories



a. One dual band signal booster;



b. Two indoor antenna;



c. One outdoor antenna;



d. 20meter cable and 5meter cable;



e. User manual;



f. Power adapter.



LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 13

LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 14





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.





LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 15

LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 16LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 17LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 18LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 19





FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
