Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: Wide Band Panel Antenna
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+110--130+unit
Packaging Details: Standard neutral packing3.5x3.5x3.5cm(1pcs),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Impedance: |
50OHm |
RF Connect Type: |
N Female |
Weight: |
4.5 Kg |
Gain: |
15-18dBi |
Frequency: |
2400-2500MHz |
Warranty: |
2 Year |
Bandwidth: |
100MHz |
Beamwidth: |
H:120° E:15° |
Max Power: |
100W |
Products Name: |
Cellular Signal Booster |
Impedance: |
50OHm |
RF Connect Type: |
N Female |
Weight: |
4.5 Kg |
Gain: |
15-18dBi |
Frequency: |
2400-2500MHz |
Warranty: |
2 Year |
Bandwidth: |
100MHz |
Beamwidth: |
H:120° E:15° |
Max Power: |
100W |
Products Name: |
Cellular Signal Booster |

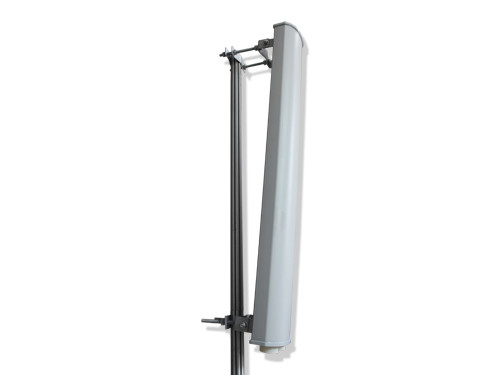

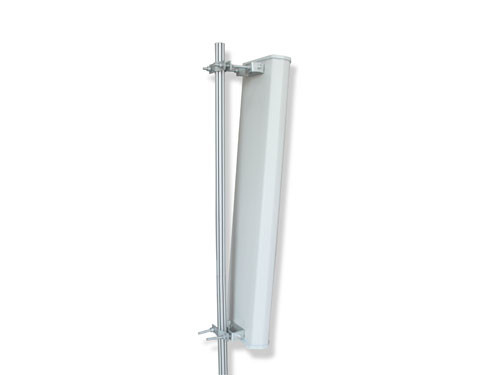

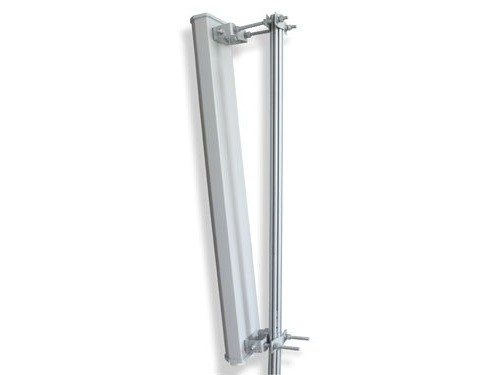

15dBi 18dBi 2G 3G 4G Cell Phone External Antenna Wide Band Panel
15-18dBi Wide Band Panel Wireless 2G 3G 4G Antenna for Mobile Phones Signal Repeater
Wide Band Panel Wireless 2G 4G Antenna coverage,Lower return loss and stable performance,Compact design,light weight.
The High-Gain Panel Antenna is made from weatherproof and corrosion-resistant material,easy and flexible wall or mast-mounted installation.
The antennas carrier grade construction features a light,PVC radome for durability and aesthetics.
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
|
Model
|
BT - PV2400 - 13 - 120
|
|
Frequency Range
|
2400 - 2500MHz
|
|
Bandwidth
|
100MHz
|
|
Gain
|
15 - 18dBi
|
|
Beamwidth
|
H : 120° E : 15°
|
|
VSWR
|
≤ 1.5
|
|
Polarization
|
Horizontal or Vertical
|
|
Max power
|
100W
|
|
Nominal Impedance
|
50Ω
|
|
Connector
|
N female
|
|
Antenna Dimension
|
607 x 175 x 65 - mm
|
|
Weight
|
4.5Kg
|
|
Rated Wind Velocity
|
60m/s
|
|
Diameter of the Pole
|
Φ40~50
|
FAQ:
Q1 Could you send us antenna sample for qulification?
A : Yes, we will consider the antenna sample qulification as the first step of our long term coorperation, we will rebate the sample charge in further mass production order.
Q7 What is your payment terms?
A : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
