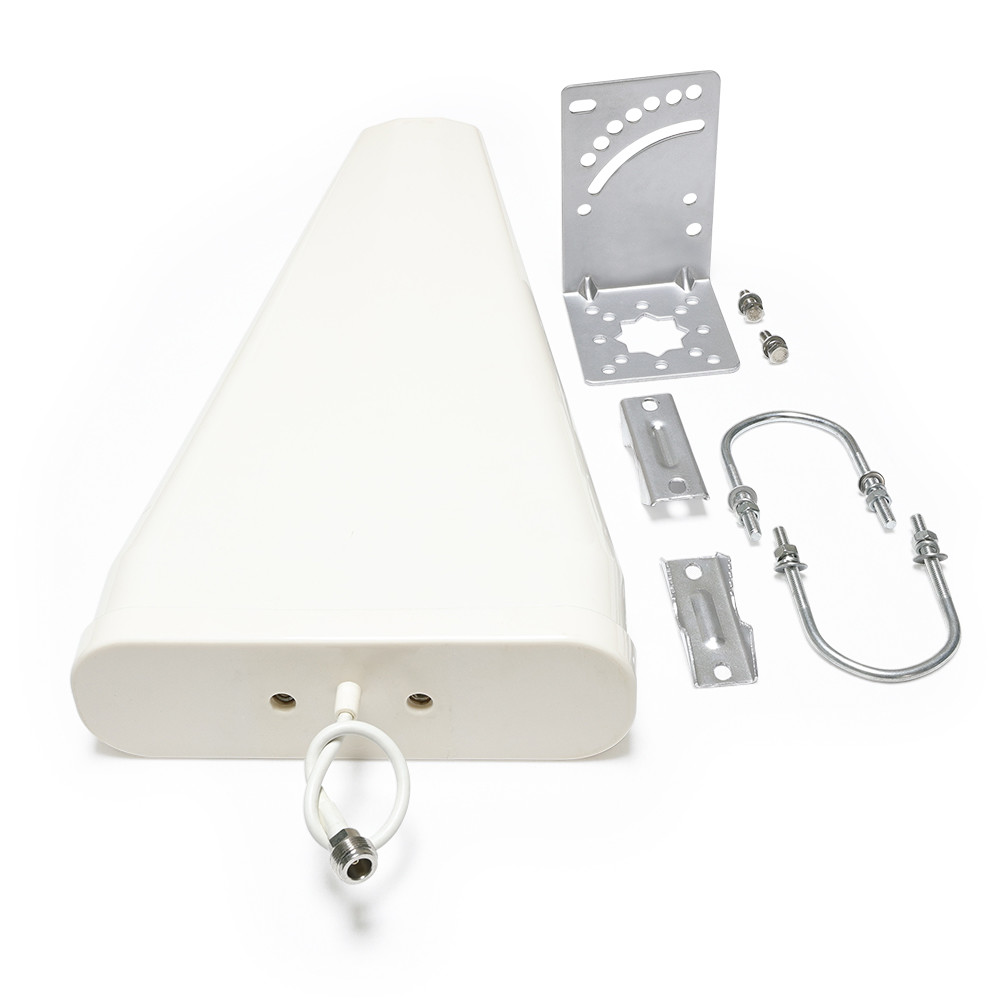

Outdoor Log Periodic 12dBi Signal Booster Antenna 700MHz To 2700MHz
| Impedance: | 50OHm | RF Connect Type: | N Female |
| Weight: | 0.65 Kg | Material: | Zinc Alloy |
| Gain: | 12dBi | Packing size: | 45*23*7cm |
| Frequency: | 700-2700MHz | Color: | Whilte |
| Length: | 41cm | Products type: | Signal Amplifier 4g |
| High Light: | 12dBi Signal Booster Antenna,2700MHz Signal Booster Antenna,12dBi Outdoor Log Periodic Antenna |
||

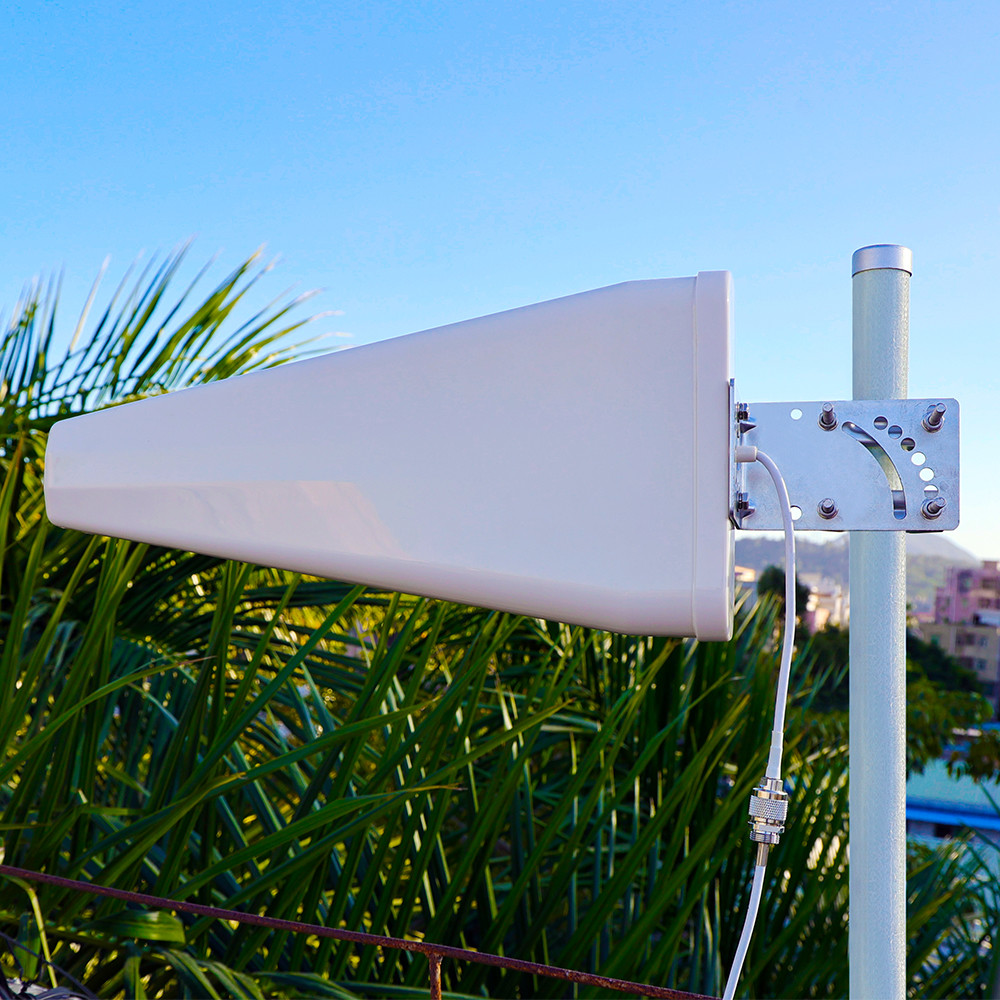

Outdoor Log Periodic 12dBi Signal Booster Antenna 700MHz To 2700MHz
700 - 2700MHz Outdoor Log Periodic Antenna 12dBi For Mobile Phones Signal Repeater
The most common form of log-periodic antenna is the log-periodic dipole array or LPDA, The LPDA consists of a number of half-wave dipole driven elements of gradually increasing length, each consisting of a pair of metal rods. The dipoles are mounted close together in a line, connected in parallel to the feedline with alternating phase. Electrically, it simulates a series of two or three-element Yagi-Uda antennas connected together, each set tuned to a different frequency.
LPDA antennas look somewhat similar to Yagi antennas, in that they both consist of dipole rod elements mounted in a line along a support boom, but they work in very different ways. Adding elements to a Yagi increases its directionality, or gain, while adding elements to a LPDA increases its frequency response, or bandwidth.
|
Item
|
Specifications
|
|
|
WIFI&GSM Antenna
|
Frequency Range
|
700~2700MHz
|
|
Polarization
|
Linear
|
|
|
Gain
|
12dBi
|
|
|
V.S.W.R
|
＜2.0
|
|
|
Impendance
|
50Ω
|
|
|
Mechanical
|
Cable
|
RG58
|
|
Connector
|
N/SMA/or others
|
|
|
Radome Material
|
ABS
|
|
|

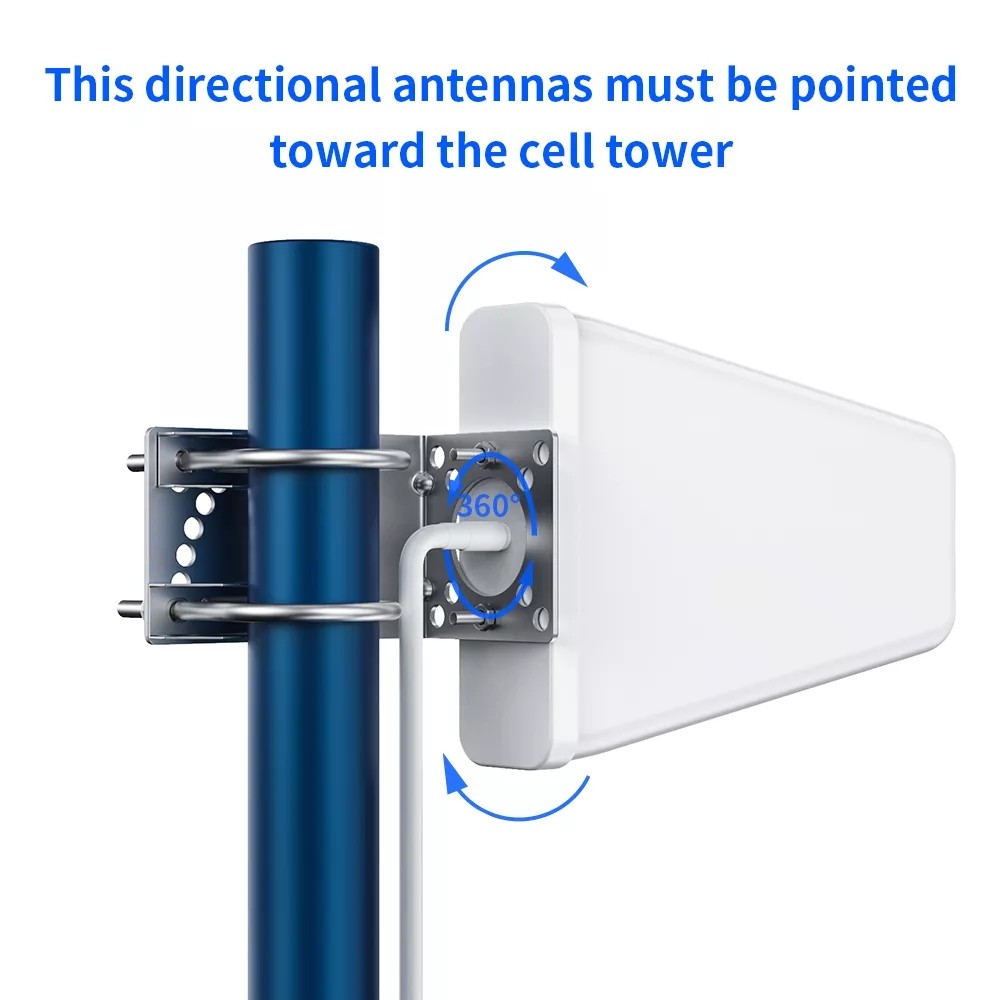

Mounting Method
|
Screw
|
|
|
Environmental
|
Operating Temperature
|
-40℃~+85℃
|
|
Relative Humidity
|
Up to 95%
|
|
|
Environmentally Friendly
|
ROHS Compliant
|
|
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
FAQ:
Q1 : Are you trading company or manufacturer ? Could I use our own logo and label?
A1 : We are factory, with trading service. We provide OEM/OEM service.
Q2 : Can I have a sample order? What is your MOQ?
A2 : Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
Q3 : Is it easy to set up your items?
A3 : Yes. We have a user manual and support technical support 24/7.
Q4 : What is your warranty time?
A4 : We promise 1 year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Q5 : What is your payment terms?
A5 : We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
-
AIt works great, the frequency can be adjusted to Vodafone correctly,and LTE speed goes fast.
-
MShipment arranged in time,and the repeater working well.
-
ALivraison dans un délai acceptable par voie aérienne. Qualité : j'attends d'installer totalement l'appareil.
