Product Details
Place of Origin: Guangdong, Shenzhen, China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: DS-37-DW78
Document: 5watt Digital Dual Band 180...37.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+1800---2300+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Products Type: |
5G Powerful Signal Booster |
1800MHz Frequency Range: |
1710-1785MHz/1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz; 2110-2170MHz |
5G Frequency Range: |
3400--3900MHz |
Color: |
Grey , Customized |
Products Type: |
5G Powerful Signal Booster |
1800MHz Frequency Range: |
1710-1785MHz/1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz; 2110-2170MHz |
5G Frequency Range: |
3400--3900MHz |
Color: |
Grey , Customized |

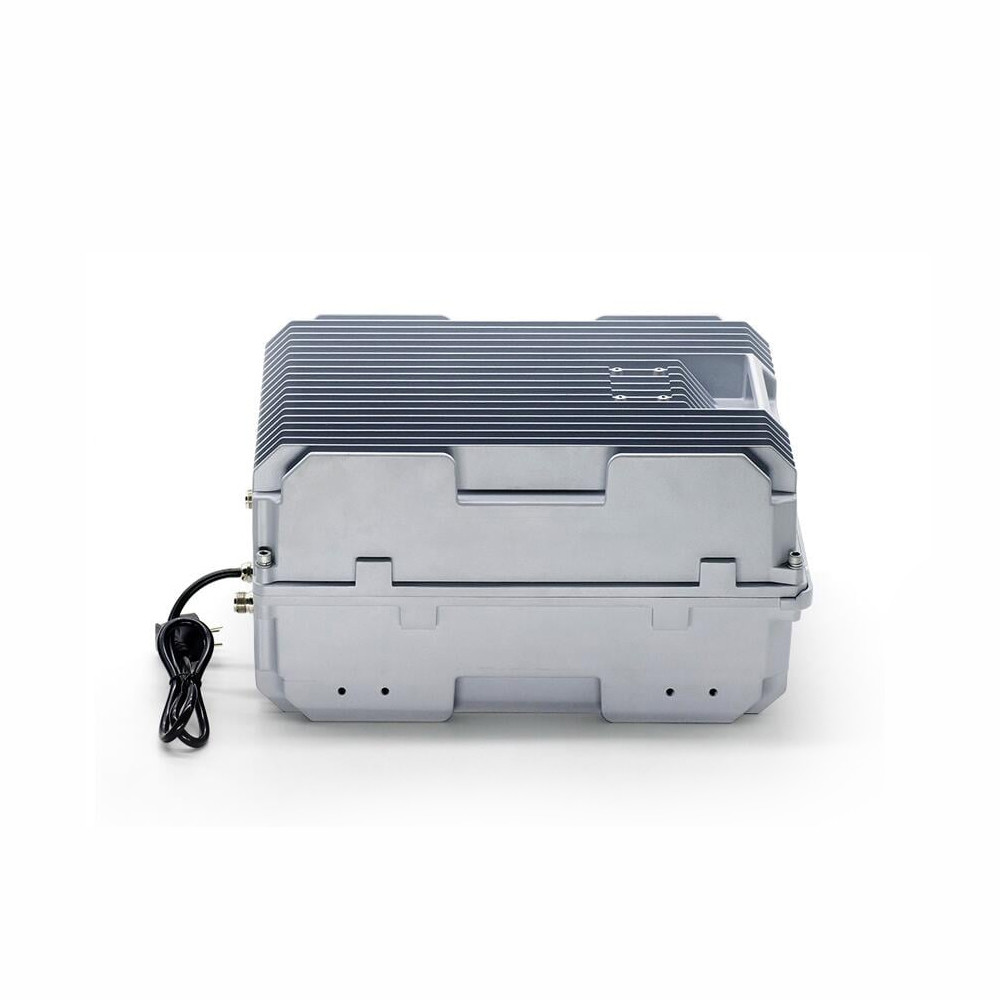

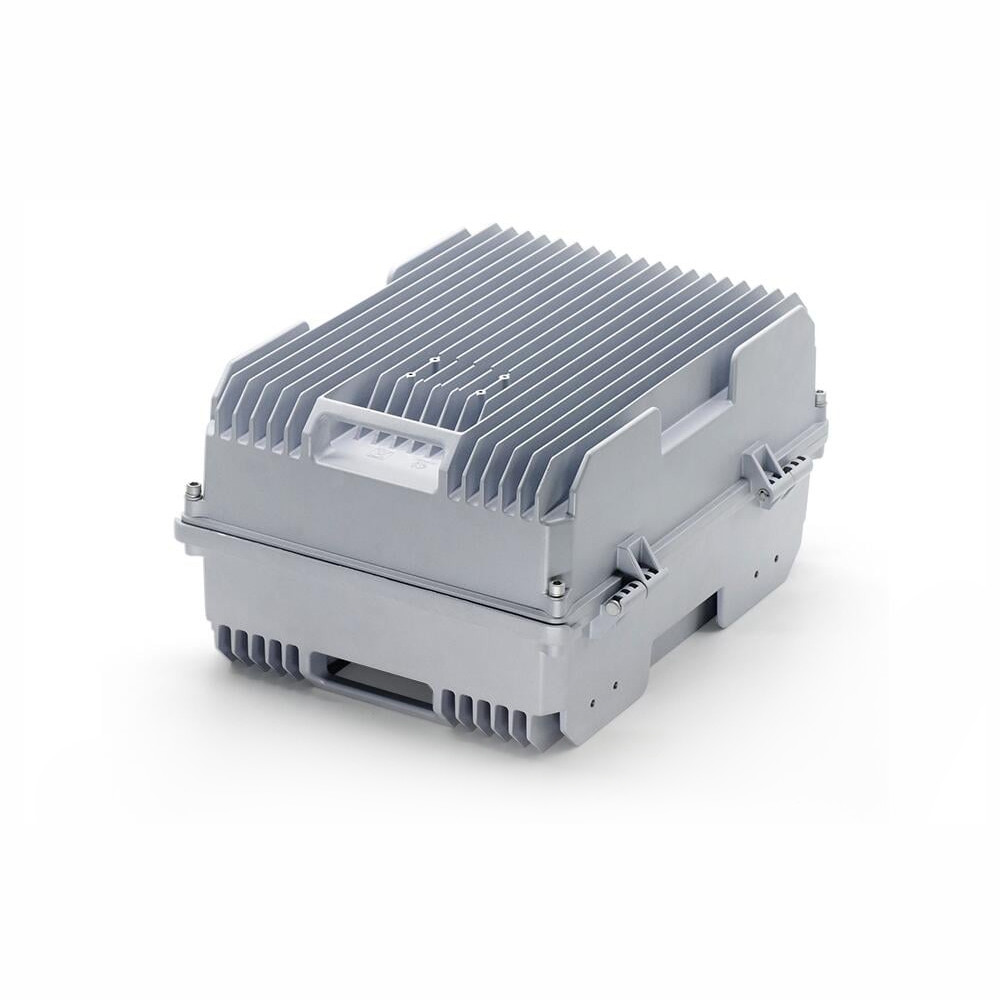

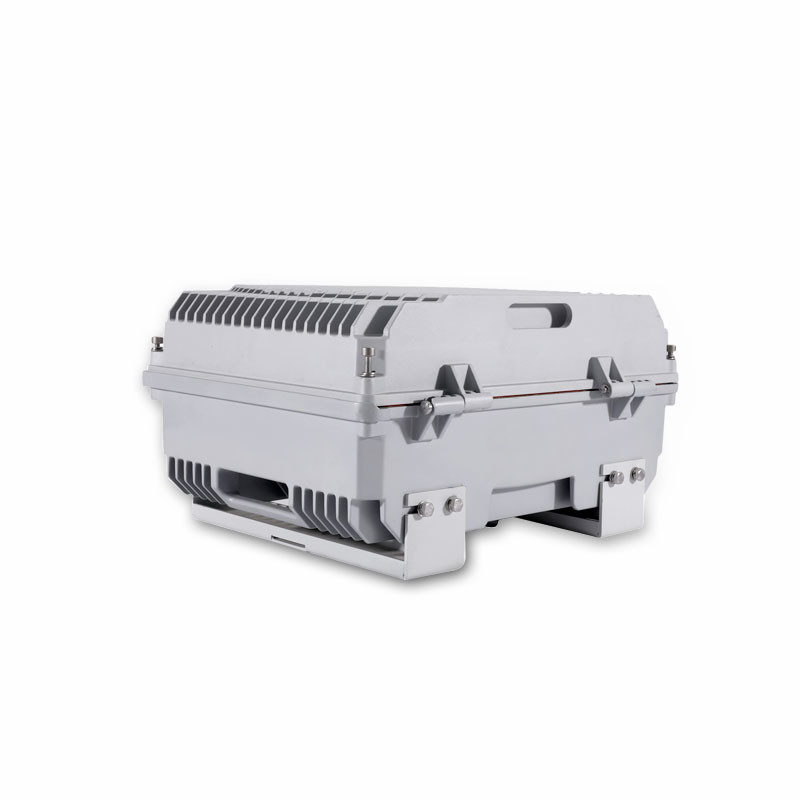

High Gain 85dB 5G Signal Booster NR Mino Indoor Distribution System
5G Signal Booster NR MINO+INDOOR DISTRIBUTION SYSTEM
AT-SZ20-B1+B3+N77 Indoor Repeater Technical Specification
| No. | (Item) | (Technical) | |
| 1 | 4G Frequency Range | (Uplink) | 1735.1~1754.5 MHz & 1920 ~1940MHz |
| 2 | (Downlink) | 1830.1~1849.5 MHz & 2110 ~2130MHz | |
| 3 | 4G Bandwidth | 19.4 & 20 MHz | |
| 4 | 5G NR Frequency Range | (Uplink) | 3600 ~ 3700 MHz |
| 5 | (Downlink) | 3600 ~ 3700 MHz | |
| 6 | 5G NR Band width | 100 MHz | |
| 7 | Gain(adjustable, 1dB step) | (Uplink) | 80±3 dB |
| 8 | (Downlink) | 85±3 dB | |
| 9 | Manual Gain Control | ≥30dB @ 1dB/Step | |
| 10 | Output Power | (Uplink) | 27±2dBm |
| 11 | (Downlink) | 37±2dBm | |
| 12 | Gain Flatness | LTE≤±1.5dB (p-p), NR≤±3dB (p-p) | |
| 13 | Group Delay | LTE≤4.5us, NR≤3.5us | |
| 14 | Noise Figure (at max. gain) | ≤9 dB | |
| 15 | VSWR | ≤3.0 | |
| 16 | Tx/Rx Isolation | ＞100dB | |
| 17 | AGC Protection | LTE≥30dB, NR≥20dB | |
| 18 | Frequency stability | ≤± 0.01 ppm | |
| 19 | 4G/5G Out of band gain | 0.2 ≤ f_offset ＜ 1 MHz | ≤ 60 dB |
| 20 | 1 ≤ f_offset ＜ 5 MHz | ≤ 45 dB | |
| 21 | 5 ≤ f_offset ＜ 10 MHz | ≤ 45 dB | |
| 22 | 10 MHz ≤ f_offset | ≤ 35 dB | |
| 23 | Operating band unwanted emission limits | Fully comply with 3GPP 36.106 Chapter 9 Category B Option 2 | |
| 24 | Spurious emissions | 9kHz – 150kHz | ≤-36dBm @1kHz |
| 25 | 150kHz – 30MHz | ≤-36dBm @ 10kHz | |
| 26 | 30MHz – 1GHz | ≤-36dBm @ 100kHz | |
| 27 | 1GHz – 12,75 GHz | ≤-30dBm @ 1MHz | |
| 28 | 12,75GHz – 19 GHz | ≤-30dBm @ 1MHz | |
| 29 | Error Vector Magnitude (EVM) | LTE≤8% RMS, NR≤3.5% RMS, Fully comply with 3GPP | |
| 30 | 4G Adjacent Channel Rejection Ratio (ACRR) | ≥20dBc/30kHz | |
| 31 | 5G Adjacent Channel Rejection Ratio (ACRR) | 43.8dBc/30KHz@±100MHz | |
| 32 | 43.8dBc/30KHz@±200MHz | ||
| 33 | Impedance | 50Ω | |
| 34 | RF Connector Type | N-type Female | |
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
