850MHz Mobile Signal Repeater

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: AS-BS-C

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+120---135+kit

Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

850MHz Mobile Signal Repeater

,

5μs CDMA Mobile Signal Repeater

,

850MHz Digital Signal Repeater

Frequency Range:
According To Customer's Need,Uplink:824-849MHz,Downlink:869-894MHz
Device Gain:
70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB,
Device Output Power:
17-20dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
ALC Intelligent Function:
Done
Bandwidth:
Supports 10MHz From 0.2 To 10MHz Bandwidth Adjusted
RF Connect Type:
SMA/Female
Power Supply:
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter)
Packing Size:
54x19x16cm
Frequency Range:
According To Customer's Need,Uplink:824-849MHz,Downlink:869-894MHz
Device Gain:
70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB,
Device Output Power:
17-20dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
ALC Intelligent Function:
Done
Bandwidth:
Supports 10MHz From 0.2 To 10MHz Bandwidth Adjusted
RF Connect Type:
SMA/Female
Power Supply:
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter)
Packing Size:
54x19x16cm
850MHz Mobile Signal Repeater

850MHz Mobile Signal Repeater



Digital 850MHz CDMA 2G 3G Mobile Signal Repeater Selected Band Cellular Amplifier



Technical Specifications



Digital Selected Band5 850MHz specially for mobile provider need.



Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

824-849MHz

Downlink

869-894MHz

Frequency Bandwidth (Adjustable)

10MHz from 0.2 to 10MHz bandwidth adjusted

Gain

68±2dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Device Output Power

20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA (F)

Operating Temperature

- 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 220V/ DC5V/2A

Dimensions

165*130*40 (mm)

Weight

≤0.35 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

LCD Intelligent Guide

Done

Further detail pls click here for downloading the products specification:

CDMA 850MHz B08 RF Repeater.docx.pdf



Selling Point



2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.







Product Description

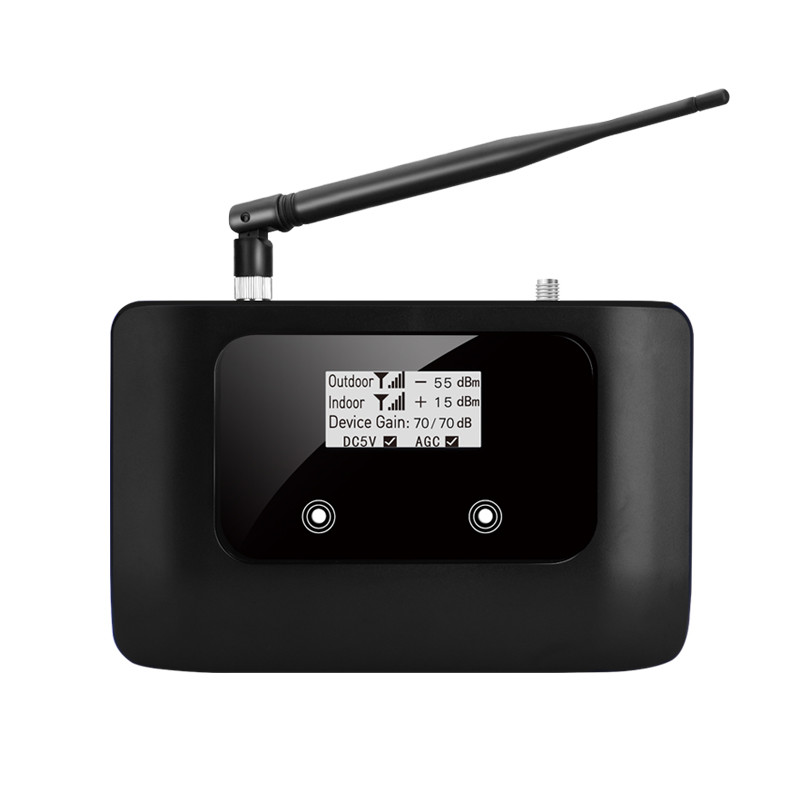

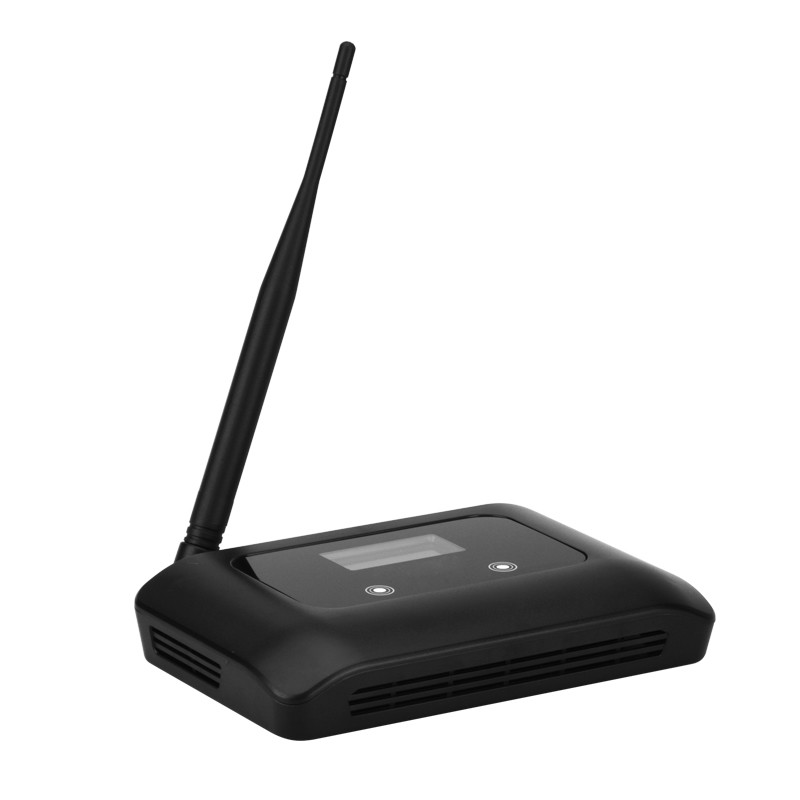

850MHz Mobile Signal Repeater 0850MHz Mobile Signal Repeater 1

1,Intelligent to guide the installation with LCD
2,Real time display the signal strength.
3,Automatic dormancy when no user make the calling
4,Automatic alarm when installation mistake and provide the according solution
5,Automatic adjust the system gain to avoid the repeater self-excitation
6,initiative reminding when the device was damaged.

7,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted



850MHz Mobile Signal Repeater 2

850MHz Mobile Signal Repeater 3







We are manufacturer, and have our own factory.

FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
