70dB Gain Dual Band Signal Repeater EGSM 1800MHz Output Power 20dBm
| E900MHz Frequency Range: | 880-915MHz / 925-960MHz | 1800MHz Frequency Range: | 1710-1785MHz / 1805-1880MHz |
| Color: | Gold, Black, White, Customized | Warranty: | 3 Years |
| Packing size: | 52x21x16cm | Products Type: | GSM Repeater Booster, Antenna Kit 4g Lte |
| High Light: | 70dB Dual Band Signal Repeater,20dBm Dual Band Signal Repeater,20dBm GSM Repeater Dual Band |
||
70dB Gain Dual Band Signal Repeater EGSM 1800MHz Output Power 20dBm
Dual Band Signal Booster 70dB Gain EGSM 1800MHz Cellular Signal Repeater Amplifier
AGC MGC Function
The AGC and MGC functions can prevent the amplified signal from causing interference to the base station. Even if it is installed incorrectly, the amplifier can protect the normal operation of the base station.
Adjustable Gain
Automatic adjust the system gain to avoid the repeater self-excitation
Check the frequency range before you buy
To make sure that the amplifier you buy is suitable for your mobile operator, please follow the steps and detect the frequency range of your mobile phone. This signal booster can only work on Band 8, Band 3.
Band 8 = B8 = 2G GSM900 / EGSM900
Band 3 = B3 = 4G DCS1800 / 4G LTE1800
Band 1 = B1 = 3G WCDMA2100 / 3G UMTS2100
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
880-915MHz, 1710-1785MHz |
|
Downlink |
925-960MHz, 1805-1880MHz |
|
|
Frequency Bandwidth |
35MHz&75MHz |
|
|
Gain |
65±5dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
≥20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
E900+1800MHz A032 mobile signal repeater.pdf
Product Description

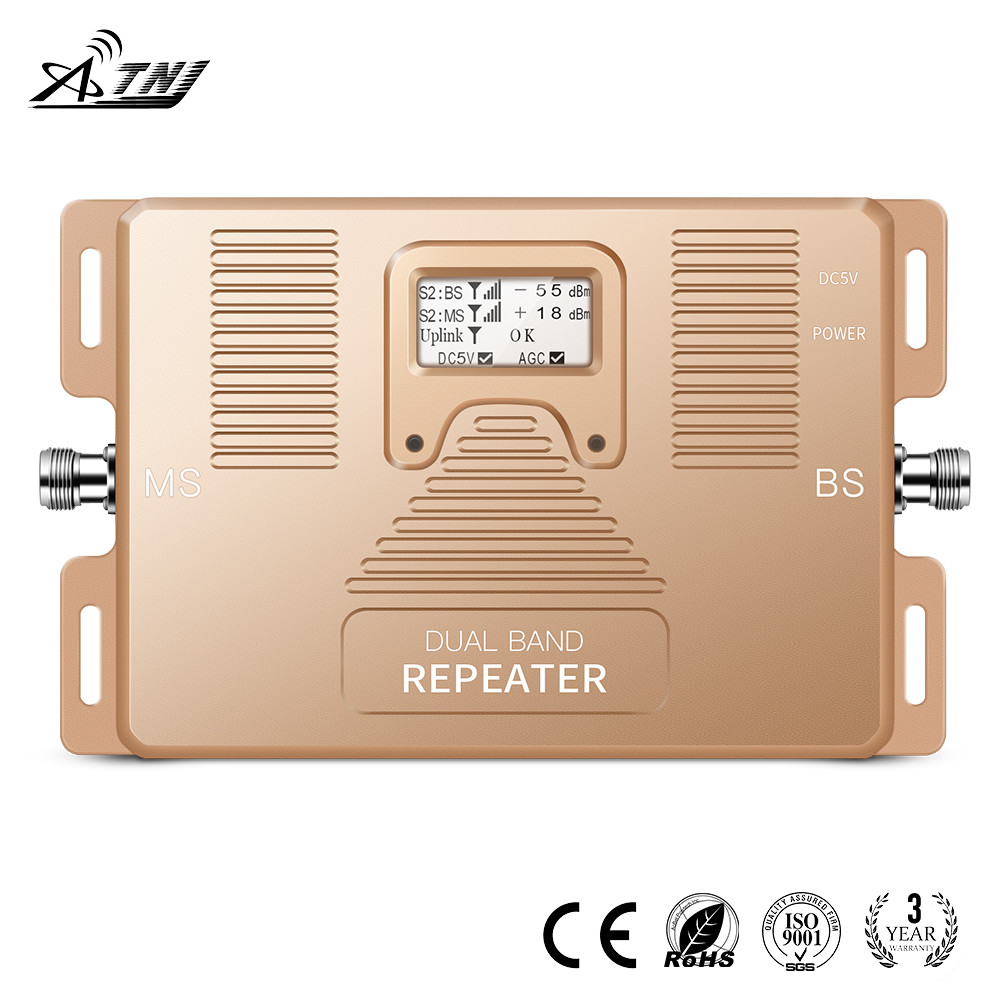

LCD Display. Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.

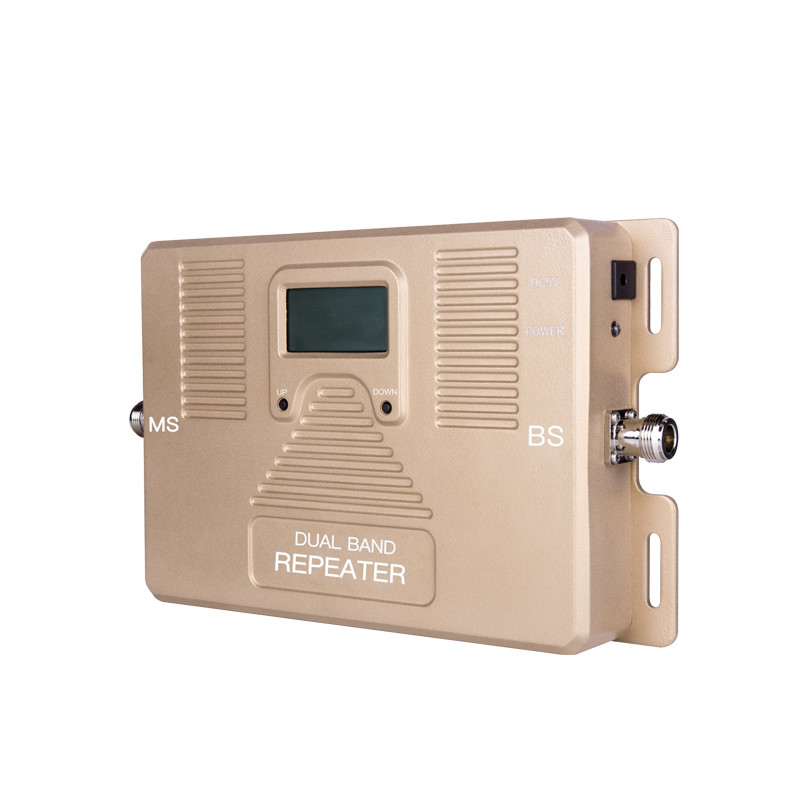

Compact size and high-tech design. The signal amplifier has a small size, light weight, advanced design and intelligent LCD display. It fits perfectly into any interior.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
5. Please feel free to contact us if any other questions.
-
