Brand Name: | ATNJ |
Model Number: | AS-P |
MOQ: | 5Pcs |
Price: | USD+40---49+kit |
Packaging Details: | Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

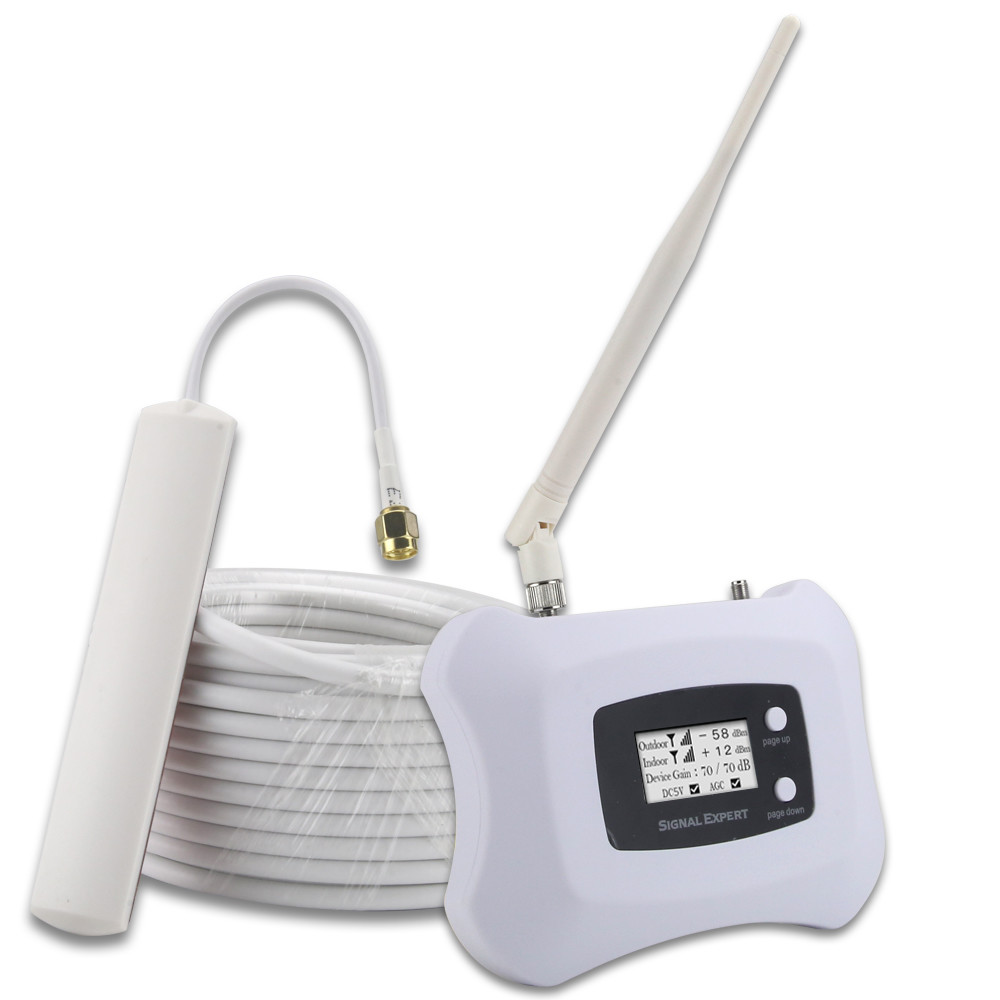

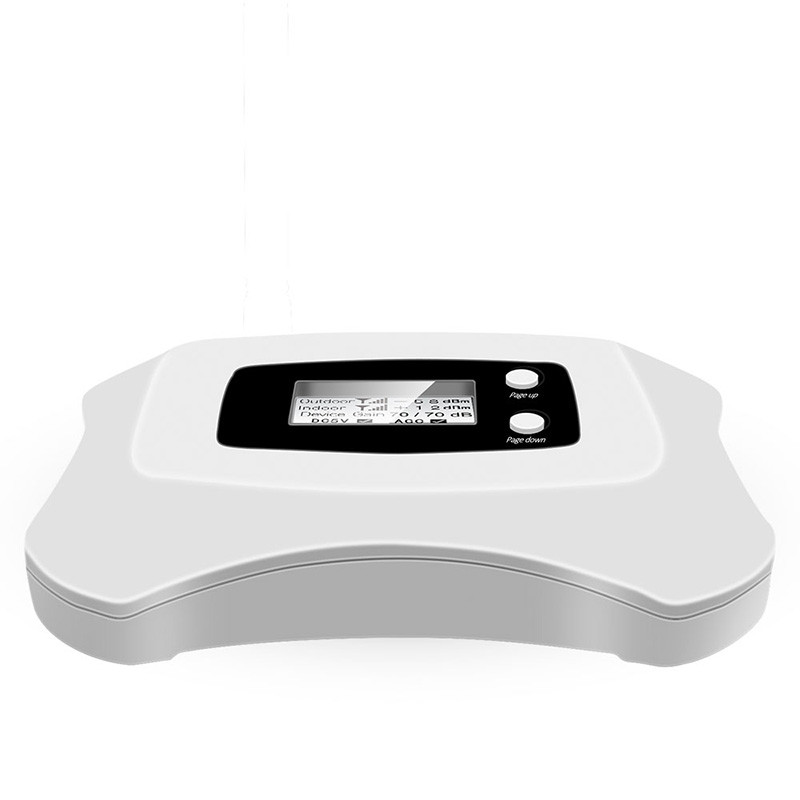

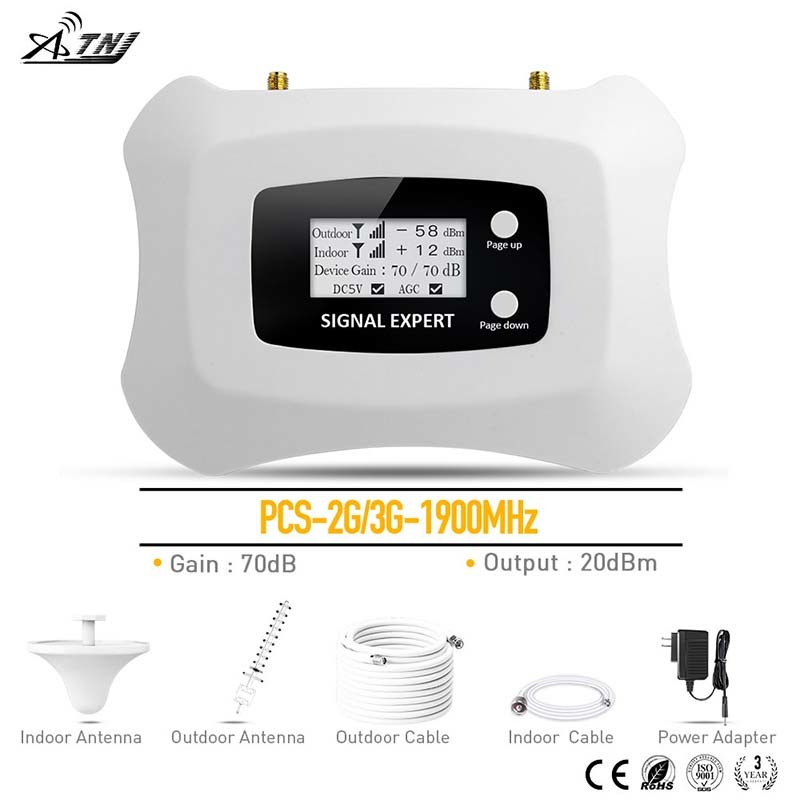

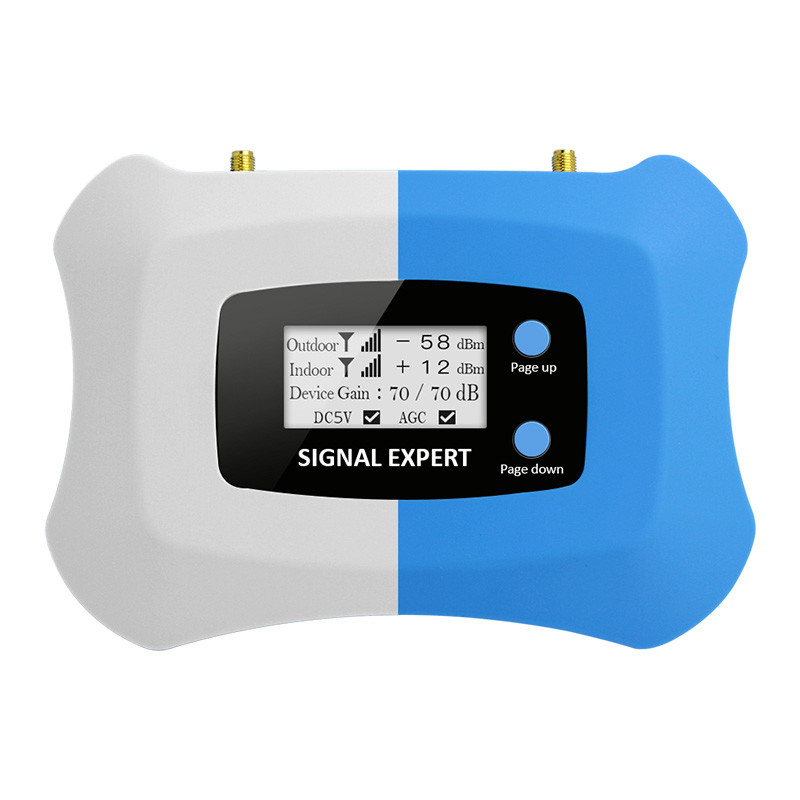

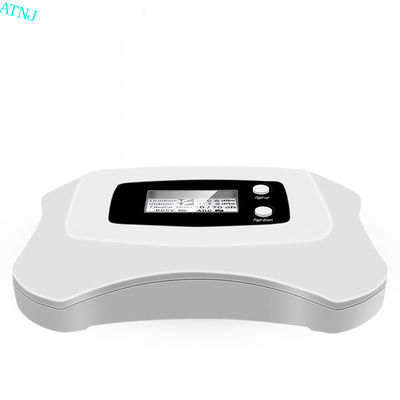

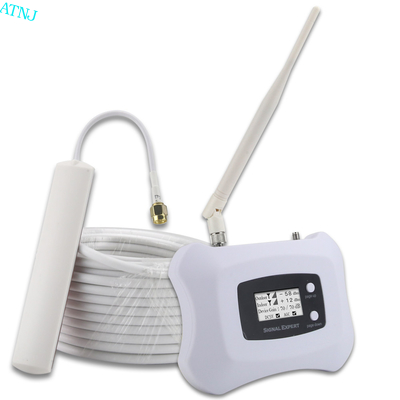

1900MHz Mobile Network Booster 70dB Gain Cell Phone Signal Repeater
PCS Mobile Signal Booster Amplifier 1900MHz Cell Telephone Signal Repeater
Indoor Single Band Signal Repeater (Signal Booster) series is an ideal solution for one wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Do not dismantle machine, maintain or displace accessories by yourself, because in this way, the equipment may be damaged or even get an electric shock.
Technical Specifications
Specifications |
Parameters |
|
Frequency Range (Customers to Choose) |
Uplink |
1850-1910MHz |
Downlink |
1930-1990MHz |
|
Frequency Bandwidth |
60MHz |
|
Gain |
70dB |
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
Auto Gain Control |
20dB Min. |
|
Output Power(Customers to Choose) |
20dBm |
|
Spurious Emission |
≤ -15dBm/30kHz |
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
In-band Ripple |
≤ 3dB |
|
VSWR |
<=2 |
|
I/O Impedance |
50 Ω |
|
Noise Figure |
≤ 5dB |
|
System Delay |
≤ 5μs |
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
Dimensions |
165*130*40 (mm) |
|
Weight |
≤0.8 kg(Net) |
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
Trademark |
ATNJ |
Further detail pls click here for downloading the products specification:
Single band PCS 1900MHz RF Repeater.pdf
After- Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.Country of Origin
Product Description
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
|
