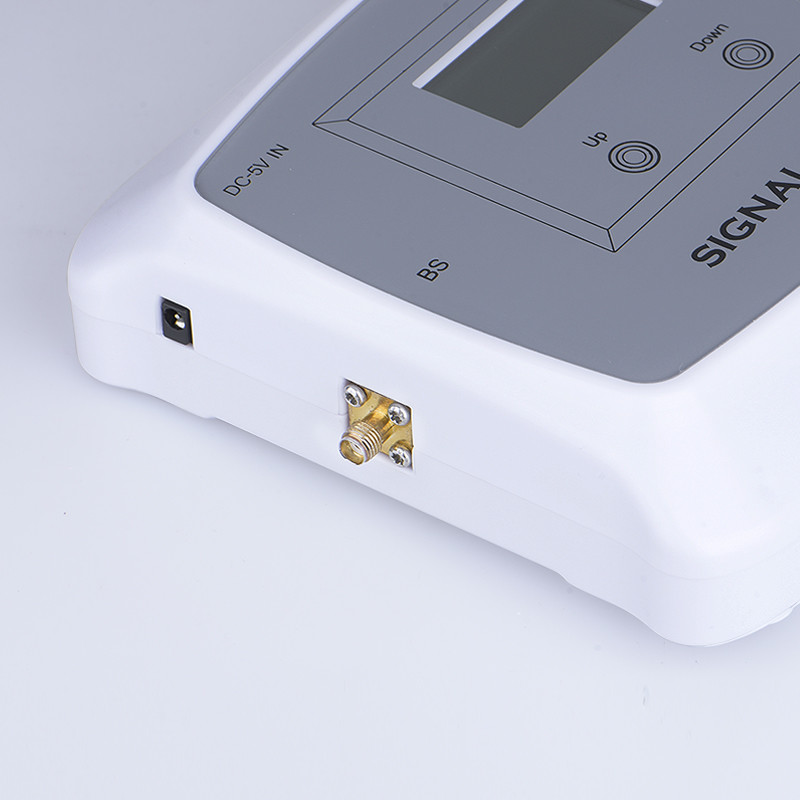

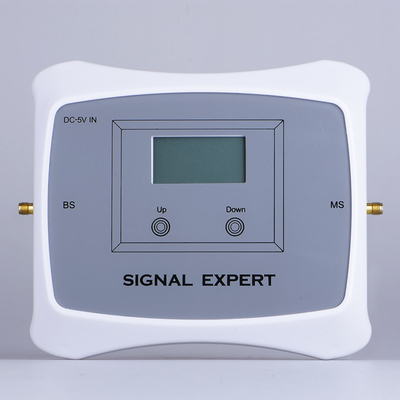

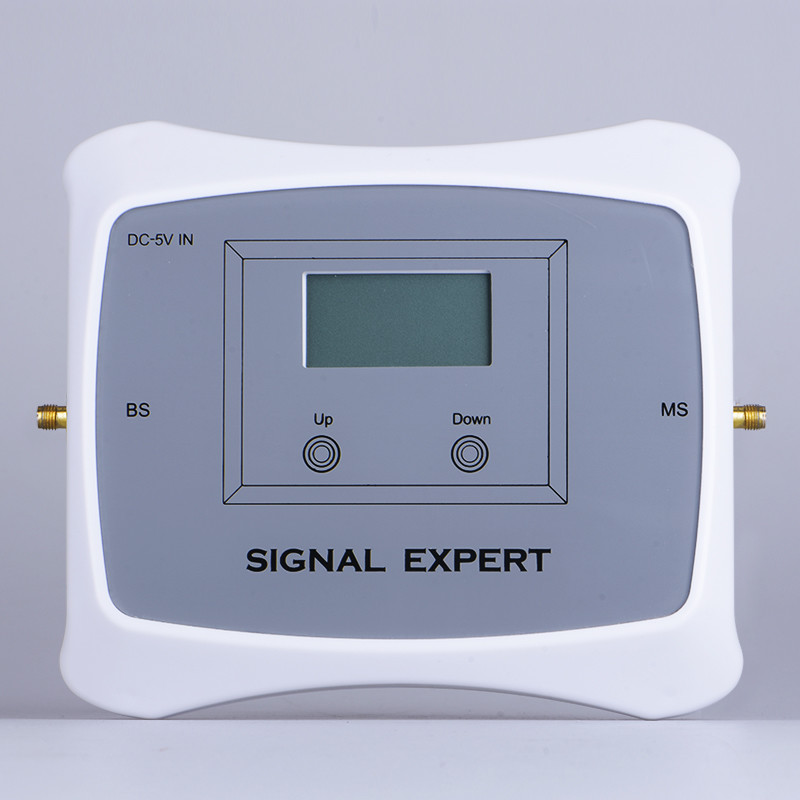

2G 3G 4G Dual Band Repeater 850MHz 1700MHz CDMA AWS Amplifier
| 850MHz Frequency Range: | 824-849MHz / 869-894MHz | 1700MHz Frequency Range: | 1710-1755MHz / 2110-2155MHz |
| Gain: | 70dB | Output power: | 17-20dBm |
| Color: | Grey Or Customized | RF Connect Type: | SMA/Female |
| Packing size: | 52x21x16cm | Products type: | Signal Amplifier, 4g Signal Booster Mf8518 |
| High Light: | 850MHz Dual Band Repeater,1700MHz Dual Band Repeater,1700MHz Mobile Phone Signal Repeater |
||
2G 3G 4G Dual Band Repeater 850MHz 1700MHz CDMA AWS Amplifier
Dual Band Repeater 2G 3G 4G Signal Booster 850 / 1700MHz CDMA AWS Amplifier
Factory High Quality Dual Band Repeater 2G 3G 4G Signal Booster 850 / 1700MHz Amplifier
Product Description
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
824-849MHz, 1710-1755MHz |
|
Downlink |
869-894MHz, 2110-2155MHz |
|
|
Frequency Bandwidth |
25MHz&45MHz |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Warranty |
3 years |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
850+1700MHz 006 mobile signal repeater.pdf
We are manufacturer, and have our own factory.
FAQ:
Q1: Are you trading company or manufacturer ? Could I use our own logo and label?
A: We are factory, with trading service. We provide OEM/OEM service.
Q2: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
Q3: How many square meters can be covered?
A: For different models, the covered square meters are different.
Q4: What is your warranty time?
A: We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Q5: Please feel free to contact us if any other questions.
-
