Product Details:
|
| 850MHz Range: | 824-849MHz/869-894MHz | 2100MHz Range: | 1920-1980MHz/2110-2170MHz |
|---|---|---|---|
| Gain: | 80dB | Color: | Grey ,Customized |
| Output Power: | 23-27dbm | Coverage: | 100~500sqm |
| Connector: | N-Female Connector | Products Name: | Signal Repeater |
| Highlight: | ISO Dual Band Signal Booster,2100MHz Dual Band Signal Booster,ODM 3G Signal Booster |
||

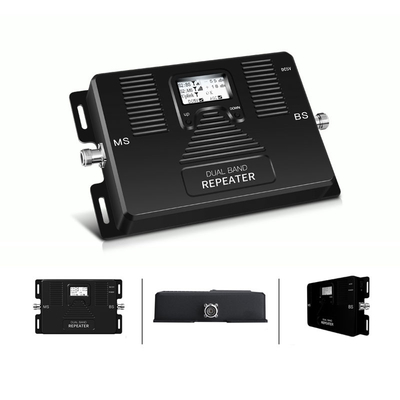

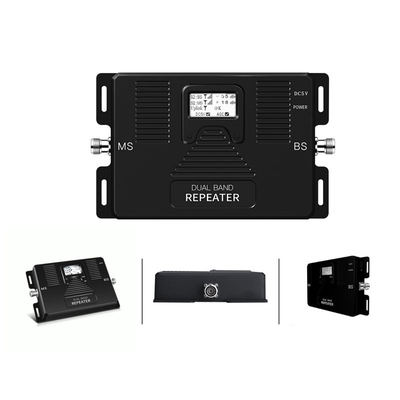

Gain 70dB 4G LTE Booster 850MHz 2100MHz Dual Band Signal Repeater
Dual Band Metel Booster 850 / 2100MHz Cellular 2G 3G 4G LTE Signal Repeater Amplifier
ATNJ RF repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data
Technical Specifications
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 824-849MHz,1920-1980MHz |
| Downlink | 869-894MHz, 2110-2170MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 25MHz&60MHz | |
| Gain | 70dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 20dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 3dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | N(Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Dimensions | 165*130*40 (mm) | |
| Weight | ≤0.8 kg(Net) | |
| Alarm Monitoring System | Alarm for uplink self-oscillation | |
| Indication LED | Power supply | |
Further detail pls click here for downloading the products specification:
850+2100MHz A032 mobile signal repeater.pdf
Selling Point:
① Intelligent to guide the installation with LCD .②Real time display the signal strength .
Automatic dormancy when no user make the calling .
Product Description
Company Instroduction:
Shenzhen ATNJ Communication Technology Company was founded in Nanshan District, Shenzhen in 2010 with over 900sqm factory. ATNJ focuses on the production and development of micro power signal booster, wireless signal repeater, Indoor Signal Distribution System and antenna series. With professional engineers, workers and with senior management personnel, the group maintainshigh-speed development.
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/ODM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Please feel free to contact us if there are any other questions.
