| Brand Name: | ATNJ |
| Model Number: | AS-G3 |
| MOQ: | 5Pcs |
| Price: | USD+40---49+kit |
| Packaging Details: | Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
2G 3G Voice 900MHz GSM Signal Repeater Amplifier IP40 Protection
Signal Booster Repeater 900MHz GSM Cell Phone Amplifier
Product Detail:
1, Intelligent to guide the installation with LCD.
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling.
4, Automatic alarm when installation mistake and provide the according solution.
5, Automatic adjust the system gain to avoid the repeater self-excitation.
6, initiative reminding when the device was damaged.
|
Single Band Repeater with AGC/MGC |
||||
|
Model |
AS-G3 |
|||
|
Frenquecy Range |
UplinK:890~915MHz Downlink:935~960MHz |
|||
|
Working System |
GSM 900MHz |
|||
|
Gain |
70dB |
|||
|
Device Output Power |
17-20dBm |
|||
|
Bandwidth |
Wide Band |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC:90~265V; 50/60Hz DC:9V 3A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
SMA Female |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP40 |
|||
|
LCD Intelligent Guide |
Done |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
GSM 900MHz B07 Signal Repeater.pdf

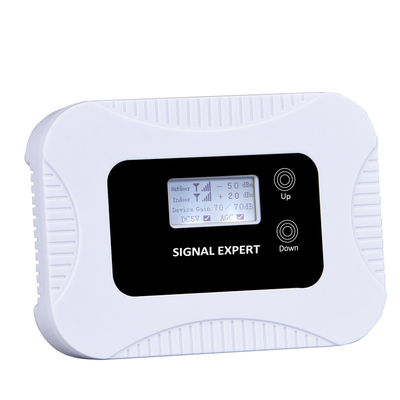

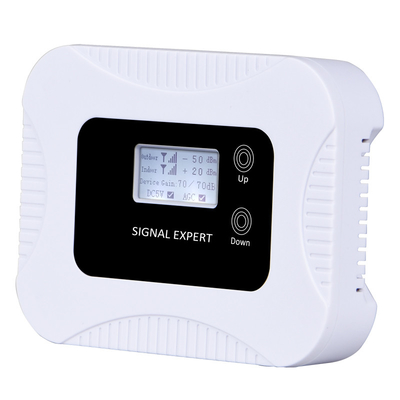

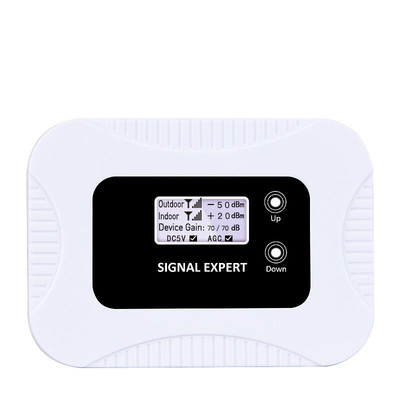

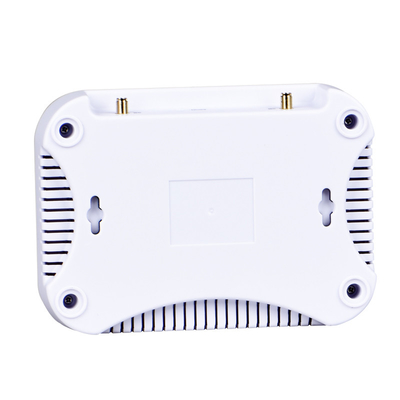

Product Pictures
FAQ
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3. What is our Shipping & Trade terms ?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Warranty and Certificates ?
Our warranty is 12 months .
We have CE, ROHS, CCC certificates .
5. What is your MOQ ?
1pc sample test is welcomed .
6.How to install a mobile signal booster?
Though the configuration of some models can differ, the general principles of installation are always the same. One antenna should be placed outdoors. The best location is on the roof. The second antenna and the booster box should be installed indoors. It is important to ensure the necessary vertical distance between two antennas. All the elements should be connected with coaxial cables. You will find all the precise instructions in the User’s manual that you will get together with your booster. It’s important to note that we sell only full kits, which means that you do not need to buy anything additional.
|
