ATNJ Dual Band Repeater Multi-Network Signal Solution for Improved Coverage

ATNJ Dual Band Repeater Multi-Network Signal Solution for Improved Coverage

Brand Name:	ATNJ
Model Number:	JS-DB900/1800P
MOQ:	5Pcs
Price:	USD+70---85+kit
Payment Terms:	T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability:	1000+unit+per day.

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS，CCC，TUV,BV， ISO

Document:

900+1800MHz 006 mobile sign...er.pdf

Band8 900MHz Frequency Range:

890-915MHz / 935-960MHz

Band3 1800MHz Frequency Range:

1710-1785MHz / 1805-1880MHz

Products Type:

GSM Signal Repeater

Color:

Grey And Customized

AGC Intelligent Function:

Done,31dB @ 1dB/ Step

ALC Intelligent Function:

Done

MGC:

Done

Packing Size:

52x21x16cm

Packaging Details:

Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Supply Ability:

1000+unit+per day.

Highlight:

31dB Signal Booster Amplifier

Signal Booster Amplifier 1800MHz

GSM Signal Booster Amplifier

Product Description

ATNJ Dual band 900/1800MHz mobile signal repeater

ATNJ GSM repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data

communication, aiming to provide a more cost-effective solution for signal. Our repeater is easy to install and maintain,

which could help customer get fast solution.

SPECIFICATIONS		PARAMETERS
Frequency Range		GSM 900MHz	890-915MHz/935-960MHz
		DCS 1800MHz	1710-1785MHz/1805-1880MHz
Band Width		GSM 900MHz	25MHz
		DCS 1800MHz	75MHz
Gain		68±2dB
Automatic Gain Control		31dB
MGC (Step Attenuation)		31dB@ 1dB/Step
Output Power		23dBm
Spurious Emission	9 kHz -150 kHz/1kHz	≤-36dBm @1kHz
	150 kHz - 30 MHz/10kHz	≤-36dBm@10kHz
	30 MHz - 1 GHz/100kHz	≤-36dBm@100kHz
	1 GHz- 12.75 GHz/1MHz	≤-30dBm@1kHz
ACPR		Uplink Fully comply with 3GPP 36.106
		Downlink Fully comply with 3GPP 36.106
Unwanted emissions		Fully comply with 3GPP 36.106
VSWR		≤2
Ripple	GSM 900MHz	≤5dB
	UMTS 2100MHz	≤5dB
Noise Figure		≤9dB
Delay		≤3μs
I/O Impedance		50Q
RF Connector(Customers to Choose)		SMA-Type (Female)
Operating Temperature		-25°~+55°
Power Supply		DC 5V3A
Power consumption		≤15W
Environment Conditions		IP43
Humidity		≤90%
Weight		0.35kg
Size		145×165×38mm

Further detail pls click here for downloading the products specification:

900+1800MHz 006 mobile signal repeater.pdf

00:03

03:16

Product Usage

How It Works


Wireless network signal travels through the air in the form of waves. The outdoor antenna is designed to receive the good signal from the outdoor and transmit it to the indoor booster. The booster amplifies the signal based on its frequency and emits the amplified signal through the indoor antenna making it available for use.

Selling Point

①Intelligent to guide the installation with LCD .②Real time display the signal strength .

Automatic dormancy when no user make the calling .③Automatic alarm when installation mistake and provide the according solution .

④Automatic adjust the system gain to avoid the repeater self-excitation .

⑤Initiative reminding when the device was damaged .

⑥Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .

Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .

⑦With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

Packing&Shipping

Packing

●Usually we provide neutral packing for goods to oversea.

Shipping

●We will send your parcel as soon as possible after payment confirmed within 48 hours. ●Please provide your correct address,full name,and zip code.

●We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not

including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.

●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like Fedex, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.

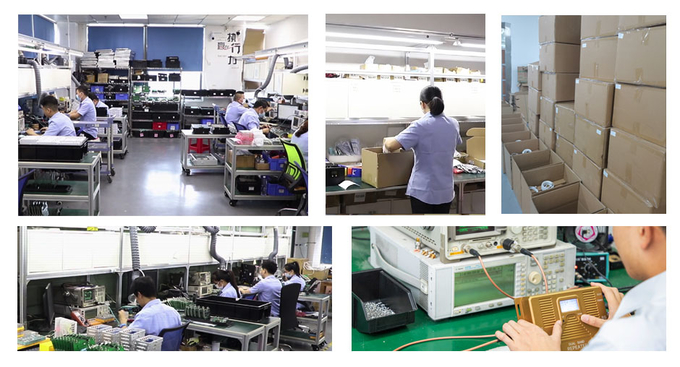

Company Introduction

Shenzhen ATNJ Communication Technology Company was founded in Nanshan District, Shenzhen in 2010 with over 900sqm factory. ATNJ focuses on the production and development of micro power signal booster, wireless signal repeater, Indoor Signal Distribution System and antenna series. With professional engineers, workers and with senior management personnel, the group maintains high-speed development. Meanwhile, the Up-to-date facilities and technology end sure the business long-term development. With the rapid development of the company, ATNJ moved to Guangming District, Shenzhen in 2016 with a bigger factory over 2800sqm and over 50 workers.
In its stage of rapid development, ATNJ advertised its products by attending trade exhibitions oversea, cooperating

with many platforms like Made-in-China, Alibaba, Global Sources and so on. Especially, ATNJ attended Mobile World Congress in Spain, which made ATNJ well known in the world and through MWC, ATNJ started to cooperate with many oversea companies.
Nowadays, ATNJ not only produces and develops high-quality home use signal booster and high power wireless repeater, but also expands its

business scope to cooperate with signal operators, provide signal coverage solution for large area like residential area, office building, supermarket, underground garage and rural areas.
With the populization of signal repeater, users have more requirements

for the functions of the signal repeater. In 2020, ATNJ developed smarter digital module signal repeater with WIFI connection monitoring function, with which users could control the signal repeater and watch the siganl repeater working situation with their mobile phone. Signal repeaters with WAN connection/Bluetooth connection/USB connection were developed at the same time.
In 2021,5G signal booster was developed and put into Chinese market successfully. In addition, ATNJ starts to upgrade the signal booster

from analog module to digital module, with which the products (micro power signal booster, wireless signal repeater, Indoor Signal Distribution System) could be operated and controlled with WIFI connection, WAN port, USB port and SIM card.
What‘s more, more functions are equipped in our products, like band selective, sub bands, OLED screen display, MGC.With the progress of science and technology of ATNJ, easier use and more functional signal boosters have being developed.
