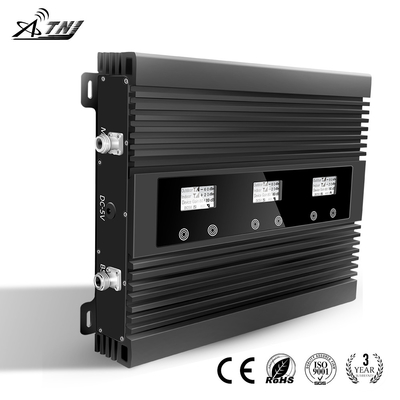

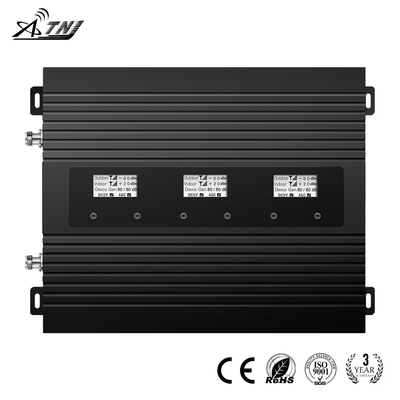

LTE800 GSM LTE2600 Tri Band Repeater
| Frequency Range: | Band20 800MHz+Band8 900MHz+Band 7 2600MHz | Device Gain: | 80±2dB |
| Output power: | 27±3dBm | Color: | Black |
| Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) | Inter-Modulation Attenuation ACPR: | ≤ -40dBc / 30kHz (measured Under Rated Output Power) |
| Packing Weight:: | 10kg | Packing size: | 48x46x18cm |
| High Light: | GSM 4G Tri Band Repeater,TUV 2600MHz Tri Band Repeater,ROHS 800MHz GSM 4G Booster |
||
| Frequency Range | Band20 800MHz+Band8 900MHz+Band 7 2600MHz |
| Device Gain | 80±2dB |
| Output power | 27±3dBm |
| Color | Black |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) |
| Packing Weight | 10kg |
| Packing size | 48x46x18cm |
800/900/2600MHz Tri Band Signal Repeater GSM Amplifier 4G Booster Tri LCD Display
- Improves LTE 800, GSM 900 and FDD LTE 2600 simultaneously
- Supports more than 20 cell phones simultaneously
- Compatible with operators using LTE800, GSM900 or FDD LTE2600 frequency bands
- Complete installation kit included
- LED signal status indicators
- 1-year manufacturer warranty
| Frequency Range (Uplink) | 832-862MHz, 890-915MHz, 2500-2570MHz |
| Frequency Range (Downlink) | 791-821MHz, 935-960MHz, 2620-2690MHz |
| Frequency Bandwidth (3dB Bandwidth) | 30MHz, 25MHz, 70MHz |
| Gain | 80dB |
| Automatic Gain Control | 31dB @ 1dB/Step, 20dB Min. |
| Output Power | 27dBm |
| Spurious Emission | ≤ -15dBm/30kHz (9kHz~1GHz: ≤ -36dBm/30kHz, 1GHz~12.75GHz: ≤ -30dBm/30kHz) |
| In-band Ripple | ≤ 5dB |
| VSWR | ≤ 2 |
| I/O Impedance | 50 Ω |
| Noise Figure | ≤ 5dB |
| System Delay | ≤ 5μs |
| RF Connector | N-Type (Female) |
| Operating Temperature | -10°C to +55°C (Operation), -20°C to +60°C (Storage) |
| Weight | ≤8 kg (Net) |
Model No: AS-800/900/2600/H
Network Support: GSM 2G + LTE800 4G + LTE2600 4G
Gain: 80dB
Connector Type: N-female connector
- Mount outdoor antenna on rooftop pointing toward signal tower
- Connect outdoor antenna to "outdoor" port on repeater
- Connect indoor antenna(s) to "indoor" port on repeater
- Connect power adapter to AC power socket
- Underground areas: basements, parking lots, tunnels
- Signal-shielded spaces: offices, supermarkets, cinemas, hotels
- Remote locations distant from cellular towers
A: Yes, we have CE, ISO, ROHS and CCC certification.
A: Normally our device can be used 5-10 years.
A: Coverage area varies by model.
A: Yes, as long as you can find a good signal source.
A: Specifications vary by model. Contact us for specific details.
-
AIt works great, the frequency can be adjusted to Vodafone correctly,and LTE speed goes fast.
-
HAll ATNJ products are very well made at a reasonable price. Our clients are delighted with their products and their service and attention is phenomenal. Really recommend them
-
ALivraison dans un délai acceptable par voie aérienne. Qualité : j'attends d'installer totalement l'appareil.
