ATNJ Smart Display 2G 3G 4G Signal Booster with 70dB Gain & WiFi Monitoring

Basic Properties
Place of Origin: Guangdong, China
Brand Name: ATNJ
Model Number: AS-G3
Trading Properties
Price: $49/pieces 1-99 pieces
Payment Terms: T/T,Western Union,Paypal,Bank transfering
Tags

Mobile Signal Boosters

LTE Cell Signal Booster

Cellular Signal Booster
Specifications
Type: 4G Signal Booster Network: GPRS, 4g, GSM, 3G
Frequency: GSM/ DCS/CDMA/WCDMA Gain: 65dB
AGC ALC Intelligent Function: Done Max. Output power: 15~27dBM
Coverage: 100-300sqm Weight: Approx 0.5kg
Size: 150*115*27 Application: Home,office, Apartments,basement,shopping Mall, Parking ...ect.
Material: ABS Plastic Warranty: 3 Years
High Light:

4G signal booster with WiFi monitoring

,

Smart display signal booster 70dB gain

,

2G 3G 4G mobile signal amplifier
Product Description
ATNJ Smart Display 2G 3G 4G Signal Booster with 70dB Gain & WiFi Monitoring
Product Attributes
Attribute Value
Type 4G signal booster
Network GPRS, 4g, GSM, 3G
Frequency GSM/DCS/CDMA/WCDMA
Gain 65dB
AGC ALC Intelligent Function Done
Max. Output power 15~27dBM
Coverage 100-300sqm
Weight Approx 0.5kg
Size 150*115*27
Application Home, office, apartments, basement, shopping mall, parking, etc.
Material ABS Plastic
Warranty 3 Years
Technical Specifications
ATNJ Smart Display Signal Booster technical diagram
Frequency Range (Customers to Choose)
Uplink 880-915MHz
Downlink 925-960MHz
Frequency Bandwidth (3dB Bandwidth) 35MHz
Gain 70dB
Automatic gain control (Step Attenuation) 31dB @ 1dB/ Step
Auto Gain Control 20dB Min.
Output Power(Customers to Choose) 20dBm
Spurious Emission ≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR ≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple ≤ 3dB
VSWR <=2
I/O Impedance 50 Ω
Noise Figure ≤ 5dB
System Delay ≤ 5μs
RF Connector(Customers to Choose) SMA (Female)
Operating Temperature Operation: -10°C ~ +55°C / Storage: -20°C ~ +60°C
Power Supply AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Dimensions 165*130*40 (mm)
Weight ≤0.8 kg(Net)
Alarm Monitoring System Alarm for uplink self-oscillation
Indication LED Power supply

2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100-300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for Choice.

Product Features

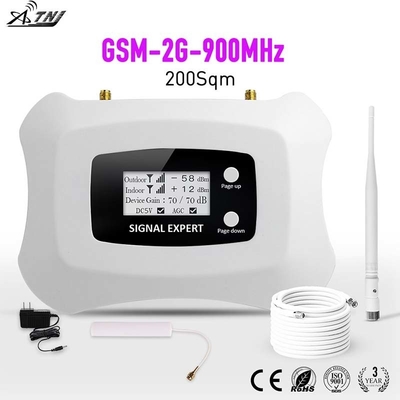

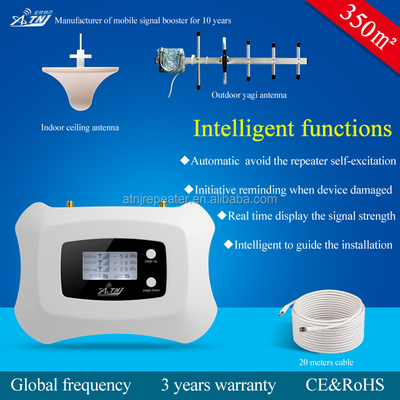

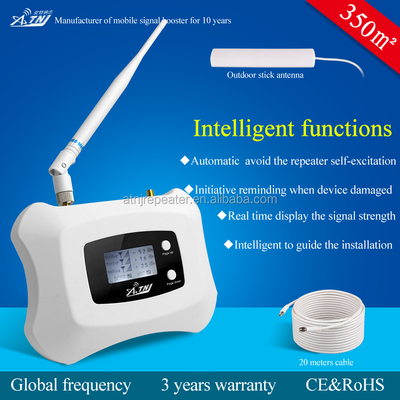

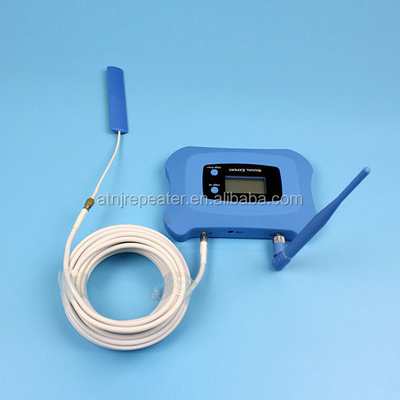

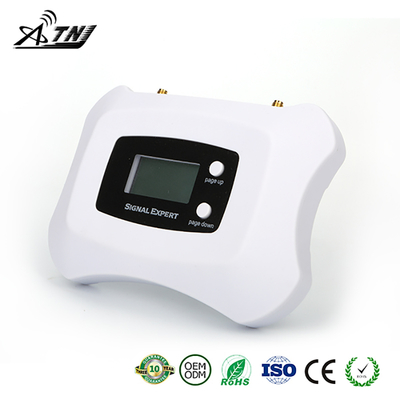

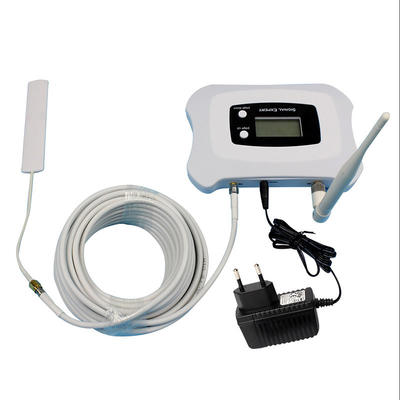

ATNJ Smart Display Signal Booster front view ATNJ Smart Display Signal Booster side view ATNJ Smart Display Signal Booster display close-up ATNJ Smart Display Signal Booster installation diagram ATNJ Smart Display Signal Booster components ATNJ Smart Display Signal Booster technical specifications ATNJ Smart Display Signal Booster features diagram ATNJ Smart Display Signal Booster connectivity options ATNJ Smart Display Signal Booster antenna connections ATNJ Smart Display Signal Booster power supply ATNJ Smart Display Signal Booster packaging ATNJ Smart Display Signal Booster accessories ATNJ Smart Display Signal Booster installation guide ATNJ Smart Display Signal Booster warranty information ATNJ Smart Display Signal Booster in use ATNJ Smart Display Signal Booster performance graph
  • Intelligent to guide the installation with LCD
  • Real time display the signal strength
  • Automatic dormancy when no user make the calling
  • Automatic alarm when installation mistake and provide the according solution
  • Automatic adjust the system gain to avoid the repeater self-excitation
  • Initiative reminding when the device was damaged
  • Supports 10MHz from 0.2 to 10MHz bandwidth adjusted (Customized)
Frequently Asked Questions
1. Are you trading company or manufacturer? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?

Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?

Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?

We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
