2G 4G 5G High Power 20Watt DCS 1800MHz Mobile Singal Booster/Amplifier Single Band Customize Repeater
With ALC AGC Function
Can control gain automatically. Avoid base station interference
Support customization:
(Band 5) 850MHz -- Uplink frequency : 824-849MHz / Downlink frequency : 869-894MHz
(Band 8) 900MHz -- Uplink frequency : 890-915MHz / Downlink frequency : 935-960MHz
(Band 3) 1800MHz -- Uplink frequency : 1710-1785MHz / Downlink frequency : 1805-1880MHz
(Band 1) 2100MHz -- Uplink frequency : 1920 - 1980MHz / Downlink frequency : 2110 - 2170MHz
(Band 7) 2600MHz -- Uplink frequency : 2500-2570MHz / Downlink frequency : 2620-2670MHz
Single Band Repeater with AGC/MGC | ||||
Device Model | AT-20W-D | |||
850MHz Frequency Range | UplinK: 1710-1785MHz Downlink: 1805-1880MHz | |||
Gain | UL: 95±3dB DL: 95±3dB | |||
Device Output Power | UL: 33±1.5dBm DL: 43±1.5dBm | |||
Bandwidth | 75MHz | |||
Noise Figure @ Max.Gain | <6dB | |||
V.S.W.R | <1.8dB | |||
Group Delay | ≤ 1µs | |||
Automatic Gain Control (UL/DL) |
≥30dB |
|||
Manual Gain Control (UL/DL) |
≥30dB@1dB/Step |
|||
Gain Flatness |
<6dB(p - p) |
|||
ACPR |
≤-36dBc |
|||
EVM (at Max. Output power) |
≤8% |
|||
Frequency Stability |
≤±0.01ppm |
|||
Spurious Emission |
Fully comply with 3GPP TS36.106 |
|||
I/O Impedance |
50Ω |
|||
Power Supply |
AC90V~ 240V |
|||
Power Comsumption | ≤ 150W | |||
Mechanical Specification | ||||
RF Connector | N/F | |||
Dimension |
385×307×204mm |
|||
Net Weight | ≤ 15 kg | |||
Environment Conditions | IP65 | |||
Origin | Shenzhen | |||
Operating Temperature | -10°C to +55°C | |||
Humidity |
≤65% |
Selling Point
The Signal Repeater can provide different detailed solutions with the following range of adaptation:
① Expand the service scope and eliminate the blind coverage areas such as signal blind areas formed by obstructions such as alpine buildings and trees.
② Enhance the field strength in the suburbs and expand the coverage area of suburban stations.
③ Set up along the highway to enhance the coverage efficiency.
④Solve indoor coverage, such as signal blind area in large buildings, underground mall, subway, tunnel and other attenuation signal blind area; The signal of the idle base station was directed to the coverage area of the busy base station to realize the busy scattering.
⑤Other areas that cannot be directly penetrated by signals due to shielding, such as tunnel pipe gallery and other underground operation scenes.
Band Options: Single Band, Dual Band, Tri Band, Four Band, Free combinations

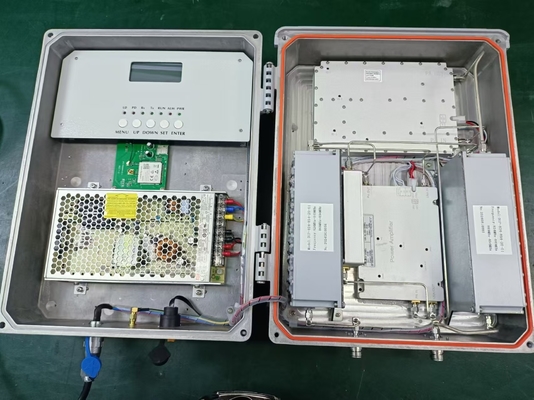

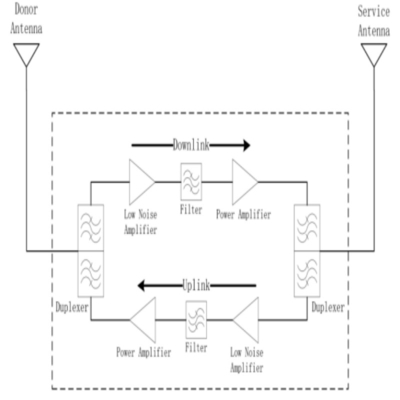

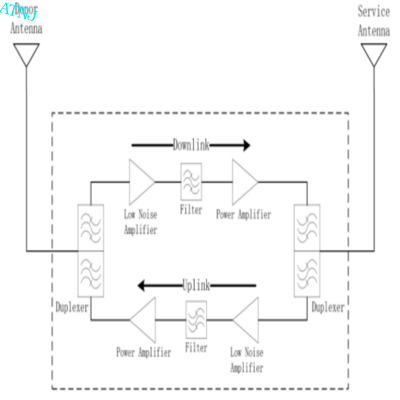

High-power mobile repeater is a kind of linear radio frequency (RF) amplification and relay equipment working in full-duplex condition. It is composed of high performance duplex, low noise amplifier, electrically modulated attenuator, linear power amplifier and so on. The donor antenna receives the signal from the base station, and enters the downlink amplification link from the forward duplector. After filtering and amplifying, the signal is fed into the retransmission antenna from the backward duplector, and then transmitted to the coverage area.
Shipping
●We will send your parcel as soon as possible after payment confirmed within 48 hours.
●Please provide your correct address,full name,and zip code.
●We generally would declare the parcel with lower value to avoid or lessen the Customs Tax.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax and custom clearance.
●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like Fedex, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
FAQ:
1. Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
3. Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
4. Q: How many square meters can be covered?
A: For different models, the covered square meters are different.
5. Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
