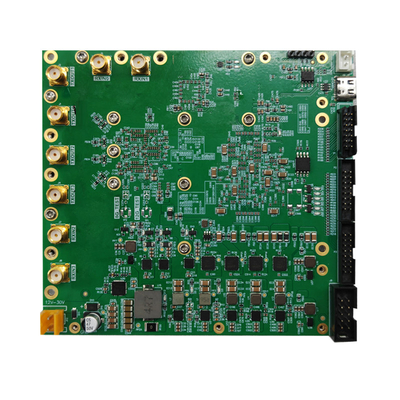

SDR core PCBA board features:
1. SDR platform consisting of FPGA and RF direct acquisition transceiver.
2. 100K logic resources, 424 18*18 multipliers, resource-rich FPGA.
3. 4T4R 14-bit ADC and DAC RF direct sampling transceiver.
4. Working frequency: 400MHz~8000MHz.
5. Large scanning bandwidth, currently supports the maximum sampling bandwidth of 160MHz per channel; It can be designed to support a
maximum sampling bandwidth of 800MHz per channel.
6. 32 bit high-precision frequency control.
7. Each RF channel, input and output have DSA built-in, and the attenuation range is 0~31dB.
8. No LO leakage and I/Q imbalance.
9. Application: public network 3G, 4G, 5G, TDD and FDD mobile communications, signal monitoring systems, other radio radar and detection, private network communication systems, etc.

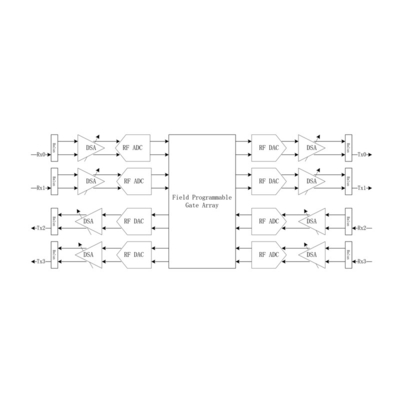

Card Diagram①

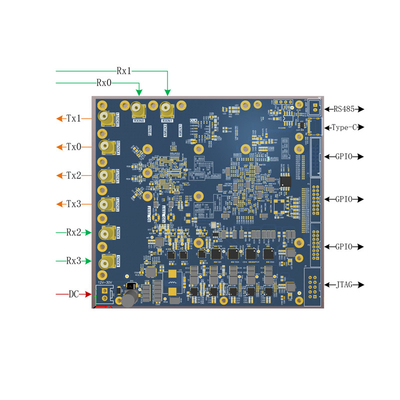

Card Diagram②

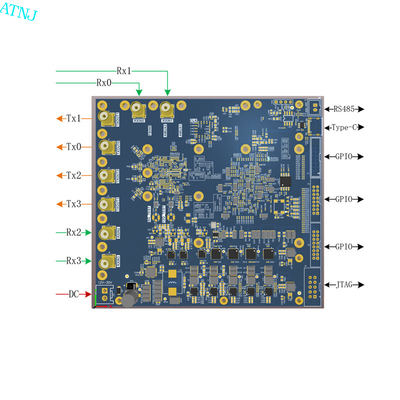

Card Diagram③

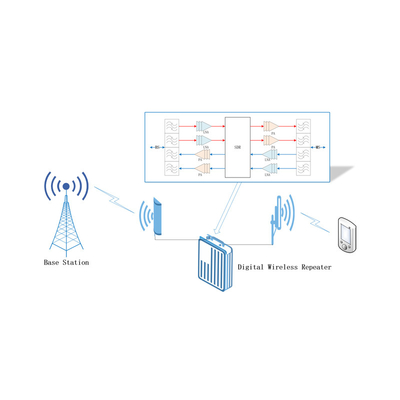

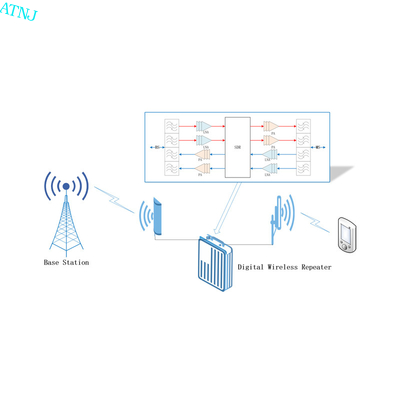

Typical Application
ATNJ Strength & Service
Highly qualified communication technology Engineers. ATNJ brings together a team of engineers with more than ten years of working experience in communication industry, who are engaged in signal booster R&D, design, debugging, testing, and its pre-production to ensure it could comply with International Standards. For the sustainable development of the company, some young engineers are also employed. Because of their hard work, the ATNJ's products can be continuously updated and iterated.
Satisfactory after-sales service. ATNJ provides 3-year warranty for all the main signal repeater, and 3-month warranty for
accessories. Within the warranty period, ATNJ provides free repairment service, and customers only need to pay for the freight.
In addition, within one month after the customer receives the product, ATNJ is responsible for all non-human damage faults.
Contact us and place order now, to have better signal, better life.
FAQ
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are the factory, with good trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. Please feel free to contact us if there are any other questions.
