Product Details
Place of Origin: shenzhen
Brand Name: ATNJ
Certification: CE, RoHs, CCC, ISO9001
Model Number: AS-140-135-W
Document: 140-135-2100MHz Digital sel...nd.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+200---240+pcs
Packaging Details: Neutral standard package 44x44x30cm
Delivery Time: 5-8 works days
Payment Terms: T/T,Paypal,Western Union，Alibaba insurance payment
2100MHz Frequency Range: |
1920-1980MHz; 2110-2170MHz |
Bandwidth: |
60MHz; Supports From 0.2 To 20MHz Bandwidth Adjusted |
Gain: |
UL: 65dB; DL: 70dB |
Output Power(Customers To Choose): |
UL: 15dBm; DL: ≥17dBm |
Dimensions: |
234*230*52mm |
Power Supply: |
AC 100-240V, 50/60Hz |
Color: |
Black , Customized |
Warranty: |
3 Years |
2100MHz Frequency Range: |
1920-1980MHz; 2110-2170MHz |
Bandwidth: |
60MHz; Supports From 0.2 To 20MHz Bandwidth Adjusted |
Gain: |
UL: 65dB; DL: 70dB |
Output Power(Customers To Choose): |
UL: 15dBm; DL: ≥17dBm |
Dimensions: |
234*230*52mm |
Power Supply: |
AC 100-240V, 50/60Hz |
Color: |
Black , Customized |
Warranty: |
3 Years |

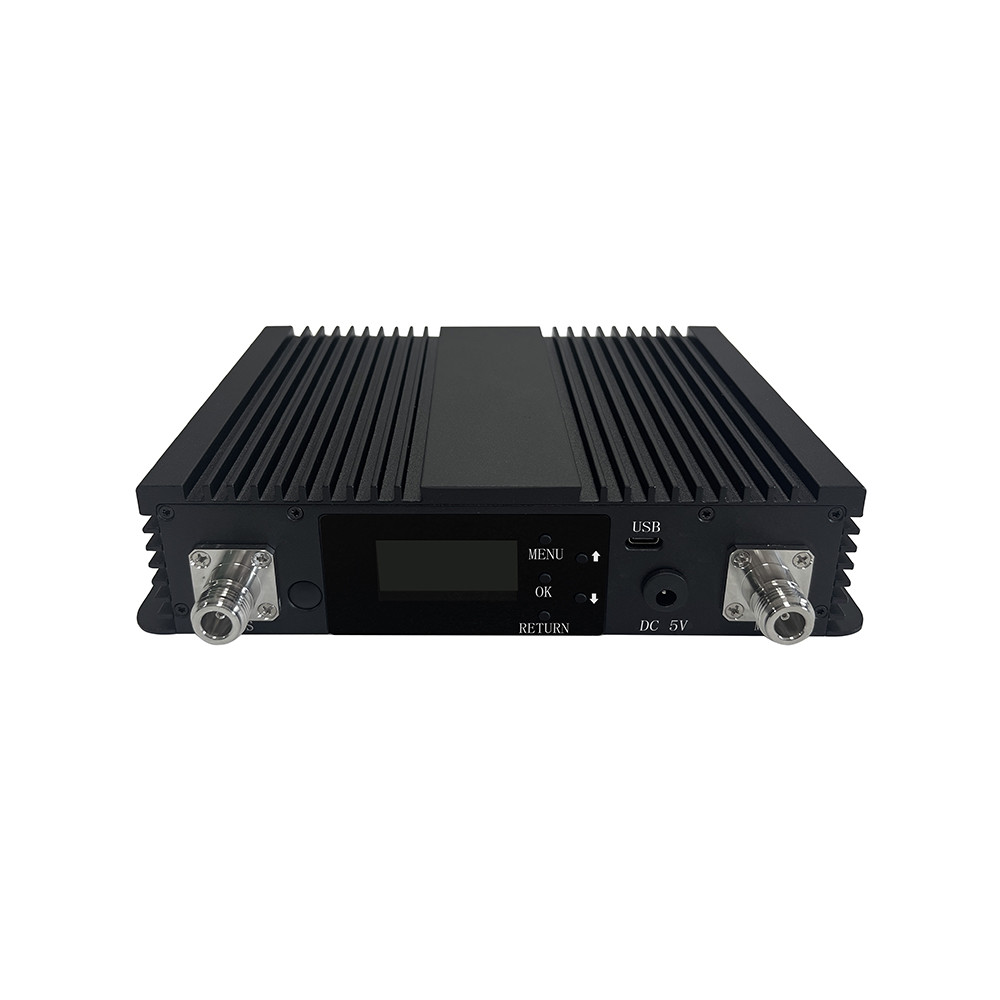

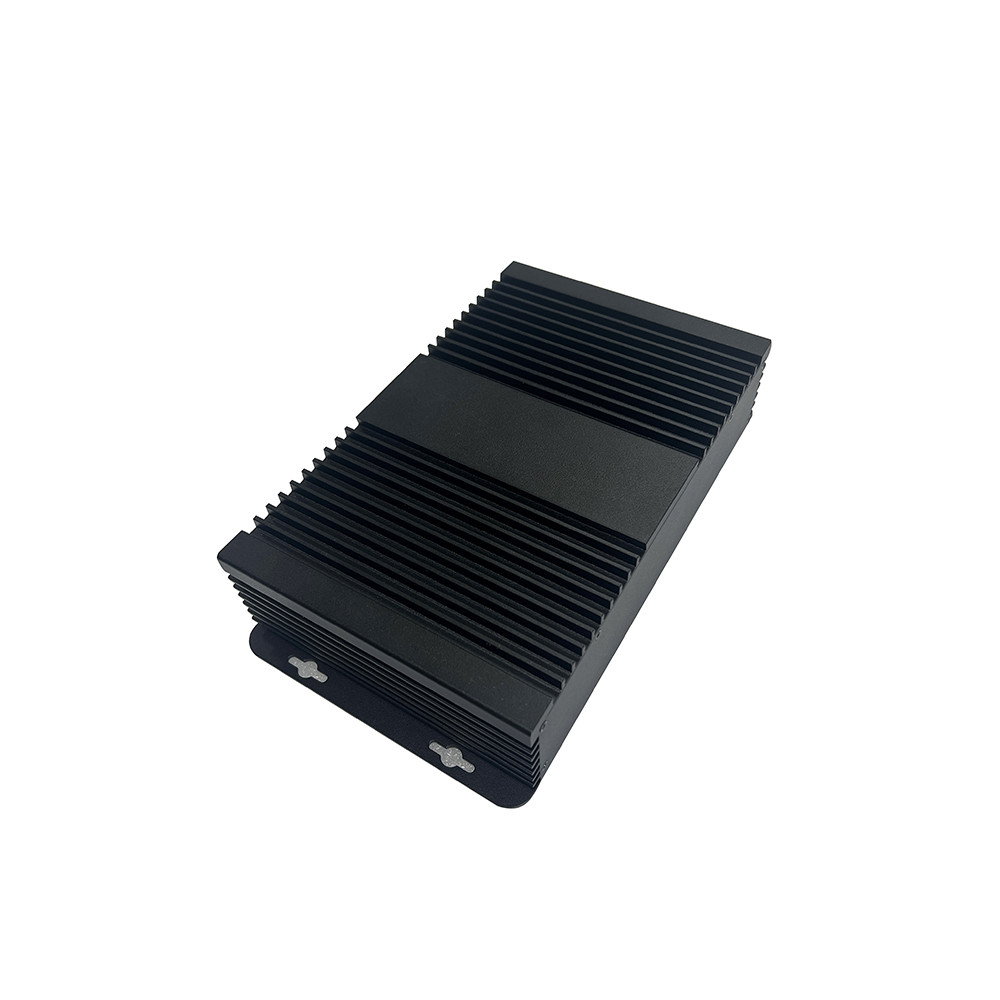

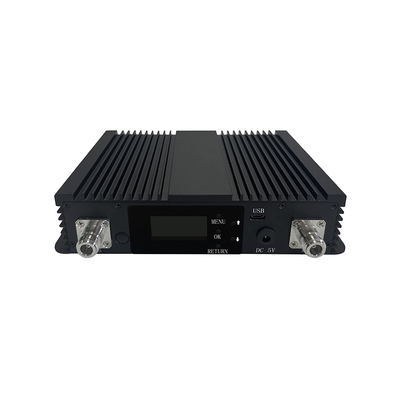

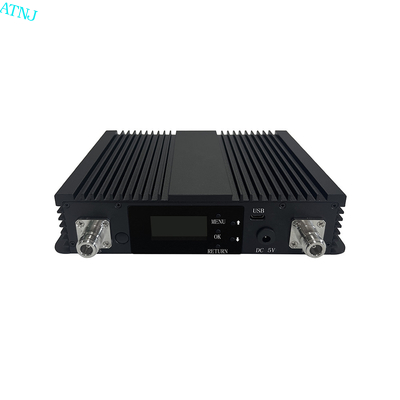

RF repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ RF repeater is easy to install and maintain, which could help signal providers get fast solution.
A repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then re-transmits it via the Indoor repeater System to the weak/blind coverage area. And the mobile signal is also amplified and re-transmitted to the BTS via the opposite direction.
① Intelligent to guide the installation with LCD.
| AS-140-135-W | 2100 MHz | ||||||||||||
| Frequency Range | Uplink | 1920-1980MHz | |||||||||||
| Downlink | 2110-2170MHz | ||||||||||||
| Number of Sub-Bands | 1 Sub-Band | ||||||||||||
| Bandwidth | 60MHz, each Sub-Band support (0.2 - 20 MHz adjustable) | ||||||||||||
| Max Gain | Uplink | 65dBm | |||||||||||
| Downlink | 70dBm | ||||||||||||
| Manual Gain Control | 31 dB in step of 1 dB | ||||||||||||
| Automatic Gain Control | ≧ 20 dB | ||||||||||||
| Gain Flatness | ≦ ±2 dB (peak-to-peak) | ||||||||||||
| Max. Input Power Without Damage | 0 dBm | ||||||||||||
| Output Power | Uplink | 17 ±2dBm | |||||||||||
| Downlink | 20 ±2dBm | ||||||||||||
| Operating band unwanted emissions | Comply with 3GPP | ||||||||||||
| Spurious Emission | 9kHz~1GHz | ≦ -36dBm | |||||||||||
| 1GHz~12.75GHz | ≦ -30dBm | ||||||||||||
| ACPR | ±20MHz | Uplink≦-36dBc/Downlink≦-45dBc | |||||||||||
| ±40MHz | Uplink≦-45dBc/Downlink≦-50dBc | ||||||||||||
| EVM | ≦ 8 | ||||||||||||
| Frequecy Stability | ≦ ±0.01 ppm | ||||||||||||
| Noise Figure | ≦ 8 dB | ||||||||||||
| VSWR | ≦ 2 | ||||||||||||
| Group Delay | ≦ 3 μs | ||||||||||||
| RF Connector | N-Female | ||||||||||||
| Impedance | 50 Ω | ||||||||||||
| Power Supply | Input: AC 100~240 V; Output: DC 5 V/ 5 A | ||||||||||||
| Power Consumption | ≦ 75 W | ||||||||||||
| Dimensions | 234*230*52mm | ||||||||||||
| Weight | ≦ 5 Kg | ||||||||||||
| IP Rating | IP40 | ||||||||||||
| Operating Temperature | -25 ℃ to 55 ℃ | ||||||||||||
| Control & Monitoring |
Local | WIFI/Type-C port | |||||||||||
| Remote | NA | ||||||||||||
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
Product Packaging:
The Band Selective Repeater will be packaged in a sturdy cardboard box with cushioning material to ensure safe transport.
Inside the box, the repeater will be wrapped in bubble wrap and placed in a foam insert to prevent any damage during shipping.
Shipping
●We will send your parcel as soon as posiible after payment confirmed, Within 48 hours for normal,Except weekend and Chinaese holidays.
●Please provide your correct address,full name,and zip code.
●We generally would declare the parcel with lower value to aviod or lessen the Customs Taxs.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax.
●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.
●Three years gaurantee period for our booster,it is ioly 3 months for thr accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
Feedback
● If you are satisfied with our service and product,we would be very appreciated that you put us five stars and positive review. You could also recommend it to people who needs it.Thank you very much.
