Band Selective Repeater
>

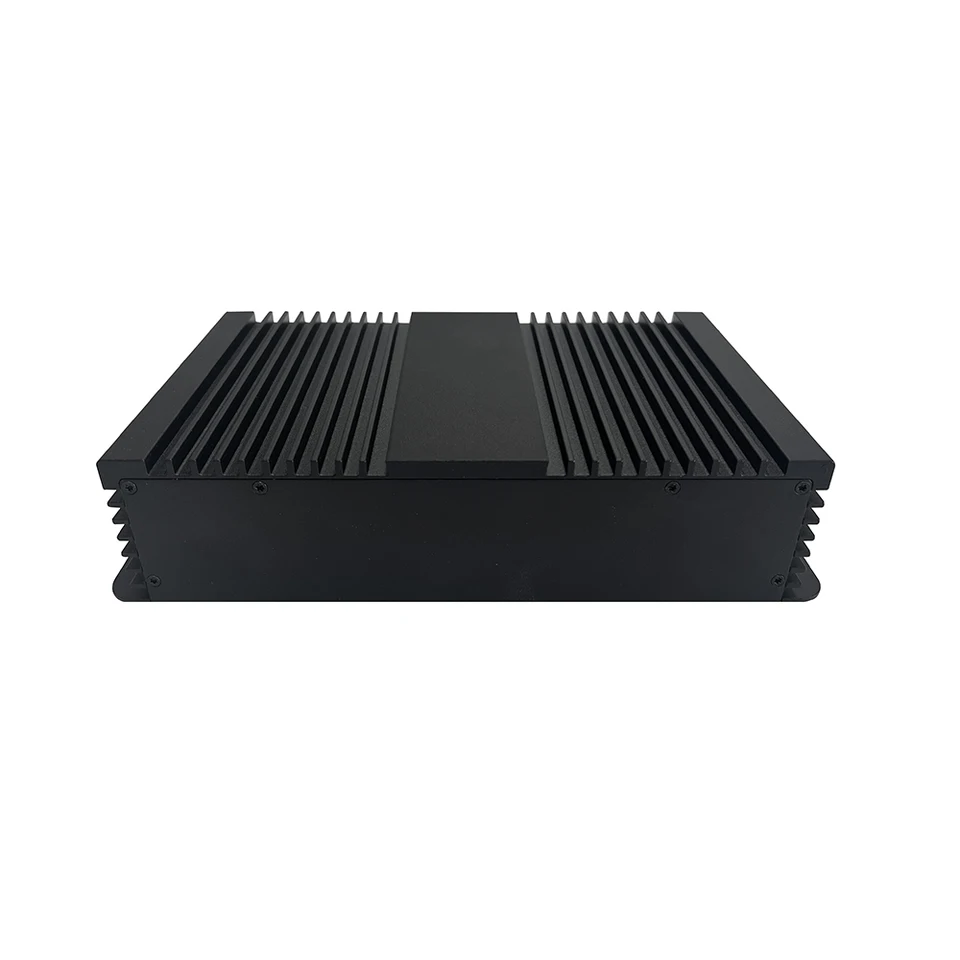

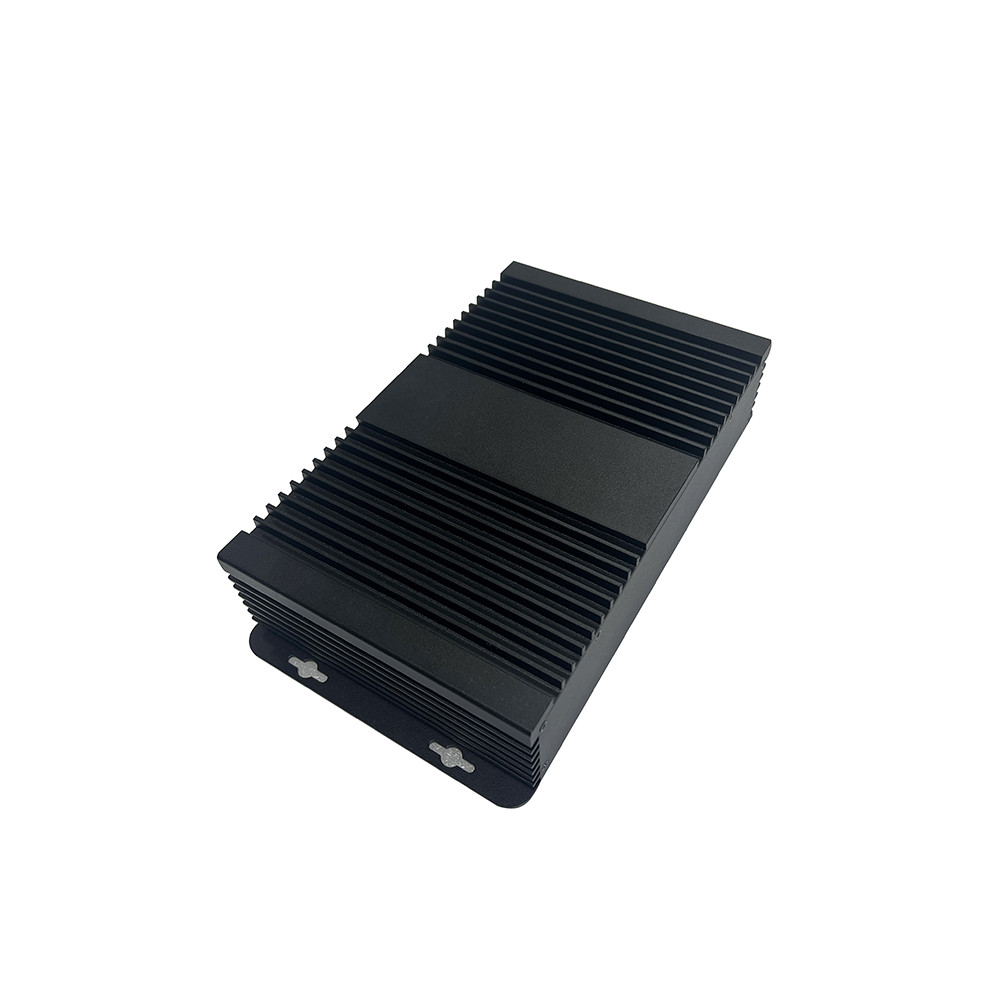

70dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier

70dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier

Brand Name: ATNJ
Model Number: AS-140-135-D
Price: 200-240
Packaging Details: Neutral standard package 44x44x30cm
Payment Terms: T/T,Paypal,Western Union,Alibaba insurance payment
Detail Information
Place of Origin:
shenzhen
Certification:
CE, RoHs, CCC, ISO9001
Frequency Range:
UL: 1710-1785MHz; DL: 1805-1880MHz
Bandwidth:
75MHz; Supports From 0.2 To 20MHz Bandwidth Adjusted
VSWR:
≤2
MGC:
20dB@ 1dB/Step
AGC:
31dB
Size:
234*230*52mm
Power Supply:
AC 100-240V, 50/60Hz
Power Consumption:
≤ 75W
Product Description

Product Description:

The Band Selective Repeater supports from 0.2 to 20MHz bandwidth adjustment, making it an ideal choice for enhancing signal strength in areas with poor connectivity. Additionally, this product comes equipped with an Auto Shut Off feature, providing added convenience and safety.

Band Selective Repeater operates in a temperature range from -10°C to +55°C, ensuring optimal performance in various environments. The device also features a WIFI/Type-C port for easy connectivity and convenient data transfer.

With its advanced technology and exceptional performance, the Band Selective Repeater is a great solution for boosting cellular signals in single-band systems. Whether you're looking to improve your signal strength in your home, office, or other location, this repeater is the ideal choice.



Features:

① Intelligent to guide the installation with LCD.

② Real-time displays the signal strength.
③ Automatic dormancy when no user makes the call.
④ Automatic alarm when installation mistake and provide the appropriate solution.
⑤ Automatic adjust the system gain to avoid the repeater self-excitation.
⑥ Initiative reminding when the device was damaged.
⑦ WIFIMonitor+Control(Customized), NMS(network management system), Function Optional.


Technical Parameters:

SPECIFICATIONS
Parameters
Frequency Range (Customers to Choose)
1800MHz UL: 1710-1785MHz; DL: 1805-1880MHz
Frequency Bandwidth
75MHz; Supports 1 Sub-bands From 0.2 To 20MHz Bandwidth Adjusted
Gain
UL: 65dB DL: 70dB
Automatic gain control (Step Attenuation)
Automatic gain control (Step Attenuation)
Auto Gain Control
20dB Min.
Output Power(Customers to Choose)
  UL:15dBm DL:≥17dBm

Spurious Emission
≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
In-band Ripple
≤ 3dB
Inter-Modulation Attenuation ACPR
≤ -40dBc / 30kHz (measured under rated output power)
VSWR
<=2
I/O Impedance
50 Ω
Noise Figure
≤ 5dB
RF Connector(Customers to Choose)
N (Female)
Operating Temperature
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
Power Supply
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Weight
≤5 kg(Net)
Alarm Monitoring System
Alarm for uplink self-oscillation
Indication LED
Power supply

70dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 0

70dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 170dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 270dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 370dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 470dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 570dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 670dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 770dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 870dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 970dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 1070dB 20dBm Digital selective band 1800MHz signal booster cellphone signal repeater amplifier 11

Support and Services:

The Band Selective Repeater product technical support and services include:

- Technical assistance for installation, configuration, and troubleshooting

- Software and firmware updates

- Remote monitoring and management services

- On-site maintenance and repair services

- Optional training courses for end-users and technicians



Packing and Shipping:

The Band Selective Repeater product comes in a sturdy cardboard box that ensures safe transportation. Inside the box, the product is securely packed with bubble wrap to prevent any damage during shipping.

The product is shipped through a reliable courier service to ensure timely delivery. The shipping cost is calculated based on the destination and weight of the package. The customer will receive a tracking number to track the delivery status of their shipment.



FAQ:

Q: Where is the Band Selective Repeater produced?

A: The Band Selective Repeater is produced in Shenzhen.

Q: What does the Band Selective Repeater do?

A: The Band Selective Repeater is designed to amplify and improve cellular signal in specific frequency bands, allowing for better signal strength and improved call quality.

Q: What frequency bands does the Band Selective Repeater support?

A: The Band Selective Repeater supports a variety of frequency bands depending on the specific model. Please refer to the product specifications for more information.

Q: How is the Band Selective Repeater installed?

A: The Band Selective Repeater is typically installed by a professional installer who will assess the optimal location and configuration for the device based on the specific needs of the customer's space and desired coverage area.
