Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-140-GD
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+300---320+pcs
Packaging Details: Standard neutral packing,48x46x18cm(1pcs),
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
900MHz Frequency Range: |
880–915MHz/ 925–960MHz |
1800MHz Frequency Range: |
1710–1785MHz/1805–1880MHz |
900MHz Bandwidth: |
35MHz, Supports 1 Subband From 0.2 To 20 MHz Adjusted |
1800MHz Bandwidth: |
75MHz, Supports 1 Subband From 0.2 To 20 MHz Adjusted |
Gain: |
UL:65dB DL:70dB |
Output Power: |
UL:15dBm DL:≥17dBm |
RF Connector(Customers To Choose): |
N -Type (Female) |
Local Control: |
WIFI/Type-C Port |
Power Supply: |
DC 5V/5A |
900MHz Frequency Range: |
880–915MHz/ 925–960MHz |
1800MHz Frequency Range: |
1710–1785MHz/1805–1880MHz |
900MHz Bandwidth: |
35MHz, Supports 1 Subband From 0.2 To 20 MHz Adjusted |
1800MHz Bandwidth: |
75MHz, Supports 1 Subband From 0.2 To 20 MHz Adjusted |
Gain: |
UL:65dB DL:70dB |
Output Power: |
UL:15dBm DL:≥17dBm |
RF Connector(Customers To Choose): |
N -Type (Female) |
Local Control: |
WIFI/Type-C Port |
Power Supply: |
DC 5V/5A |

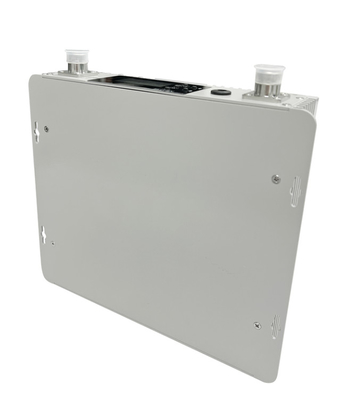

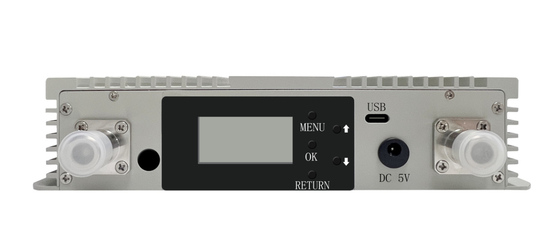

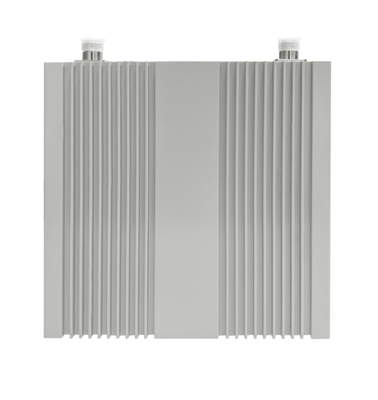

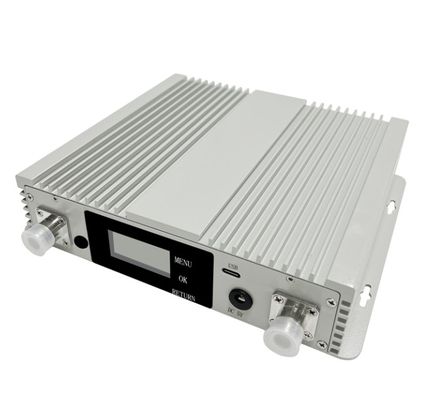

Cellular Repeater 900/1800MHz Dual Band Digital Selective Internet Network Signal Amplifier For Home
Further detail pls click here for downloading the products specification:
Technical Specifications:
|
SPECIFICATIONS
|
PARAMETERS
|
||
|
Frequency Range
|
900MHz
|
UL880–915MHz, DL925–960MHz
|
|
|
1800MHz
|
UL1710–1785MHz, DL1805–1880MHz
|
||
|
Bandwidth
|
900MHz
|
35MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
|
|
1800MHz
|
75MHz, supports 1 subband from 0.2 to 20 MHz adjusted
|
||
|
Gain
|
UL:65dB DL:70dB
|
||
|
Output Power
|
UL:15dBm DL:≥17dBm
|
||
|
Automatic Gain Control
|
31dB
|
||
|
MGC (Step Attenuation)
|
20dB@ 1dB/Step
|
||
|
Spurious Emission
|
9 kHz -150 kHz/1kHz
|
≤-36dBm
|
|
|
150 kHz - 30 MHz/10kHz
|
≤-36dBm
|
||
|
30 MHz - 1 GHz/100kHz
|
≤-36dBm
|
||
|
1 GHz- 12.75 GHz/1MHz
|
≤-30dBm
|
||
|
ACPR
|
Downlink Fully comply with 3GPP 36.106
|
||
|
Fully comply with 3GPP 36.106
|
|||
|
Unwanted emissions
|
Fully comply with 3GPP 36.106
|
||
|
Out Of Band Gain
|
900MHz
|
1MH≤f_offset＜5MHz, UL:≥30 dB,DL:≤ 30 dB
|
|
|
1800MHz
|
1MH≤f_offset＜5MHz, UL:≥ 30 dB,DL:≤ 30 dB
|
||
|
EVM
|
≤8
|
||
|
VSWR
|
≤2
|
||
|
Ripple
|
900MHz
|
≤6dB
|
|
|
|
1800MHz
|
≤6dB
|
|
|
Noise Figure
|
≤8dB
|
||
|
Delay
|
≤3μs
|
||
|
I/O Impedance
|
50Ohm
|
||
|
RF Connector(Customers to Choose)
|
N -Type (Female)
|
||
|
Remote Control
|
Cloud WEB platform
|
||
|
Local Control
|
WIFI/Type-C port
|
||
|
Operating Temperature
|
-25°~+55°
|
||
|
Power Supply
|
DC 5V/5A
|
||
|
Power consumption
|
≤75W
|
||
|
Environment Conditions
|
IP43
|
||
|
Humidity
|
≤90%
|
||
|
Weight
|
≤3kg
|
||
|
Size
|
234*230*52 (mm)
|
||
Product Description
Q1: Are you trading company or manufacturer ? Could I use our own logo and label?
A: We are factory, with trading service. We provide OEM/OEM service.
Q2: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
Q3: How many square meters can be covered?
A: For different models, the covered square meters are different.
Q4: What is your warranty time?
A: We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Q5: Please feel free to contact us if any other questions.
