Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-010-1800/2100/pro
Document: AT011 1W 1800+2100MHz Power...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+1100---1550+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Products Type: |
Network Booster, Mobile Phone Signal Booster |
Device Gain: |
85dB |
Device Output Power: |
30dBm |
Color For Choice: |
White |
RF Connectoer: |
N/Female |
Coverage: |
300-500sqm |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Products Type: |
Network Booster, Mobile Phone Signal Booster |
Device Gain: |
85dB |
Device Output Power: |
30dBm |
Color For Choice: |
White |
RF Connectoer: |
N/Female |
Coverage: |
300-500sqm |

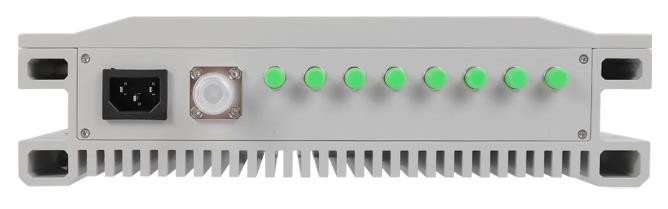

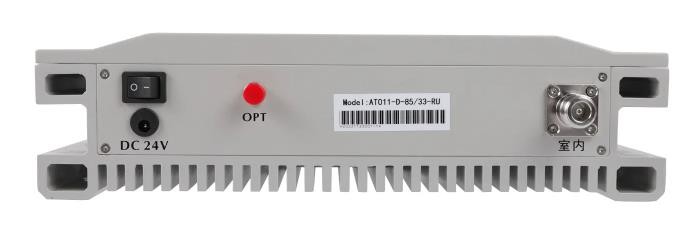

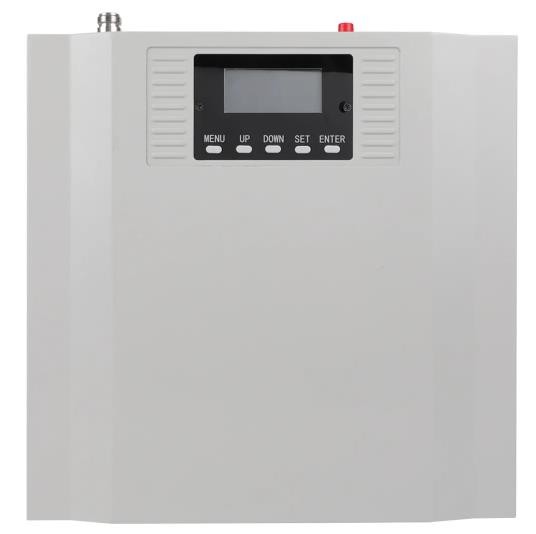

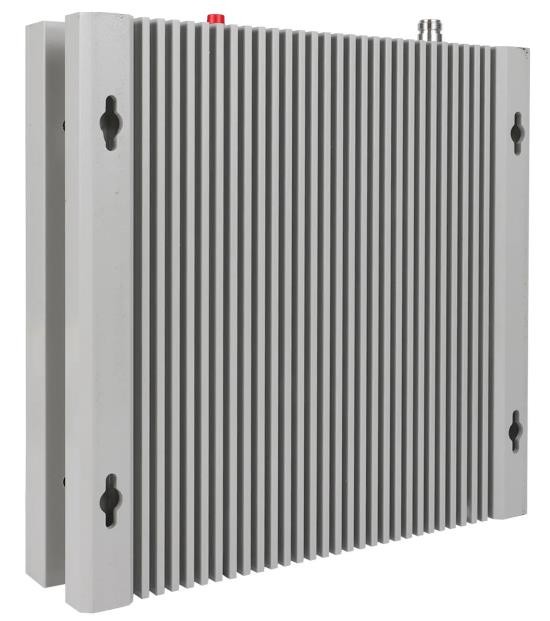

1800MHz 2100MHz Dual Band Booster 30dBm
Dual Band 1800 2100MHz Cellular Signal Repeater Amplifier
General :
The Repeater provides an affordable solution to solve indoor signal coverage problems due to signal fading and attenuation caused by architectural obstacles. And its easy installation and maintenance can help carriers get fast returns.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal, and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. The mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features:
1. Cost-effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.Expansion and extension of the signal of the base station. Optimization of the quality of the signal and source
3. High linear design, ALC function design, low interference to BTS.
4. Support any cellular devices (voice & data & video)
5. Wideband signal booster, or customized selective band booster.
6. Support System CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G, etc
Advantages:
1. Smart Function, Intelligent mode setting smart function which can be activated via the front panel. users can adjust gain and choose a working band by LED panel, This smart function is easier than DIP Switch, and can set up parameters, It is a simple, safe, and effective way.
2. Auto Level Control
The 30dB ALC is used to maintain steady output power even when the donor source signal fluctuates.
3. ODM/OEM service is available.
FAQ
|
Q1: Do you have CE or any other certification?
|
|
A: Yes,we CE, ROHS and CCC certification,etc.
|
|
Q2: Can you give me a discount?
|
|
A: Please discuss with our sales.
|
|
Q3: How about gain and output power of your device?
|
|
A: Different models, gain and output power aredifferent,for more details, please contact us.
|
|
Q4: How long is warranty period?
|
|
A: The warranty is 36months. And we offer 7*24technical support
|
|
Q5: How many square meters can be covered?
|
|
A: For different models, the covered square meters are different.
|
