2G 3G Cell Phone Booster , 850MHz 900MHz 2100MHz Tri Band Signal Repeater

Basic Properties
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: NT-CGW
Trading Properties
Minimum Order Quantity: 5Pcs
Price: USD+210---240+kit
Payment Terms: T/T,Western Union,Paypal,Bank transfering
Supply Ability: 1000+unit+per day.
Tags

2100MHz Mobile Signal Repeater

850MHz Mobile Signal Repeater

70dB Mobile Signal Repeater
Specifications
Frequency Range: 850MHz +900MHz + 2100MHz Device Gain: Uplink :60±3dB, Downlink: 65±3dB
Device Output power: Uplink :13±2dBm, Downlink:20±dBm Color For Choice: White
AGC Intelligent Function: Done,31dB @ 1dB/ Step Device RF Connect Type: SMA/Female
Device Power Supply: AC 220V/ DC5V/2A Power Adapter Packing Size: 52x24x16cm
High Light:

2100MHz Cell Phone Booster

,

CCC Cell Phone Booster

,

900MHz Tri Band Signal Repeater
Product Description
2G 3G Cell Phone Booster, 850MHz 900MHz 2100MHz Tri Band Signal Repeater
Product Overview

850MHz 900MHz 2100MHz Tri Band Mobile Booster

CDMA GSM UMTS 2G 3G 4G Network Cell Phone Signal Repeater Amplifier

Technical Specifications
SPECIFICATIONS PARAMETERS
Frequency Range CDMA 850MHz: 825-835MHz/870-880MHz
GSM 900MHz: 890-915MHz/935-960MHz
WCDMA 2100MHz: 1920-1980MHz/2110-2170MHz
Band Width CDMA 850MHz: 10MHz
GSM 900MHz: 25MHz
WCDMA 2100MHz: 60MHz
Gain 65±3dB
Automatic Gain Control 31dB
MGC (Step Attenuation) 31dB@ 1dB/Step
Output Power 20±2dBm
Spurious Emission 9 kHz -150 kHz/1kHz: ≤-36dBm
150kHz-30MHz/10kHz: ≤-36dBm
30 MHz-1GHz/100kHz: ≤-36dBm
1GHz-12.75GHz/1MHz: ≤-30dBm
ACPR Uplink Fully comply with 3GPP 36.106
Downlink Fully comply with 3GPP 36.106
Unwanted emissions Fully comply with 3GPP 36.106
VSWR ≤2
Ripple CDMA 850MHz: ≤6dB
GSM 900MHz: ≤6dB
WCDMA 2100MHz: ≤6dB
Noise Figure ≤7dB
Delay ≤1μs
I/O Impedance 50Q
RF Connector SMA-Type (Female)
Operating Temperature -25°~+55°
Power Supply DC 5V
Power consumption ≤75W
Environment Conditions IP43
Humidity ≤90%
Weight 0.5kg
Size 205*165*45mm
Key Features
  • Support the network extension coverage of NSA and SA networking mode at the same time
  • MIMO dual channel input and output to improve system capacity and energy efficiency
  • Isolation detection of donor and retransmission antenna
  • Large AGC range
  • High speed digital ALC
  • Output power indication
  • Automatic Dormancy
  • When the equipment is self-excited, it will turn off automatically
  • Unique equipment uplink squelch function, which does not interfere with the base station
  • Automatic balance of uplink and downlink gain
  • Small size, light weight, beautiful appearance, high gain and low power consumption
  • Different output power levels to meet different coverage requirements
  • Low noise amplification of equipment to improve voice quality and reduce dropped calls
  • Convenient installation and opening
Product Images

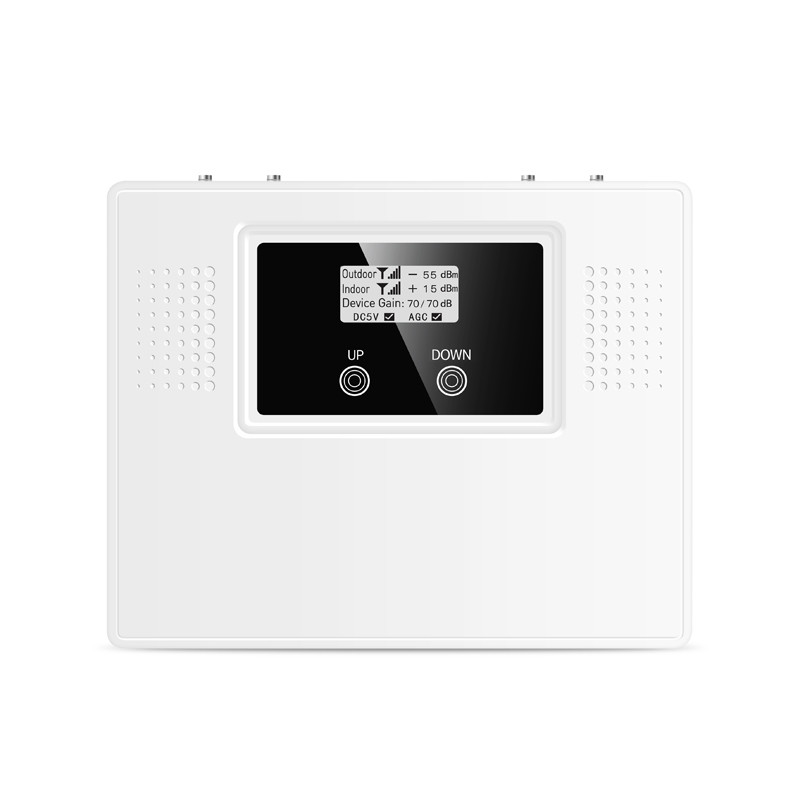

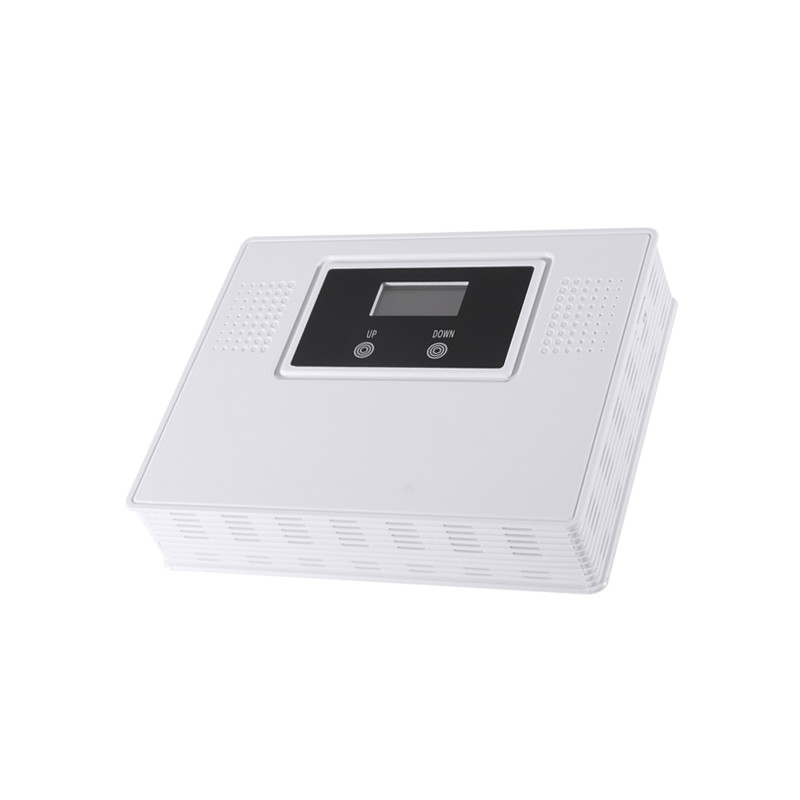

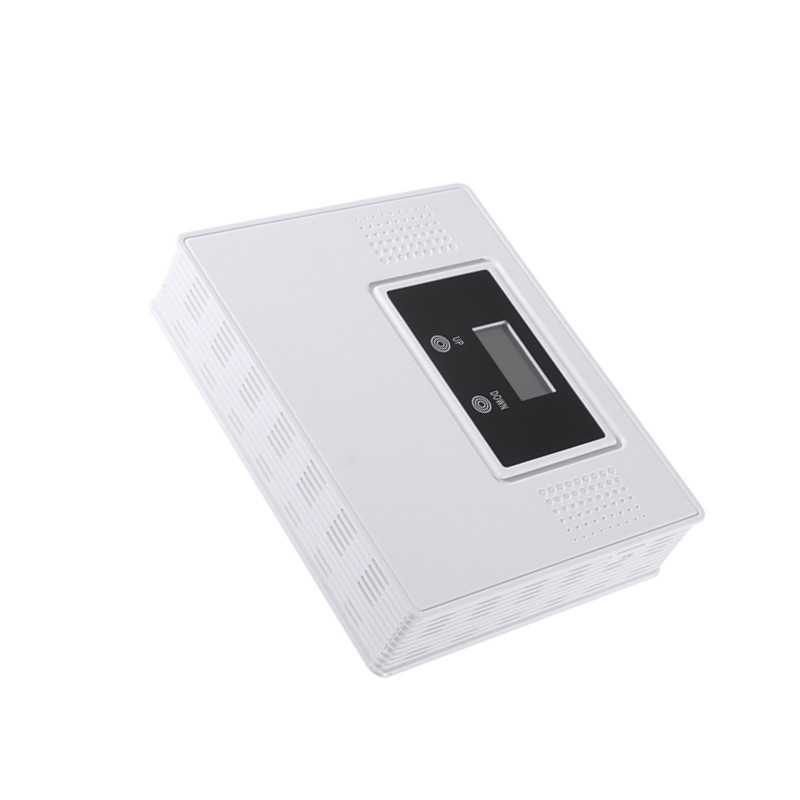

2G 3G Cell Phone Booster front view 2G 3G Cell Phone Booster side view 2G 3G Cell Phone Booster technical diagram
Frequently Asked Questions
Do you have CE or any other certification?
Yes, we have CE, ROHS and CCC certification, etc.
Can you give me a discount?
Please discuss with our sales.
How about gain and output power of your device?
Different models, gain and output power are different. For more details, please contact us.
How long is warranty period?
The warranty is 3 years. And we offer 7*24 technical support.
How many square meters can be covered?
For different models, the standard kit is with 350㎡. We could add extra inside antenna for expanding the coverage.
