Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater

Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater

Brand Name: ATNJ
Model Number: AS-C4--Car
MOQ: 1
Price: USD+40---49+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
Frequency Range:
Band5: 824-849MHz; 869-894MHz
Amplifier Gain:
50---55dB
Amplifier Output:
Uplink--17dBm, Downlink--2dBm
Color For Choice:
White,Blue,Customized
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
SMA/Female Connector
Packing Size:
54x19x16cm
Products Type:
Signal Booster For Car, Repetidor
Supply Ability:
1000+unit+per day.
High Light:

4G Car Signal Booster

,

GSM Car Signal Booster

,

Cell Phone Signal Repeater TUV

Product Description



Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Signal Repeater Car Amplifier







Product Description
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 0
  • ATNJ Band5 850MHz mobile signal repeater

ATNJ RF repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ RF repeater is easy to install and maintain, which could help signal providers get fast solution.
  • Selling Point

①Intelligent to guide the installation with LCD .②Real time display the signal strength .
Automatic dormancy when no user make the calling .
③Automatic alarm when installation mistake and provide the according solution .
④Automatic adjust the system gain to avoid the repeater self-excitation .
⑤Initiative reminding when the device was damaged .
⑥Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⑦With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 1
SPECIFICATIONS
PARAMETERS
Frequency Range
CDMA  850MHz
824-849MHz/869-894MHz
Bandwidth
CDMA 850MHz
25MHz
Gain
50--55dB
Automatic Gain Control
31dB
MGC (Step Attenuation)
31dB@ 1dB/Step
Output Power
Uplink--17dBm, Downlink--2dBm




Spurious Emission
9 kHz -150 kHz/1kHz
≤-36dBm
150 kHz - 30 MHz/10kHz
≤-36dBm
30 MHz - 1 GHz/100kHz
≤-36dBm
1 GHz- 12.75 GHz/1MHz
≤-30dBm
ACPR
Uplink Fully comply with 3GPP 36.106
Downlink Fully comply with 3GPP 36.106
Unwanted emissions
Fully comply with 3GPP 36.106
VSWR
≤2
Ripple
CDMA 850MHz
≤3dB
Noise Figure
≤5dB
Delay
≤1μs
I/O Impedance
50Q
RF Connector(Customers to Choose)
SMA-Type (Female)
Operating Temperature
-25°~+55°
Power Supply
DC 5V
Power consumption
≤0.2W
Environment Conditions
IP43
Humidity
≤90%
Weight
0.3kg

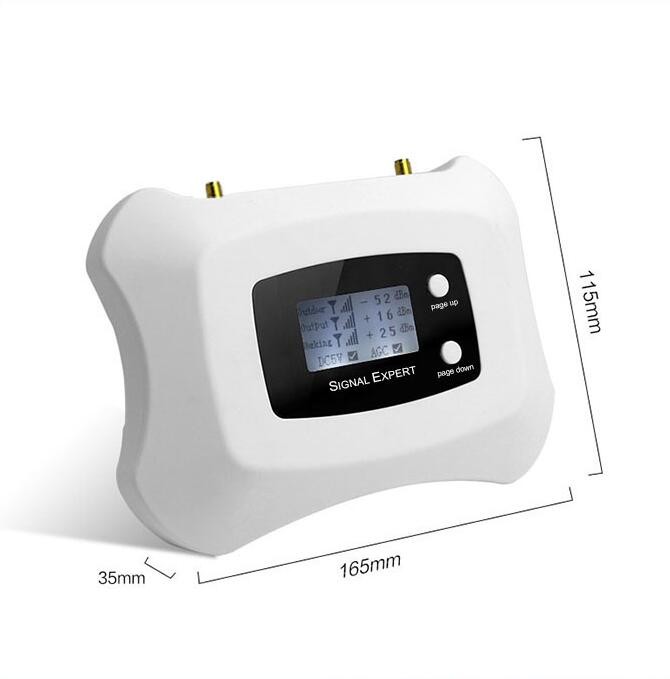

Size
173*123*35 (mm)

Further detail pls click here for downloading the products specification:

Vehicle CDMA 850MHz mini Repeater.pdf



Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 2
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 3
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 4
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 5
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 6
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 7
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 8
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 9
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 10
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 11
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 12
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 13
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 14
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 15
Vehicle Amplifier MINI GSM 3G 4G Car Signal Booster B5 Cell Phone Repeater 16
FAQ
How to know the communication frequency in your area?

You can contact us for the signal test app.

Can you support customized frequency, power supply or appearance?

Yes, we support it. Please contact us, online at any time.

Where to install the outdoor antena?

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

How to Select Mobile Network Booster for Home?

In Europe, Asia, Middle East and Africa, mostly operators use 900 MHz or 1800 MHz for 2G voice, 2100 MHz for 3G data, 1800 MHz or2600 MHz for 4G high speed data.In America and Canada, carriers will use lower 700 MHz, upper 700 MHz, Cellular 1800 MHz, PCS 1900MHz and AWS 2100 MHz for 3G and 4G voice and data.At the same time, you can contact us to help you test the communication frequency.

With the booster installed, why no effect?

Check whether you got the booster with correct frequency.For example, the GSM900MHz frequency can not works for the DCS1800MHz.
Check the signal outside received. Check all the installation is correct,and all the accessories are well connected.
