|800MHz Frequency Range:||832-862MHz /791-821MHz||E900MHz Frequency Range:||880-915MHz / 925-960MHz|
|Products Type:||GSM Repeater Booster||Color:||White Black And Gold|
|Packing Size:||52x24x16cm||Products Name:||4g Repeater|

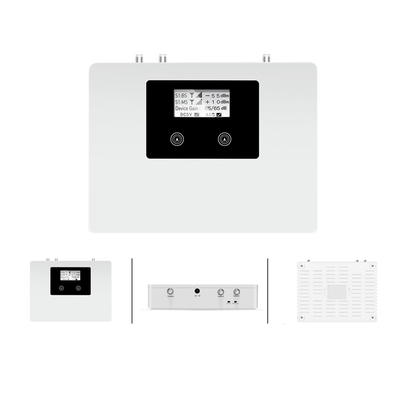

Dual Band EGSM900MHz LTE800MHz Signal Booster Cellular Amplifier
ATNJ RF repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. Our repeater is easy to install and maintain,
①Intelligent to guide the installation with LCD .
②Real time display the signal strength .
Automatic dormancy when no user make the calling .
|Frequency Range||EGSM 900MHz||880-915MHz/925-960MHz|
|Band Width||EGSM 900MHz||35MHz|
|Automatic Gain Control||31dB|
|MGC (Step Attenuation)||31dB@ 1dB/Step|
|Spurious Emission||9 kHz -150 kHz/1kHz||≤-36dBm @1kHz|
|150 kHz - 30 MHz/10kHz||≤-36dBm@10kHz|
|30 MHz - 1 GHz/100kHz||≤-36dBm@100kHz|
|1 GHz- 12.75 GHz/1MHz||≤-30dBm@1kHz|
|ACPR||Uplink Fully comply with 3GPP 36.106|
|Downlink Fully comply with 3GPP 36.106|
|Unwanted emissions||Fully comply with 3GPP 36.106|
|RF Connector(Customers to Choose)||SMA-Type (Female)|
|Power Supply||DC 5V3A|
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
