17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater

17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS，CCC，TUV,BV， ISO

Model Number: AS-EGSM

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+40---49+kit

Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price

Product Details

Product Description
Highlight:

17dBm Cellular Signal Amplifier

,

TUV GSM Network Repeater

,

70dB GSM Network Repeater

Frequency Range:
880-915MHz/925-960MHz
Repeater Gain:
70dB
Repeater Output:
17dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
SMA/Female
Weight:
1.85kg
Packing Size:
54x19x16cm
Products Type:
4g Signal Booster, Gsm Signal Booster
Frequency Range:
880-915MHz/925-960MHz
Repeater Gain:
70dB
Repeater Output:
17dBm
AGC Intelligent Function:
Done,31dB @ 1dB/ Step
RF Connect Type:
SMA/Female
Weight:
1.85kg
Packing Size:
54x19x16cm
Products Type:
4g Signal Booster, Gsm Signal Booster
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater

Hot sale amplificador de seal celular banda 8 EGSM network repeater







Product Description
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 0

  • ATNJ Band8 900MHz mobile signal repeater

ATNJ RF repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ RF repeater is easy to install and maintain, which could help signal providers get fast solution.

  • Selling Point

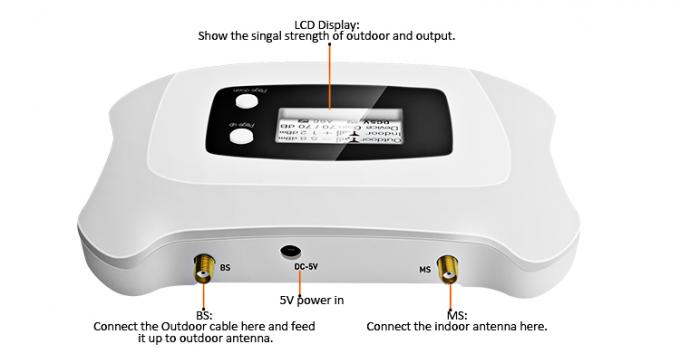

①Intelligent to guide the installation with LCD .②Real time display the signal strength .

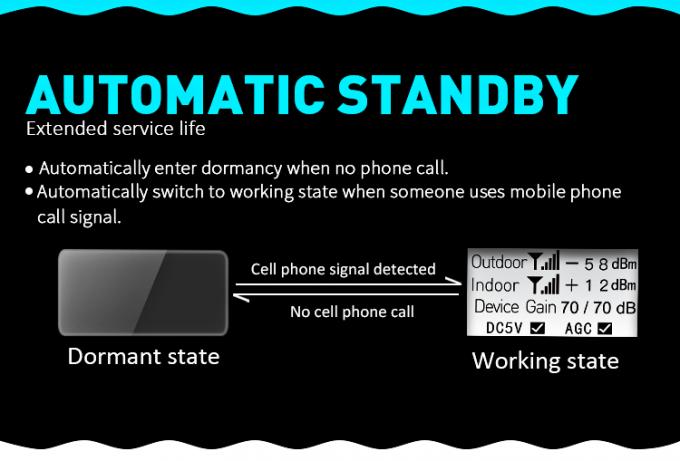

Automatic dormancy when no user make the calling .
③Automatic alarm when installation mistake and provide the according solution .
④Automatic adjust the system gain to avoid the repeater self-excitation .
⑤Initiative reminding when the device was damaged .
⑥Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⑦With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 1
SPECIFICATIONS
PARAMETERS
Frequency Range
EGSM 900MHz
880-915MHz/925-960MHz
Bandwidth
EGSM 900MHz
35MHz
Gain
70dB
Automatic Gain Control
31dB
MGC (Step Attenuation)
20dB@ 1dB/Step
Output Power
17±3




Spurious Emission
9 kHz -150 kHz/1kHz
≤-36dBm
150 kHz - 30 MHz/10kHz
≤-36dBm
30 MHz - 1 GHz/100kHz
≤-36dBm
1 GHz- 12.75 GHz/1MHz
≤-30dBm
ACPR
Uplink Fully comply with 3GPP 36.106
Downlink Fully comply with 3GPP 36.106
Unwanted emissions
Fully comply with 3GPP 36.106
VSWR
≤2
Ripple
EGSM 900MHz
≤3dB
Noise Figure
≤5dB
Delay
≤1μs
I/O Impedance
50Q
RF Connector(Customers to Choose)
SMA-Type (Female)
Operating Temperature
-25°~+55°
Power Supply
DC 5V
Power consumption
≤0.2W
Environment Conditions
IP43
Humidity
≤90%
Weight
0.3kg

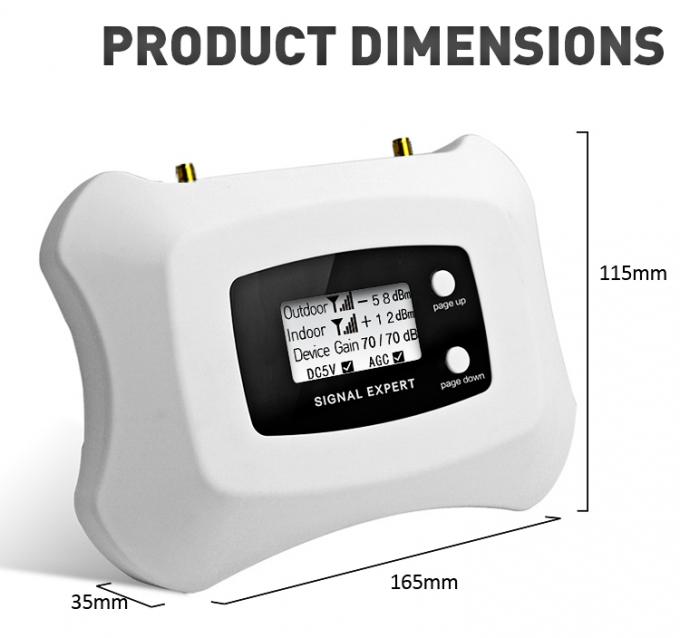

Size
173*123*35 (mm)

Further detail pls click here for downloading the products specification:

Single band EGSM 900MHz RF Repeater.pdf



17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 2
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 3
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 4
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 5
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 6
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 7
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 8
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 9
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 10
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 11
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 12
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 13
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 14
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 15
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 16
Company Introduction
Shenzhen ATNJ Communication Technology Company was founded in Nanshan District, Shenzhen in 2010 with over 900sqm factory. ATNJ focuses on the production and development of micro power signal booster, wireless signal repeater, Indoor Signal Distribution System and antenna series. With professional engineers, workers and with senior management personnel, the group maintains high-speed development. Meanwhile, the Up-to-date facilities and technology end sure the business long-term development. With the rapid development of the company, ATNJ moved to Guangming District, Shenzhen in 2016 with a bigger factory over 2800sqm and over 50 workers. In its stage of rapid development, ATNJ advertised its products by attending trade exhibitions oversea, cooperating with many platforms like Made-in-China, Alibaba, Global Sources and so on. Especially, ATNJ attended Mobile World Congress in Spain, which made ATNJ well known in the world and through MWC, ATNJ started to cooperate with many oversea companies. Nowadays, ATNJ not only produces and develops high-quality home use signal booster and high power wireless repeater, but also expands its business scope to cooperate with signal operators, provide signal coverage solution for large area like residential area, office building, supermarket, underground garage and rural areas. With the populization of signal repeater, users have more requirements for the functions of the signal repeater. In 2020, ATNJ developed smarter digital module signal repeater with WIFI connection monitoring function, with which users could control the signal repeater and watch the siganl repeater working situation with their mobile phone. Signal repeaters with WAN connection/Bluetooth connection/USB connection were developed at the same time. In 2021, 5G signal booster was developed and put into Chinese market successfully. In addition, ATNJ starts to upgrade the signal booster from analog module to digital module, with which the products (micro power signal booster, wireless signal repeater, Indoor Signal Distribution System) could be operated and controlled with WIFI connection, WAN port, USB port and SIM card. What‘s more, more functions are equipped in our products, like band selective, sub bands, OLED screen display, MGC. With the progress of science and technology of ATNJ, easier use and more functional signal boosters have being developed.
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 17
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 18
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 19
17dBm Cellular Signal Amplifier , Band 8 GSM Network Repeater 20

ATNJ Strength & Service

Highly qualified communication technology Engineers. ATNJ brings together a team of engineers with more than ten years of working experience in communication industry, who are engaged in signal booster R&D, design, debugging, testing, and its pre-production to ensure it could comply with International Standards. For the sustainable development of the company, some young engineers are also employed. Because of their hard work, the ATNJ's products can be continuously updated and iterated.
Satisfactory after-sales service. ATNJ provides 3-year warranty for all the main signal repeater, and 3-month warranty for
accessories. Within the warranty period, ATNJ provides free repairment service, and customers only need to pay for the freight. In addition, within one month after the customer receives the product, ATNJ is responsible for all non-human damage faults.
Contact us and place order now, to have better signal, better life.
FAQ
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are the factory, with good trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of
warranty.

5. Please feel free to contact us if there are any other questions.
