GSM Signal Booster
>

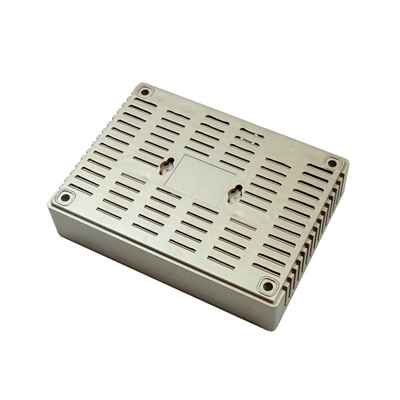

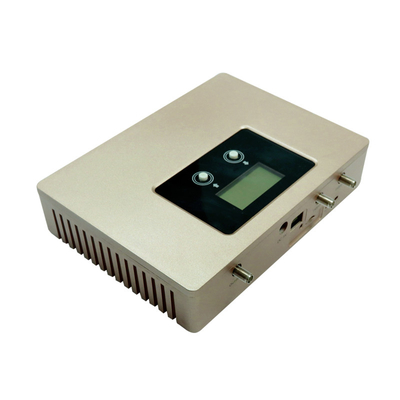

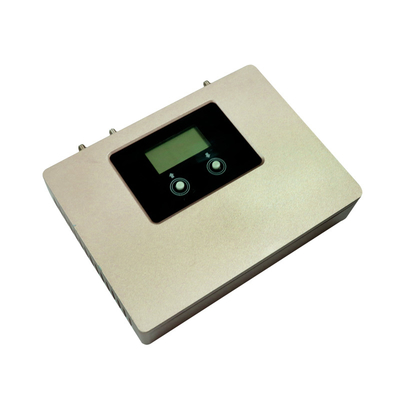

GSM DCS 900 1800MHz Mobile Signal Booster Dual Band 2+4G Repeater 70dB Amplifier

GSM DCS 900 1800MHz Mobile Signal Booster Dual Band 2+4G Repeater 70dB Amplifier

Brand Name: ATNJ
Model Number: JS-C03-GD
MOQ: 1
Price: USD+70---85+kit
Packaging Details: Standard neutral packing,52x24x16cm(1 kit), 4kits as 1 carton(54x49x33cm)
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,CCC,TUV,BV, ISO
900MHz Frequency Range:
890-915MHz / 935-960MHz
1800MHz Frequency Range:
1710-1785MHz /1805-1880MHz
Indoor Antenna:
Ceiling Antenna * 2
Outdoor Antenna:
Log Periodic Antenna
Color:
Black And Gold ,Customized
Weight:
4kg
Supply Ability:
1000+unit+per day.
High Light:

Mobile Signal Booster 70dB

,

GSM DCS Mobile Signal Booster

,

ROHS GSM Signal Booster

Product Description



GSM DCS 900 1800MHz Mobile Signal Booster Dual Band 2+4G Repeater 70dB Amplifier





General


The dual band 900/1800MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.





Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

890-915MHz, 1710-1785MHz

Downlink

935-960MHz, 1805-1880MHz

Frequency Bandwidth

25MHz & 75MHz

Gain

70dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

20±3dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

SMA(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

900+1800MHz C03 Mobile Signal Repeater.pdf



Product Description





With the help of this mobile phone repeater for home you´ll improve the quality of GSM calls. Some providers also use these frequencies for 3G and 4G mobile Internet, so, in this case, the signal repeater will improve 2G/3G&4G network as well.



Among other distinctive and helpful features of signal repeater, 2G/3G & 4G there are:

  • LCD screen showing outdoor signal and output value. The system will guide you through installation process and show you error tips with solutions.

  • Automatic adjustment of gain and signal basing on the individual signal reception conditions.

  • Sleep mode helping to save energy when you do not use mobile 2G/3G/ 4G Internet.





LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 2LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 3LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 4LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 5LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 6LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 7





How Booster/Repeater Works?



1) The outside antenna receives the signal from the nearest mobile base station.



2) The outside antenna sends the received signal through the coax cable to the installed Repeater.



3) The repeater accepts the low signal and improves it.



4) The improved signal goes to the inside antenna through the connection coax cable.



5) The inside antenna send the improved good signal to your mobile phone.





LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 11LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 12



LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 13





Packaging Including:



1. Dual Band Booster

2. Power adapter

3. Outdoor Log-periodic antenna

4. Indoor Ceiling antenna * 2

5. 5 meters cable * 2

6. 20 meters cable





GSM DCS 900 1800MHz Mobile Signal Booster Dual Band 2+4G Repeater 70dB Amplifier 9





The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.





LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 15

LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 16LCD Display 2G 3G 4G Dual Band Repeater 1800/2100MHz Cellular Signal Amplifier Kit 17





FAQ:



1.

Q: Are you trading company or manufacturer ? Could I use our own logo and label?

A: We are factory, with trading service. We provide OEM/OEM service.

2.

Q: Can I have a sample order? What is your MOQ?
A: Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3.

Q: How many square meters can be covered?
A: For different models, the covered square meters are different.

4.

Q: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.

5.

Q: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.





Shipping



●We will send your parcel as soon as posiible after payment confirmed, Within 48 hours for normal,Except weekend and Chinaese holidays.

●Please provide your correct address,full name,and zip code.

●We generally would declare the parcel with lower value to aviod or lessen the Customs Taxs.Import Tax is not including in the price. When it happens, it is buyers responsibility to pay for the tax.

●Shipping is out of our control. If you want to get the product fast, please choose fast shipping methods, like EMS, UPS and DHL. If you find the package is beyond promised delivered time, please contact us, we will contact with the carriers and find out the reason.





Warranty



● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.

● Three years gaurantee period for our booster.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
