Product Details:
|
| Frequency 800MHz Range: | 832-862MHz/791-821MHz | Frequency EGSM900MHz Range: | 880-915MHz/925-960MHz |
|---|---|---|---|
| Gain: | 65-70dBi | Output: | 15-25dBm |
| AGC Intelligent Function: | Done,31dB @ 1dB/ Step | RF Connect Type: | N/Female |
| Antenna: | Log-period Antenna +Ceiling Antenna | Cable Length: | 20m For Outside + 5m For Inside |
| Package Size: | 52*24*16CM | Products Type: | Mobile Phone Signal Booster, Signal Booster Repeater |
| High Light: | LTE Dual Band Repeater,EGSM Dual Band Repeater,4G Dual Band Repeater Kit |
||

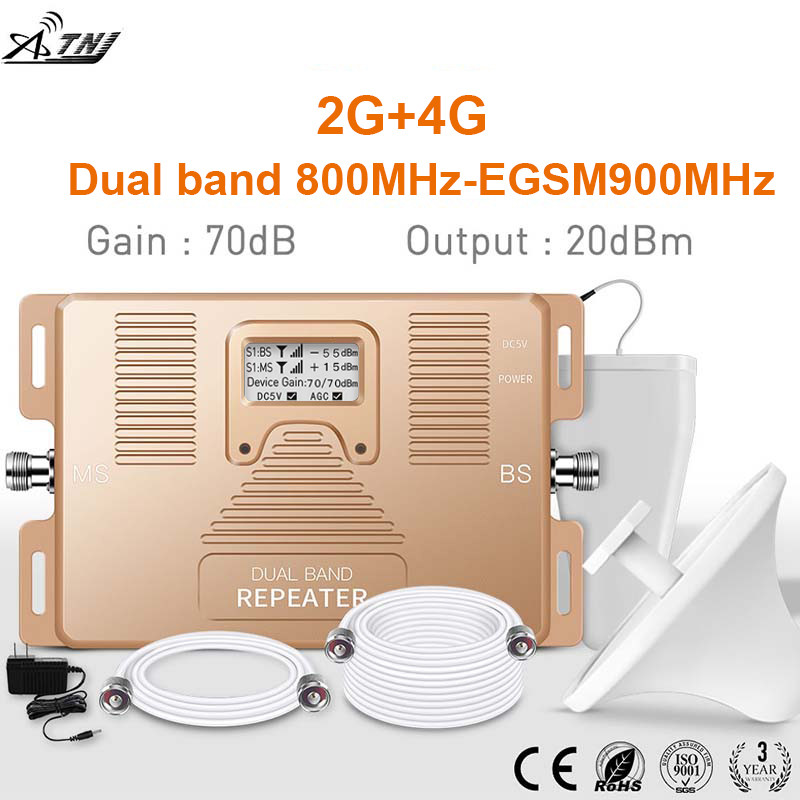

Dual band LTE 800MHz+EGSM 900MHz 2G 4G Cellular signal amplifier repeater Kit
ATNJ would keep strict working style, sincere attitude, professional technical support and perfect after-sales services based on the market, providing high-quality and most advanced signal boosters to global users to solve their signal problem.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
832-862MHz,880-915MHz |
|
Downlink |
791-821MHz,925-960MHz |
|
|
Frequency Bandwidth |
30MHz&35MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
800+E900MHz A032 mobile signal repeater.pdf
How does it work?
1. RECEIVES SIGNAL
The powerful antenna reaches out to access a good signal, and delivers it to the booster.
2. BOOSTS SIGNAL
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3. BROADCASTS SIGNAL
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Does the signal booster work have radiation or not ?
Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
6. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
