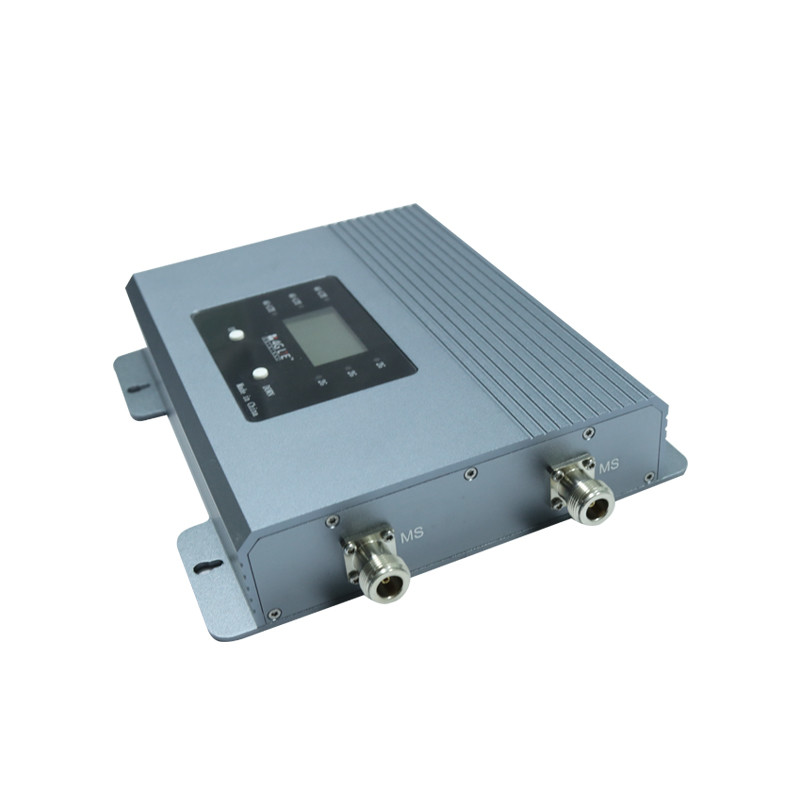

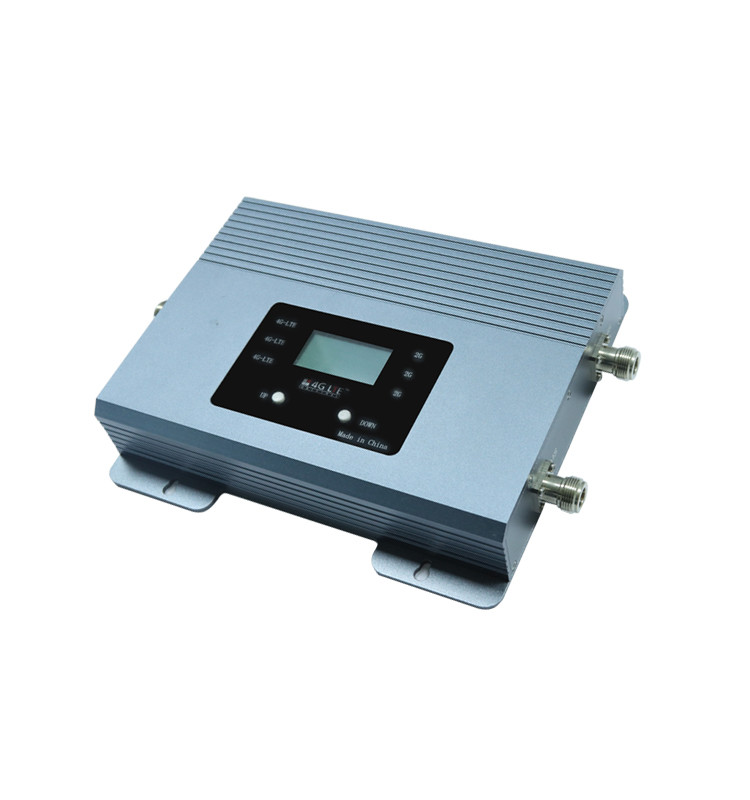

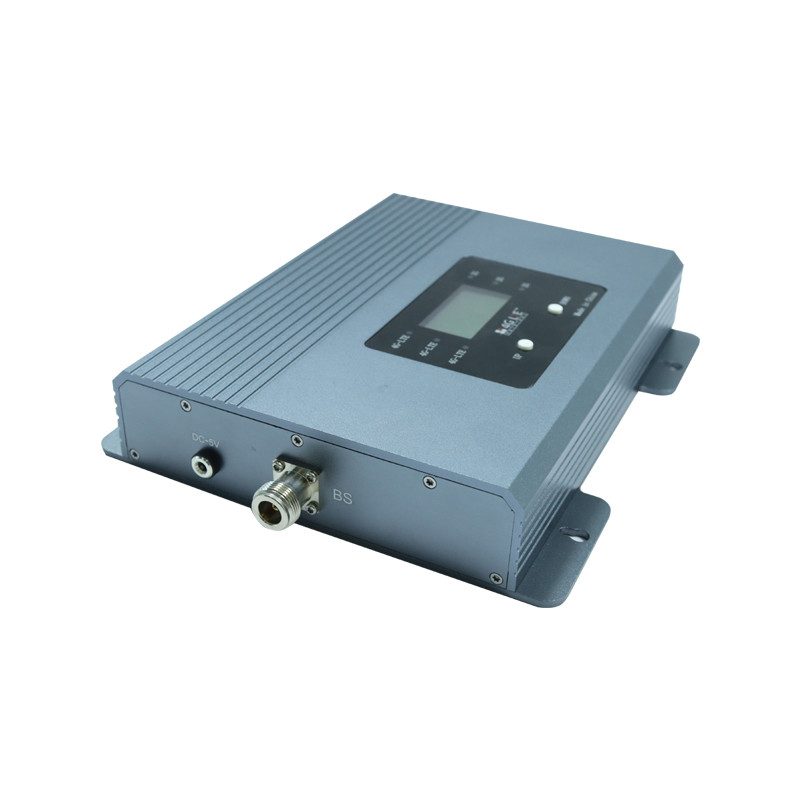

Output Power 20dBm Mobile Phone Range Extender With AGC ALC Function
| 900MHz Range: | 890-915MHz/ 935-960MHz | 1800MHz Range: | 1710-1710MHz/ 1805-1880MHz |
| Device Gain: | ≤70dB | Device Output power: | ≤20dBm |
| AGC Intelligent function: | Done,31dB @ 1dB/ Step | Power Supply: | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A Power Adapter) |
| HS Code: | 8543709200 | Production Capacity: | 10000/Per Month |
| High Light: | 20dBm Mobile Phone Range Extender,AGC ALC Mobile Phone Range Extender,20dBm Mobile Network Repeater |
||
Output Power 20dBm Mobile Phone Range Extender With AGC ALC Function
Intelligent With AGC+ALC Dual Band Mobile Phone Signal Booster Repeater 900 / 1800MHz
Technical Specifications
OUR Cellphone SIGNAL BOOSTER
- Smart LCD: show the real-time signal strength.
- Sleeping Mode: When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
- ALC (Automatic Level Control): Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
- AGC (Automatic Gain Control): When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
- MGC (Manual Gain Control): In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-27dB.
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 890-915MHz, 1710-1785MHz |
| Downlink | 935-960MHz, 1805-1880MHz | |
| Frequency Bandwidth (3dB Bandwidth) | 25MHz&75MHz | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB / Step | |
| Auto Gain Control | 20dB Min. | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 3dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | N(Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Dimensions | 165*130*40 (mm) | |
| Weight | ≤0.8 kg(Net) | |
| Alarm Monitoring System | Alarm for uplink self-oscillation | |
| Lightning Protection: | With Lightning Protection | |
Further detail pls click here for downloading the products specification:
900+1800MHz A021 Mobile Signal Repeater.docx.pdf
We are manufacturer, and have our own factory.
FAQ:
I am in France and which band/frequency should i choose?
Usually the typicial frequencies work in France mobile operators should be 900/1800MHz---2G,900/2100MHz---3G and 700/800/1800/2100/2600MHz work for 4G and part of 5G. Feel free to contact us for confirming a suitable model at your local pls.
1. Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2. Q: Does the signal booster work have radiation or not ?
A: Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
3. Q: Can I install a signal repeater myself?
A: Absolutely. There is no technical expertise required to install your mobile signal repeater kit. Each kit contains everything needed to improve the mobile coverage in your home/office and includes instructions that will guide you through the simple steps necessary to install your repeater.
4. Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
