| Brand Name: | ATNJ |
| Model Number: | MS-2600 |
| MOQ: | 5Pcs |
| Price: | USD+100---120+kit |
| Packaging Details: | Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

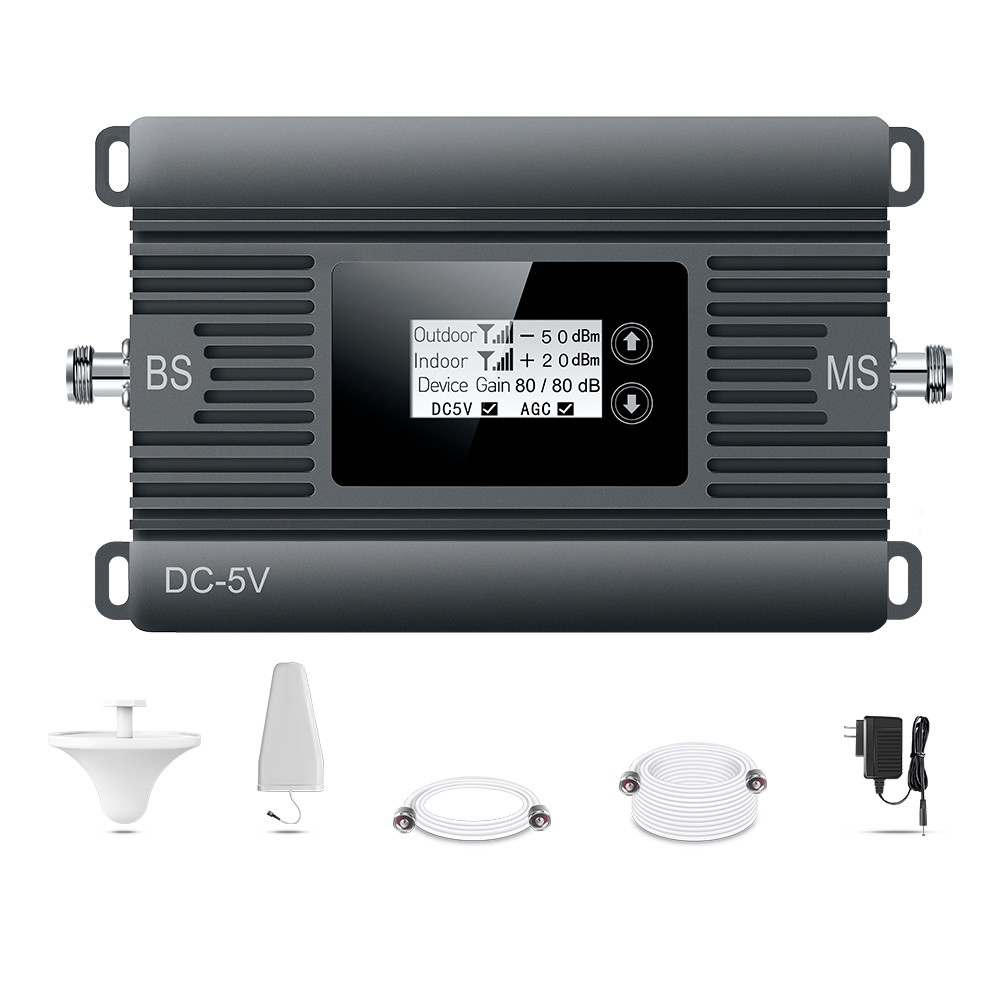

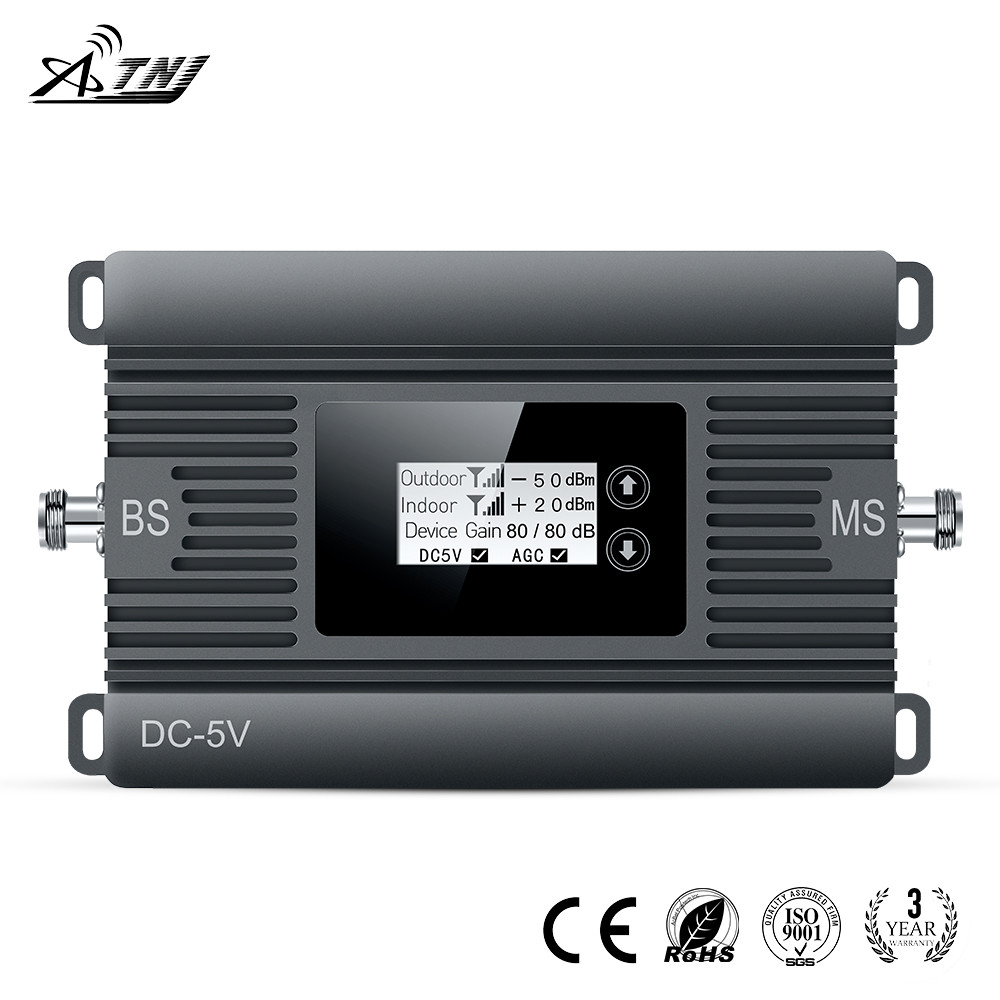

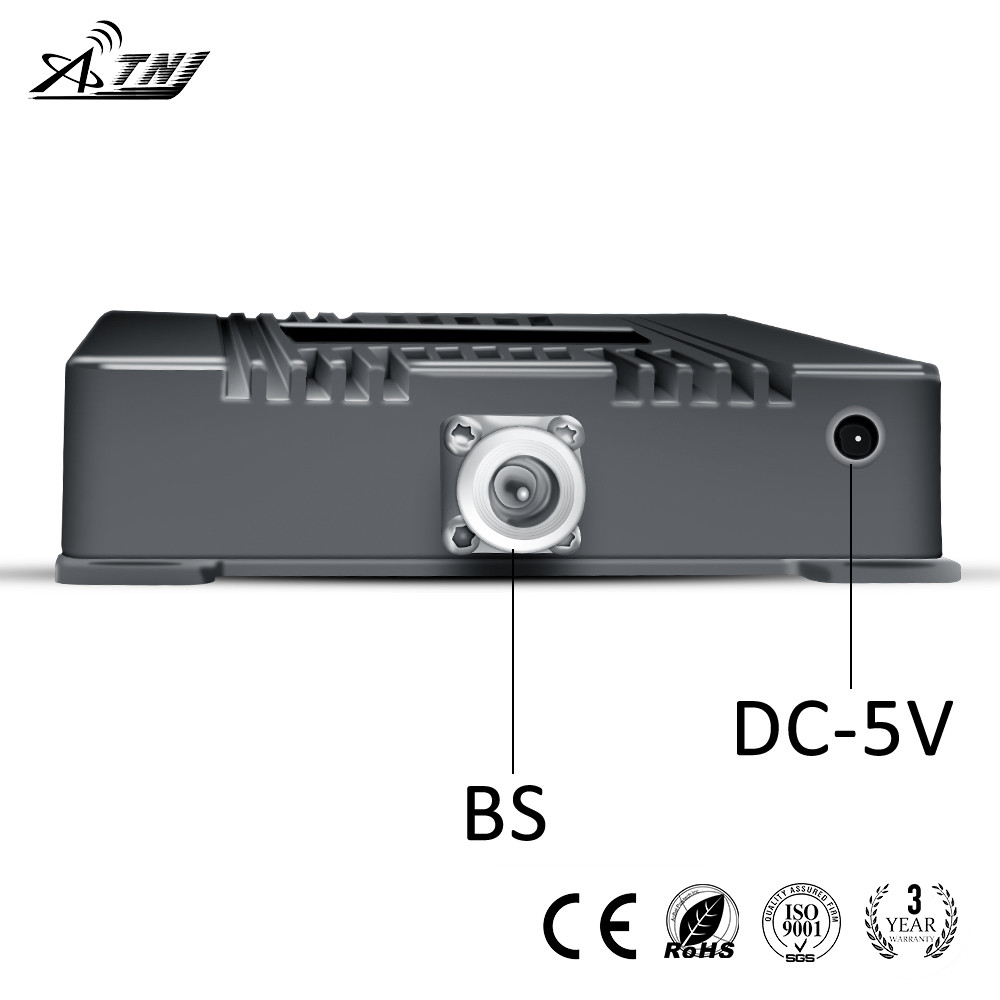

2600MHz Mobile 5G Signal Booster Cell Phone Repeater Ampilifier
Cell Phone Repeater Ampilifier Mobile Signal Booster Single Band 5G 2600MHz
A mobile phone signal repeater provides the ultimate solution in any area where celluar commnuications cannot work well due to leak of signals.The repeater device features easy installation and operation,build-in door antennaand no interference.it could also improve indoor electromagnetism enviroments,protract cellular battery life and reduce radiation of cellphones.A mobile phone repeater is ideal use for house,home,office use.
2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
2496-2690MHz |
|
Downlink |
2496-2690MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
HS Code |
8543709200 |
|
|
Certification: |
ISO, RoHS, CE, CCC |
|
Further detail pls click here for downloading the products specification:
LTE 2600MHz B011A Signal Repeater.pdf
1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.
We are manufacturer, and have our own factory.
Signal problem & installation technique supporting
1. If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2. If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
FAQ:
Q1: Do you have CE or any other certification?
A:Yes,we CE, , ROHS and FCC certification,etc.
Q2: Can you give me a discount?
A:Please discuss with our sales.
Q3: How about gain and output power of your device?
A:Different models, gain and output power are different,for more details, please contact us.
Q4: How long is warranty period?
A:The warranty is 12 months. And we offer 7*24 technical support .
Q5: how many square meters can be covered?
A:For different models, the covered square meters are different.
Please feel free to contact us if there are any other questions.
|
