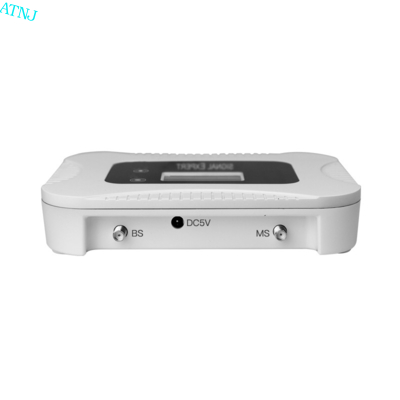

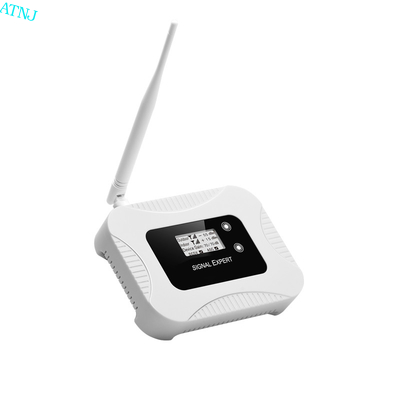

ATNJ Mobile 5G Signal Booster Cell Tower Signal Amplifier Repeater
| Frequency Range: | 703-748MHz/758-803MHz | Gain: | 70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB, |
| Output power: | 17-20dBm | Color: | White,Blue,Customized |
| AGC Intelligent function: | Done,31dB @ 1dB/ Step | Products name: | Cellular Signal Booster |
| RF Connect Type: | SMA/Female Connector | Certification:: | ISO, RoHS, CE, CCC |
| High Light: | ATNJ 5G Signal Booster,20dBm 5G Signal Booster,ATNJ Cell Tower Signal Amplifier |
||
ATNJ Mobile 5G Signal Booster Cell Tower Signal Amplifier Repeater
Mobile Signal Booster Cell Tower Signal 5G Amplifier Repeater
Selling Point

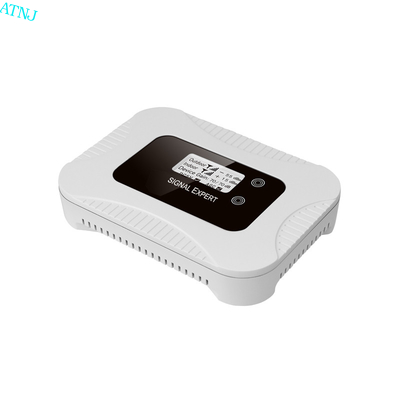

⭐ Intelligent to guide the installation with LCD .
⭐ Real time display the signal strength .
⭐ Automatic dormancy when no user make the calling .
⭐ Automatic alarm when installation mistake and provide the according solution .
⭐ Automatic adjust the system gain to avoid the repeater self-excitation .
⭐ Initiative reminding when the device was damaged .
⭐ Supports 10MHz from 0.2 to 10MHz bandwidth adjusted .
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
703-748MHz |
|
Downlink |
758-803MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
45MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
RF Connector(Customers to Choose) |
SMA (Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Type: |
Signal Repeater |
|
Further detail pls click here for downloading the products specification:
LTE 700MHz B07 Signal Repeater.pdf
Product Description
We are manufacturer, and have our own factory.
FAQ:
Q1: Do you have CE or any other certification?
A:Yes,we CE, , ROHS and FCC certification,etc.
Q2: Can you give me a discount?
A:Please discuss with our sales.
Q3: How about gain and output power of your device?
A:Different models, gain and output power are different,for more details, please contact us.
Q4: How long is warranty period?
A:The warranty is 12 months. And we offer 7*24 technical support .
Q5: How many square meters can be covered?
A:For different models, the covered square meters are different.
-
