Product Details:
|
| Impedance: | 50OHm | Cable: | 1/2 Feeder Cable |
|---|---|---|---|
| VSWR: | ≤ 1.5 | Jacket: | PVC |
| Cut-off Frequency: | 8.8GHz | Peak Power Rating: | 40kW |
| PIM: | - 160dBc@2X20W | Length: | 20M ( Or Customized） |
| Guaranteed Frequency: | DC-4GHz | Products Type: | Cellular Amplifier |
| High Light: | Dielectric Signal Booster Coaxial Cable,Heliax Foam Signal Booster Coaxial Cable,Heliax Foam Dielectric Coaxial Cable |
||

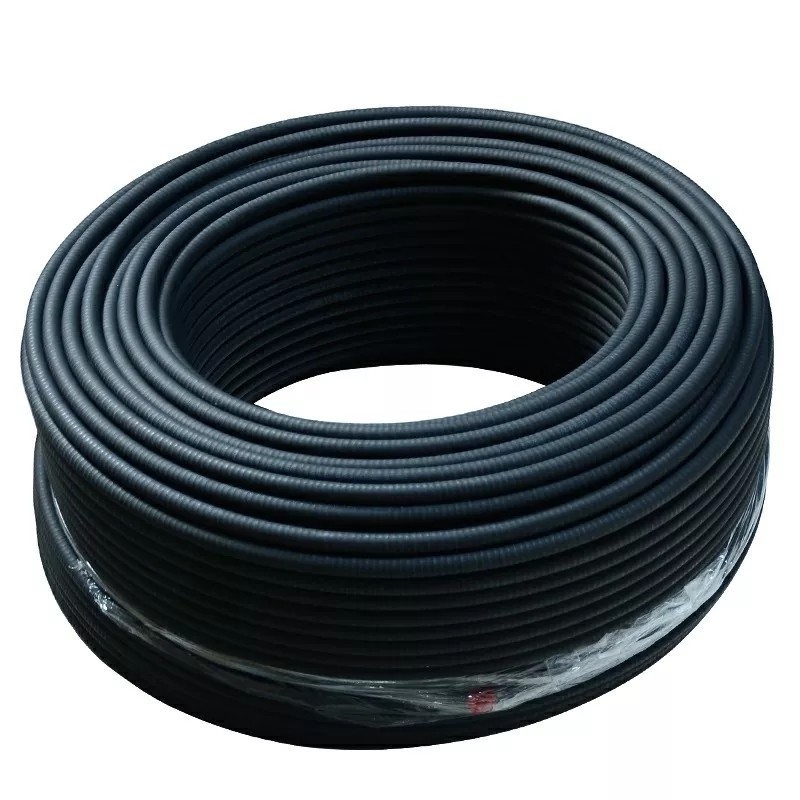

Heliax Foam Dielectric Signal Booster Coaxial Cable Electric Feeder

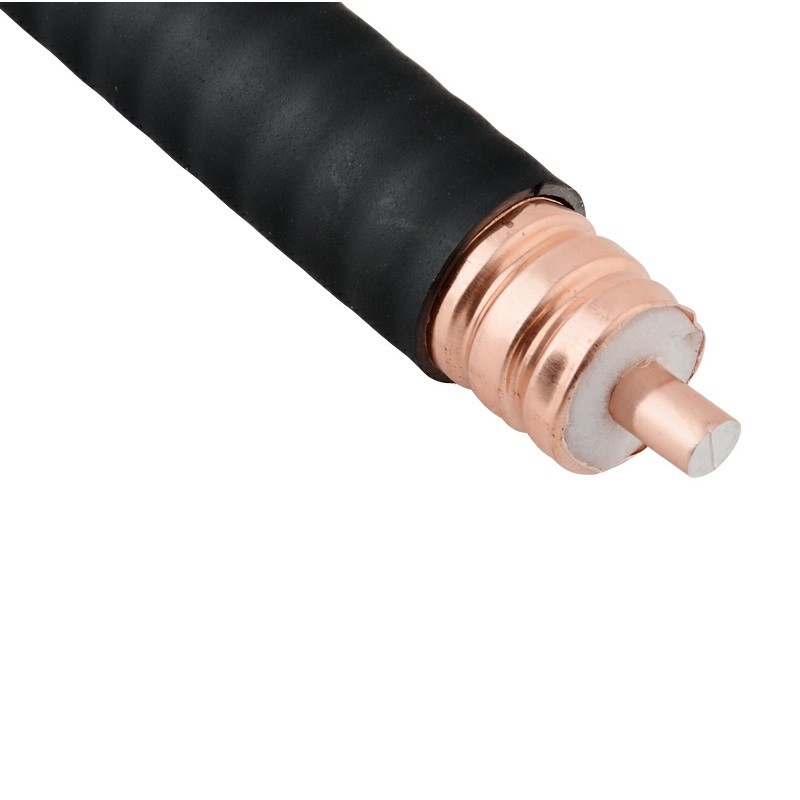

1/2 Heliax Foam Dielectric Electric Feeder coaxial cable features a 5 in bending radius that prevents kinking. This coaxial cable has an annular corrugated copper outer conductor and a copper-clad aluminum center conductor. Maximum frequency capacity is 8.8 GHz.
Spectification
|
Item
|
Material
|
Diamenter (mm)
|
|
Inner Conductor
|
Copper Clad Aluminum Wire
|
4.8
|
|
Dielectric
|
Physical Foam Polyethylene
|
12.3
|
|
Outer Conductor
|
Corrugated Copper Tube
|
13.8
|
|
Jacket
|
Black PE
|
15.7
|
|
Electrical Characteristics
|
||
|
Capacitance (pF/M)
|
|
76
|
|
Impedance (Ohm)
|
|
50
|
|
Velocity of Propagation (%)
|
|
88
|
|
Peak Power Rating (KW)
|
|
40
|
|
RF Peak Voltage (KV)
|
|
1.6
|
|
Insulation Resistance (MΩ.km)
|
|
>5000
|
|
Cut-off Frequency (GHz)
|
|
8.8
|
|
Insulation Voltage (KV)
|
|
6
|
|
Inner Conductor DC Resistance (Ω/km)
|
|
1.48
|
|
Outer Conductor DC Resistance (Ω/km)
|
|
1.90
|
|
Jacket Spark (KV)
|
|
8.0
|
|
Shielding Effectiveness (dB)
|
|
>120
|
|
VSWR≤(Return loss≥dB)
|
||
|
0.005-3GHz
|
|
1.15 (23)
|
|
0.8-1.0GHz
|
|
1.10 (26)
|
|
1.7-2.0GHz
|
|
1.10 (26)
|
|
2.0-2.4GHz
|
|
1.10 (26)
|
|
Mechanical and Environmental Characteristics
|
||
|
Min. Single Bending Radius (mm)
|
|
50
|
|
Min. Repeated Bending Radius (mm)
|
|
125
|
|
No. of Bends
|
|
15
|
|
Mobile Apply (mm)
|
|
350
|
|
Bending Moment (N.m)
|
|
5.0
|
|
Tensile Strength (kg)
|
|
110
|
|
Storage Temp (℃)
|
|
-55 to +85
|
|
Installation Temp (℃)
|
|
-40 to +60
|
|
Operating Temp (℃)
|
|
-55 to +85
|
|
Attenuation (VSWR1.0, cable temp. 20℃) & Average Power (VSWR 1.0, ambient temp. 40℃)
|
||
|
Frequency (MHz)
|
Attenuation (≯dB/100m)
|
Average Power (KW)
|
|
100
|
2.15
|
3.94
|
|
200
|
3.08
|
2.75
|
|
450
|
4.70
|
1.80
|
|
800
|
6.35
|
1.33
|
|
900
|
6.75
|
1.25
|
|
1000
|
7.20
|
1.18
|
|
1500
|
9.05
|
0.95
|
|
1800
|
9.90
|
0.86
|
|
2000
|
10.50
|
0.81
|
|
2200
|
11.10
|
0.77
|
|
2400
|
11.60
|
0.75
|
|
2500
|
11.95
|
0.73
|
|
3000
|
13.20
|
0.65
|
