Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-MS-800/900/2600
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+1100--2500+kit
Packaging Details: Standard neutral packing
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
800MHz Frequency Range: |
832-862MHz / 791-821MHz |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2600MHz Frequency Range: |
2500-2570MHz / 2620-2690MHz |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
2G, 3G, 4G, 5G Voice |
Booster Warranty: |
36 Months |
Products Type: |
Signal Booster 5G, 4g Anten |
800MHz Frequency Range: |
832-862MHz / 791-821MHz |
900MHz Frequency Range: |
890-915MHz / 935-960MHz |
2600MHz Frequency Range: |
2500-2570MHz / 2620-2690MHz |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
2G, 3G, 4G, 5G Voice |
Booster Warranty: |
36 Months |
Products Type: |
Signal Booster 5G, 4g Anten |

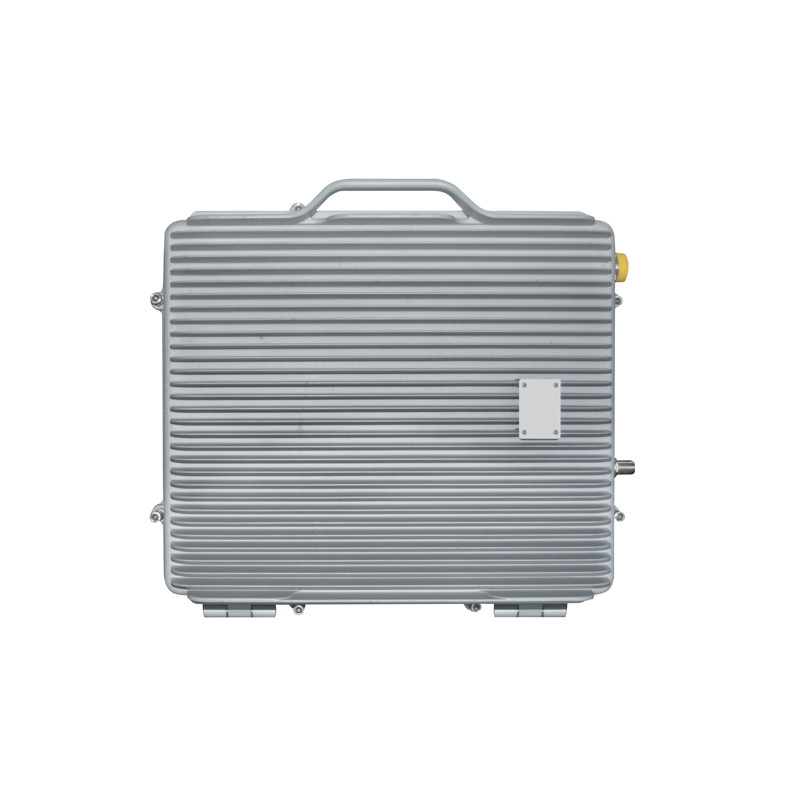

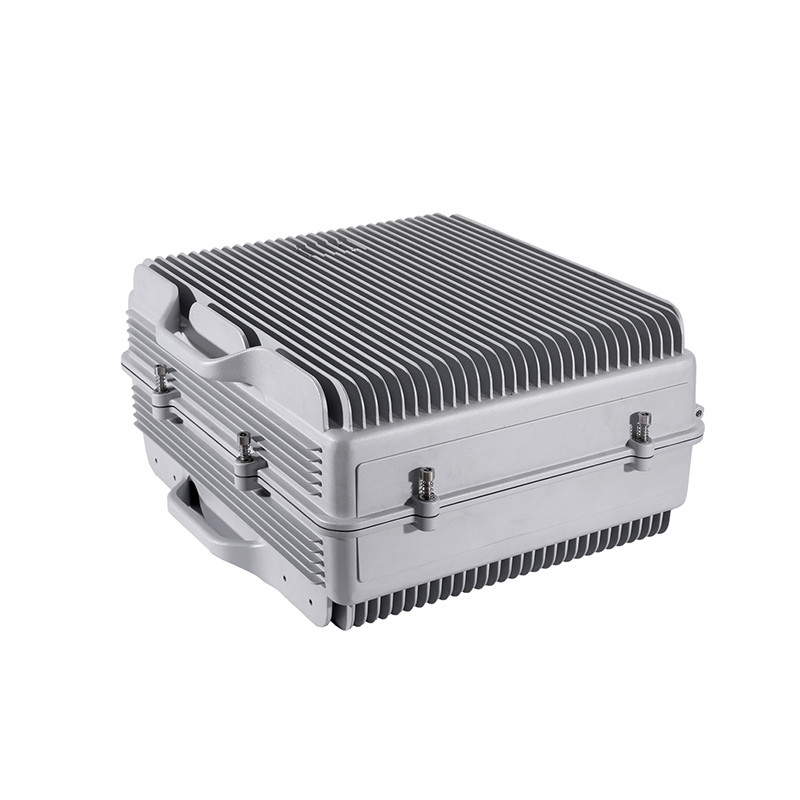

2G 3G 4G 5G Cell Phone Signal Booster Custom 800MHz 900MHz 2600MHz
2G 3G 4G 5G High Gain 800/900/2600MHz Signal Booster 5 Watt Customized Signal Amplifier
Product Detail:
Model No :AT-MS-800/900/2600
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 20) 800MHz -- Uplink frequency : 832 - 862MHz / Downlink frequency : 791 - 821MHz
(Band 8) 900MHz -- Uplink frequency : 890 - 915MHz / Downlink frequency : 925 - 960MHz
(Band 7) 2600MHz -- Uplink frequency : 2500 - 2570MHz / Downlink frequency : 2620 - 2690MHz
Network support : 2G 3G 4G 5G Voice
Gain : 90dB
Output power : 5watt
Power Supply : AC110V～220V; DC+24V 5A
Connector Type : N-F
Wide Range .
|
Single Band Repeater with AGC/MGC |
||||
|
Device Model |
AT-MS-880/900/1800 |
|||
|
Frenquecy Range 1 |
UplinK: 832-862MHz Downlink: 791-821MHz |
|||
|
Frenquecy Range 2 |
UplinK: 890-915MHz Downlink: 925-960MHz |
|||
|
Frenquecy Range 3 |
UplinK: 2500-2570MHz Downlink: 2620-2690MHz |
|||
|
Working System |
Band20 800MHz; Band8 900MHz; Band7 2600MHz |
|||
|
Gain |
90dB |
|||
|
Device Output Power |
37dBm |
|||
|
Bandwidth |
Wide Range |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+24V5A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
N/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP55X |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
5W 800+900+2600 Tri Band Repeater.pdf
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Free Frequency Combination:
Band 800 : Uplink : 824 - 849 MHz Downlink : 869 - 894 MHz (B20 800 available )
Band 900 : Uplink : 880 - 915 MHz Downlink : 925 - 960 MHz
Band 1800 : Uplink : 1710 - 1785 MHz Downlink : 1805 - 1880 MHz
Band 1900 : Uplink : 1850 - 1910 MHz Downlink : 1930 - 1990 MHz
Band 2100 : Uplink : 1920 - 1980 MHz Downlink : 2110 - 2170 MHz
Band 2300 : Uplink : 2305 - 2315 MHz Downlink : 2350 - 2360 MHz
Band 2600 : Uplink : 2500 - 2570 MHz Downlink : 2620 - 2690 MHz
Band Options : Single Band, Dual Band, Tri Band, Four Band, Free combinations
Output Power : 5W/10W/20W
Power Supply : AC adapter
Size : 308*219* 135mm
Weight : 7.0kg
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
FAQ:
Q1: Do you have CE or any other certification?
A: Yes,we CE, , ROHS certification,etc.
Q2: Can you give me a discount?
A: Please discuss with our sales.
Q3: What is our Payment methods ?
A: We agree T/T, Western Union, PayPal.L/C for old customers .
Q4: How about gain and output power of your device?
A: Different models, gain and output power are different,for more details, please contact us.
Q5: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
