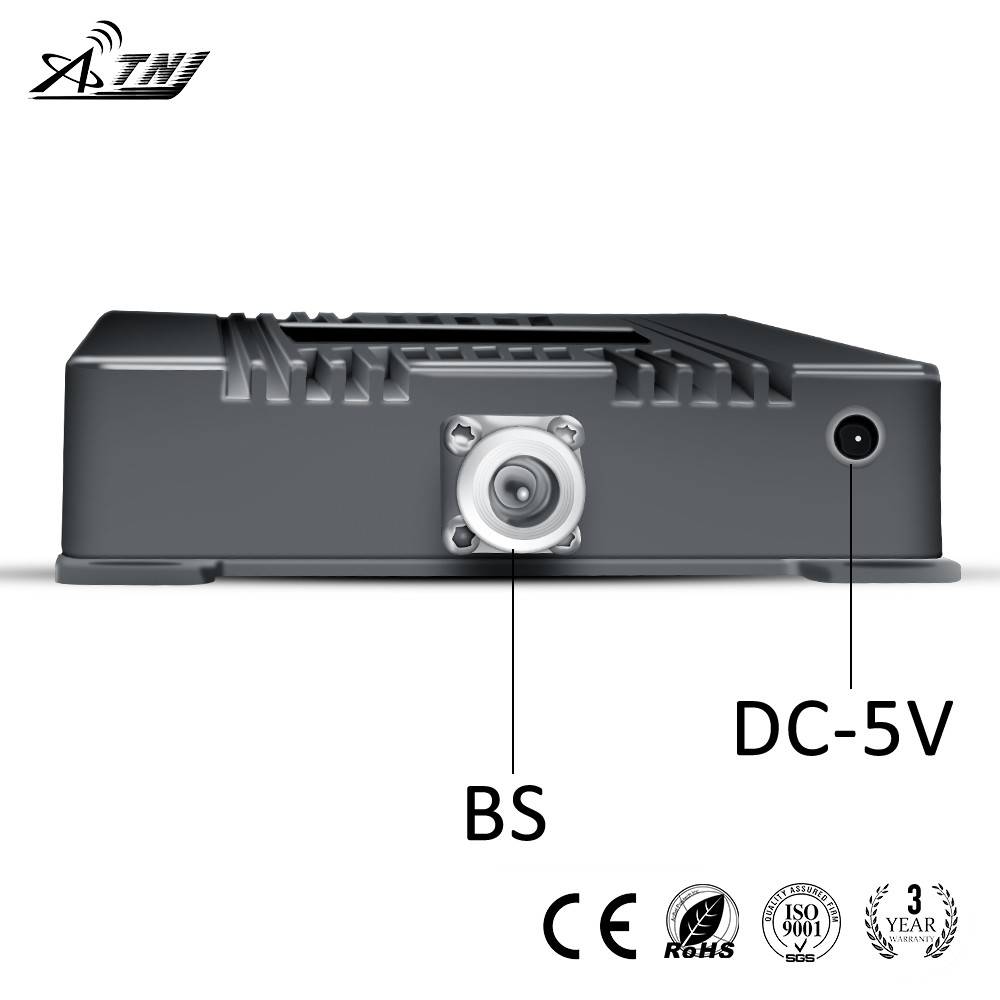

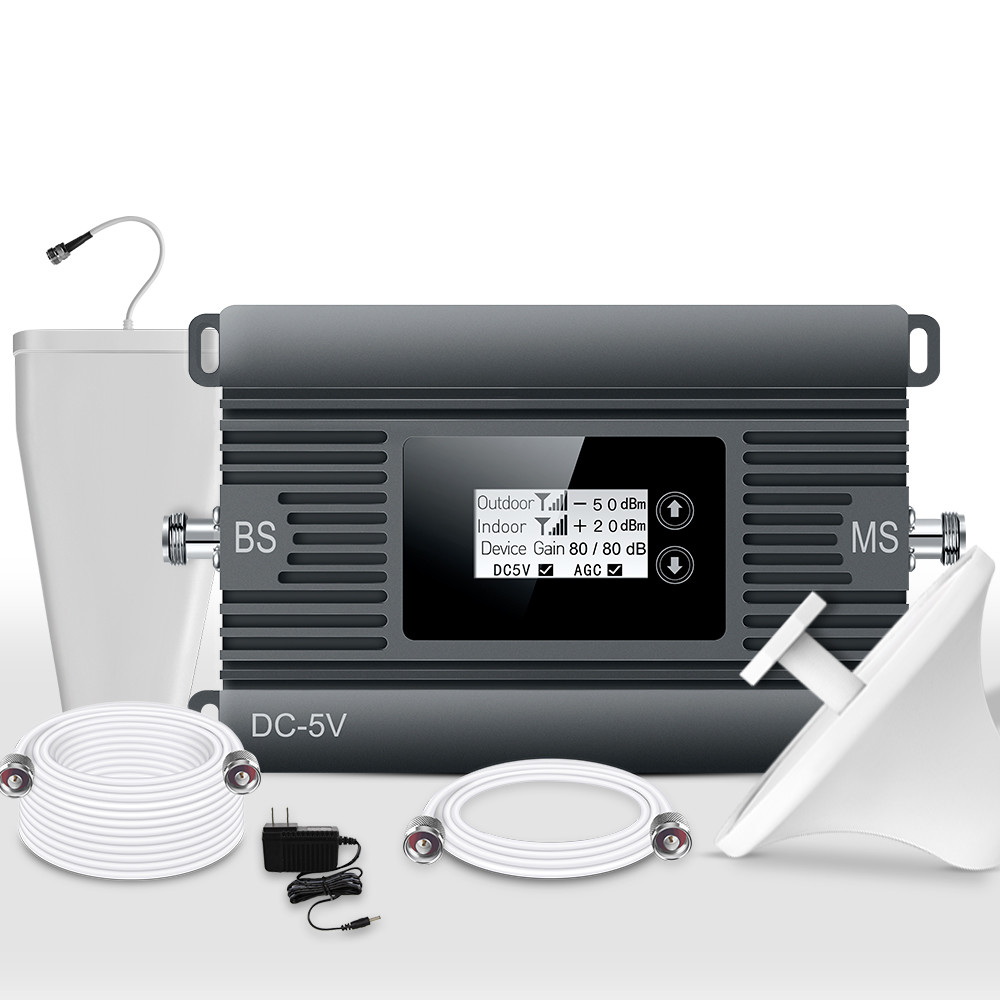

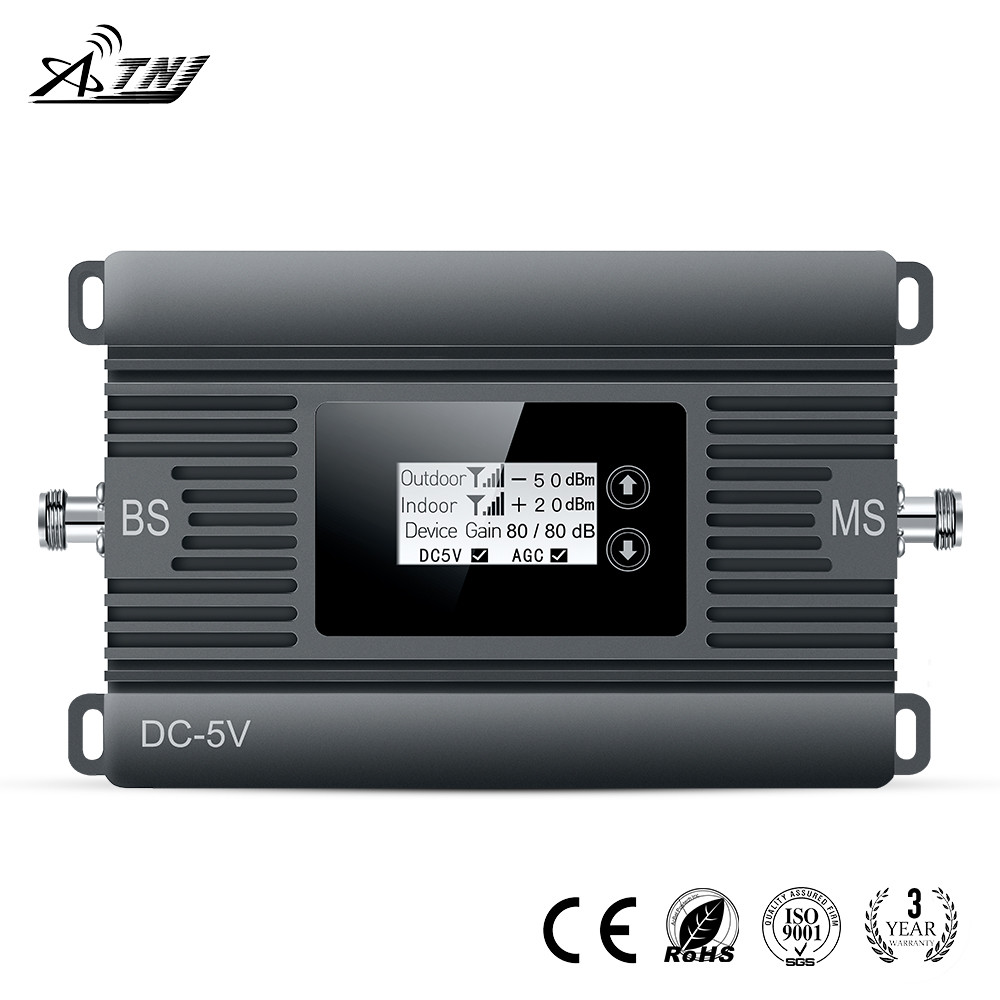

Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices

Product Details

Place of Origin: China

Brand Name: ATNJ

Certification: CE,ROHS,CCC,TUV,BV, ISO

Model Number: MS-W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD+100---120+kit

Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Delivery Time: 3-5 work days

Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability: 1000+unit+per day.

Get Best Price
Highlight:

80dB Cell Phone Signal Repeater

,

500sqm Cell Phone Signal Repeater

,

80dB Network Signal Booster

Frequency Range:
1920-1980MHz/2110-2170MHz
Gain:
80dB
Color:
Grey ,Customized
Packing Size:
52x21x16cm
Output Power:
23-27dbm
Coverage:
100~500sqm
Connector:
N-Female Connector
Products Type:
Mobile Signal Booster Sticker, 40db Signal Booster
Frequency Range:
1920-1980MHz/2110-2170MHz
Gain:
80dB
Color:
Grey ,Customized
Packing Size:
52x21x16cm
Output Power:
23-27dbm
Coverage:
100~500sqm
Connector:
N-Female Connector
Products Type:
Mobile Signal Booster Sticker, 40db Signal Booster
Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices

Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices



Cell Phone Booster Mobile Signal Repeater Ampilifier Single Band1



Features:

1. Cost effective solution for weak signal zones, reduce drop/off calls.

2. Compact size, low power consumption,

3. easy installation, great cover.

4. Expansion and extending of the signal of base station.

5. Optimization of the quality of the signal and source

6. Cover about 500~3000m² without block or obstruct.

7. Support any cellular devices (voice & data )

8. Wide band signal booster, or customize selective band booster.

Technical Specifications
Specifications Parameters
Frequency Range (Customers to Choose) Uplink 1920-1980MHz
Downlink 2110-2170MHz
Frequency Bandwidth (3dB Bandwidth) 30MHz
Gain 80dB
Automatic gain control (Step Attenuation) 31dB @ 1dB/ Step
Auto Gain Control 20dB Min.
Output Power(Customers to Choose) 27dBm
Spurious Emission ≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR ≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple ≤ 3dB
VSWR <=2
I/O Impedance 50 Ω
Noise Figure ≤ 5dB
System Delay ≤ 5μs
Network 3G
 Certification: ISO, RoHS, CE, CCC

Further detail pls click here for downloading the products specification:

WCDMA 2100MHz B011A Signal Repeater.pdf



Product Description
Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices 0
Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices 1Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices 2Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices 3Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices 4Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices 5

Gain 80dB Cell Phone Signal Repeater Support Any Cellular Devices 6ATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeaterATNJ Powerful DCS 1800MHz cellular signal booster 2G/4G phone repeater



We are manufacturer, and have our own factory.



FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
