Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-CPAWS
Document: 850+1700+1900 A013 Signal R...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+315---330+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
1700/2100MHz+850MHz+1900MHz |
Device Gain: |
65±2dB |
Device Output Power: |
17±2dBm |
Color For Choice: |
Black |
MGC Function: |
Done |
Device RF Connect Type: |
N/Female |
Device Power Supply: |
AC 220V/ DC5V/2A Power Adapter |
Lightning Protection:: |
With Lightning Protection |
Frequency Range: |
1700/2100MHz+850MHz+1900MHz |
Device Gain: |
65±2dB |
Device Output Power: |
17±2dBm |
Color For Choice: |
Black |
MGC Function: |
Done |
Device RF Connect Type: |
N/Female |
Device Power Supply: |
AC 220V/ DC5V/2A Power Adapter |
Lightning Protection:: |
With Lightning Protection |

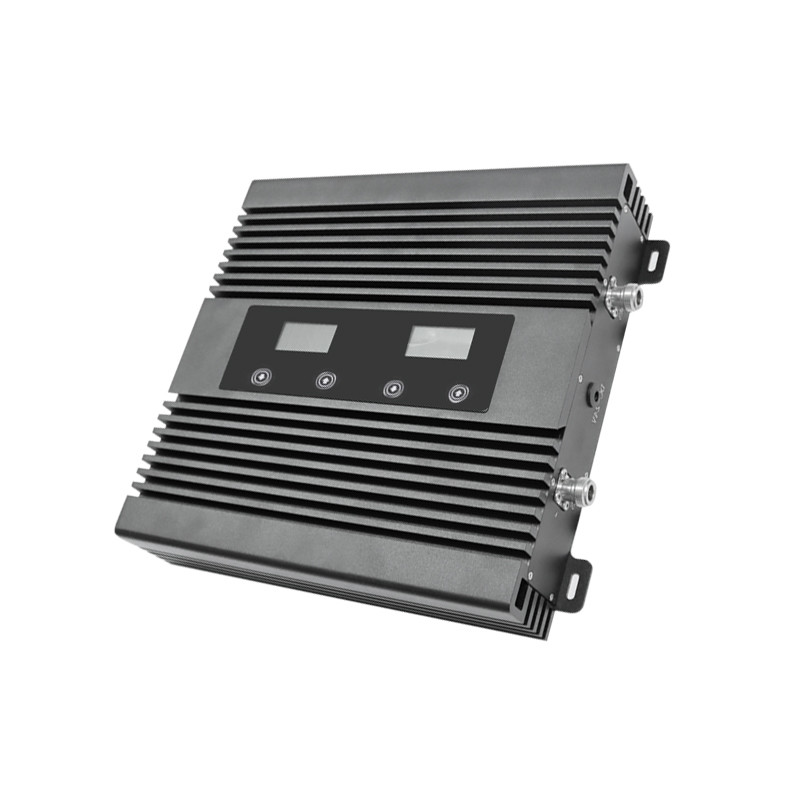

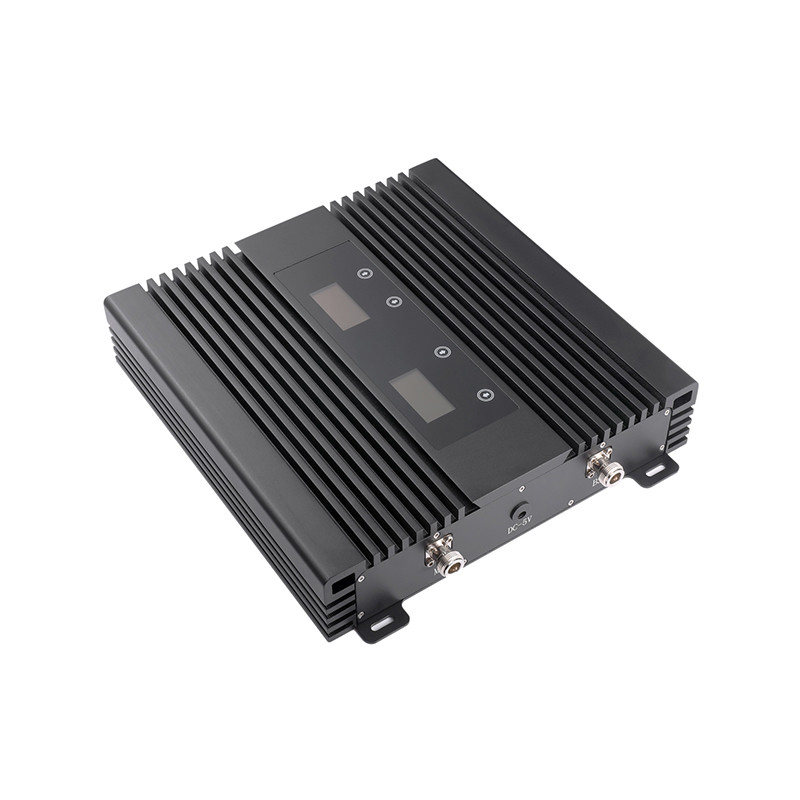

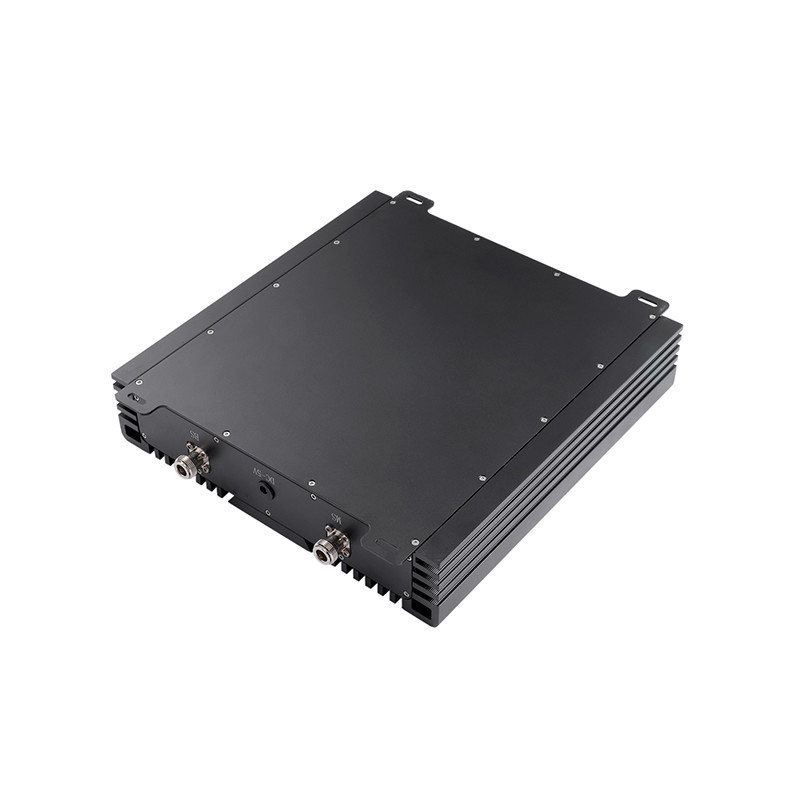

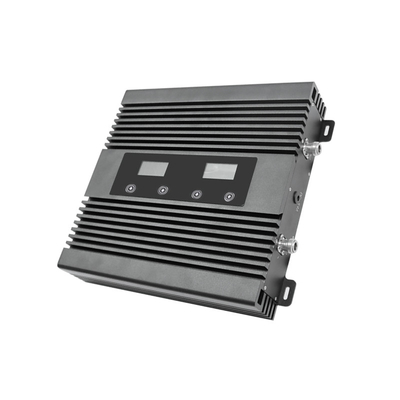

Tri Band 3G Signal Booster With CE ROHS CCC TUV BV ISO Certification
Tri Band Repeater Amplifier 850/1900/AWS1700/2100MHz Mobile Signal Booster
The Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Specification:
|
Frequency |
Uplink |
Downlink |
|||
|
CDMA 850MHz |
824-849MHz |
869-894MHz |
|||
|
PCS 1900MHz |
1890-1910MHz |
1930-1990MHz |
|||
|
AWS 1700/2100MHz |
1710-1755MHz |
2110-2155MHz |
|||
|
Max. Gain |
65dB±2dB |
65dB±2dB |
|||
|
Max. Output Power |
17dB±2dB |
17dB±2dB |
|||
|
Bandwidth |
25MHz&60MHz&45MHz |
||||
|
Ripple in Band |
≤ 8dB |
||||
|
Noise Figure |
≤ 6dB |
||||
|
VSWR |
≤ 2.0 |
||||
|
Spurious Emission |
9KHz~1GHz |
≤ -36dBm |
|||
|
1~12.75GHz |
≤ -30dBm |
||||
|
Time Delay |
≤ 1.5 μs |
||||
|
MTBF |
> 50000 hours |
||||
|
Impedance |
50 ohm |
||||
|
Power Supply |
AC 90-240V,DC 5V/6A |
||||
|
Power LCD |
Power indicator |
||||
|
Alarm LCD |
Guide |
Done |
|||
|
Detection |
Done |
||||
|
Mechanical Specification |
|||||
|
RF Connector |
N-F |
||||
|
Cooling |
Heatsink Convection cooling |
||||
|
Humidity |
< 90% |
||||
|
Operating Temperature |
-10°C ~ +55°C |
||||
|
Environment Conditions |
IP40 |
||||
|
Installation Type |
Wall Or Desk Installation |
||||
Further detail pls click here for downloading the products specification:
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. Cover about 500~3000m² without block or obstruct.
7. Support any cellular devices (voice & data )
8. Wide band signal booster, or customize selective band booster.
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
● If you are satisfied with our service and product,we would be very appreciated that you put us five stars and positive review. You could also recommend it to people who needs it.Thank you very much.
