Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: MS-W
Document: WCDMA 2100MHz B011A Signal ...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Frequency Range: |
According To Customer's Need,Uplink:1920-1980MHz,Downlink:2110-2170MHz |
Gain: |
80dB |
Color: |
Grey ,Customized |
Output Power: |
23-27dbm |
Coverage: |
100~500sqm |
Connector: |
N-Female Connector |
Certification: |
CE,RoHS And REACH Compliant By Exemption |
Products Type: |
Tetra Dmo Repeater, Cell Phone Booster For Home |
Frequency Range: |
According To Customer's Need,Uplink:1920-1980MHz,Downlink:2110-2170MHz |
Gain: |
80dB |
Color: |
Grey ,Customized |
Output Power: |
23-27dbm |
Coverage: |
100~500sqm |
Connector: |
N-Female Connector |
Certification: |
CE,RoHS And REACH Compliant By Exemption |
Products Type: |
Tetra Dmo Repeater, Cell Phone Booster For Home |

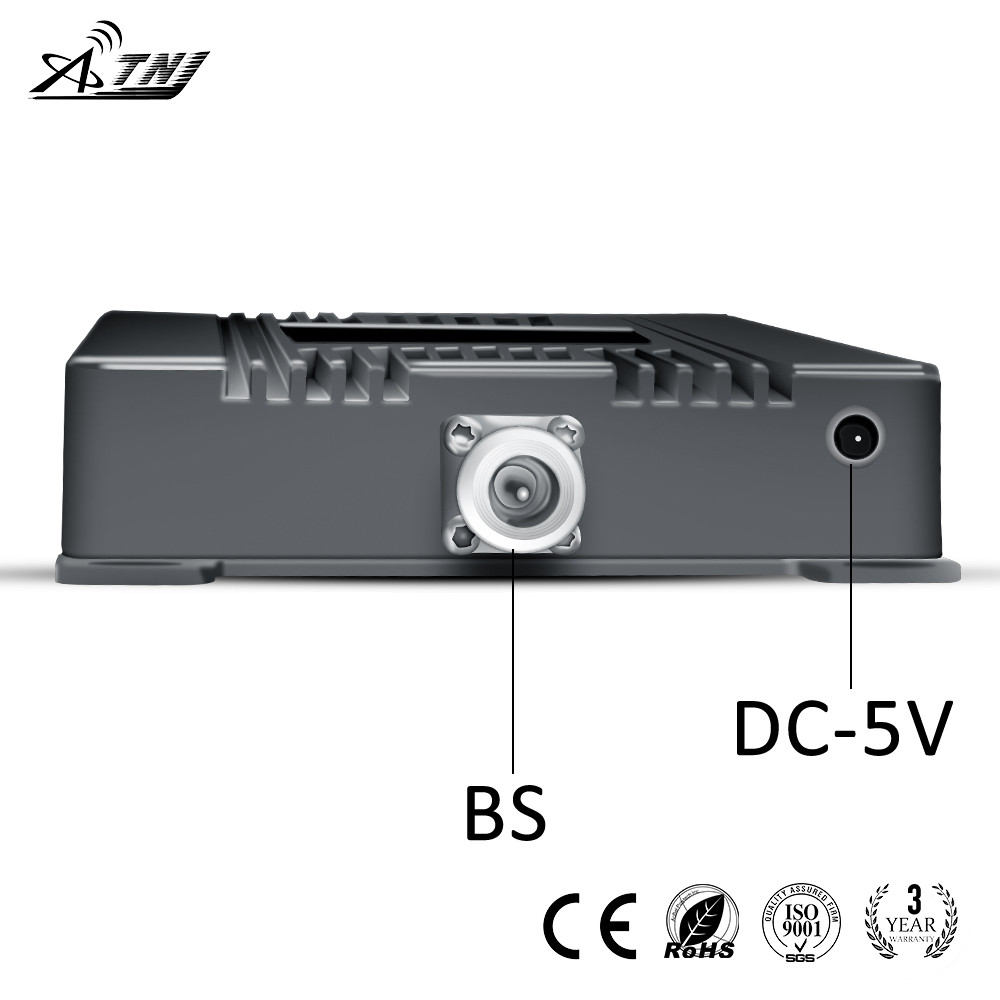

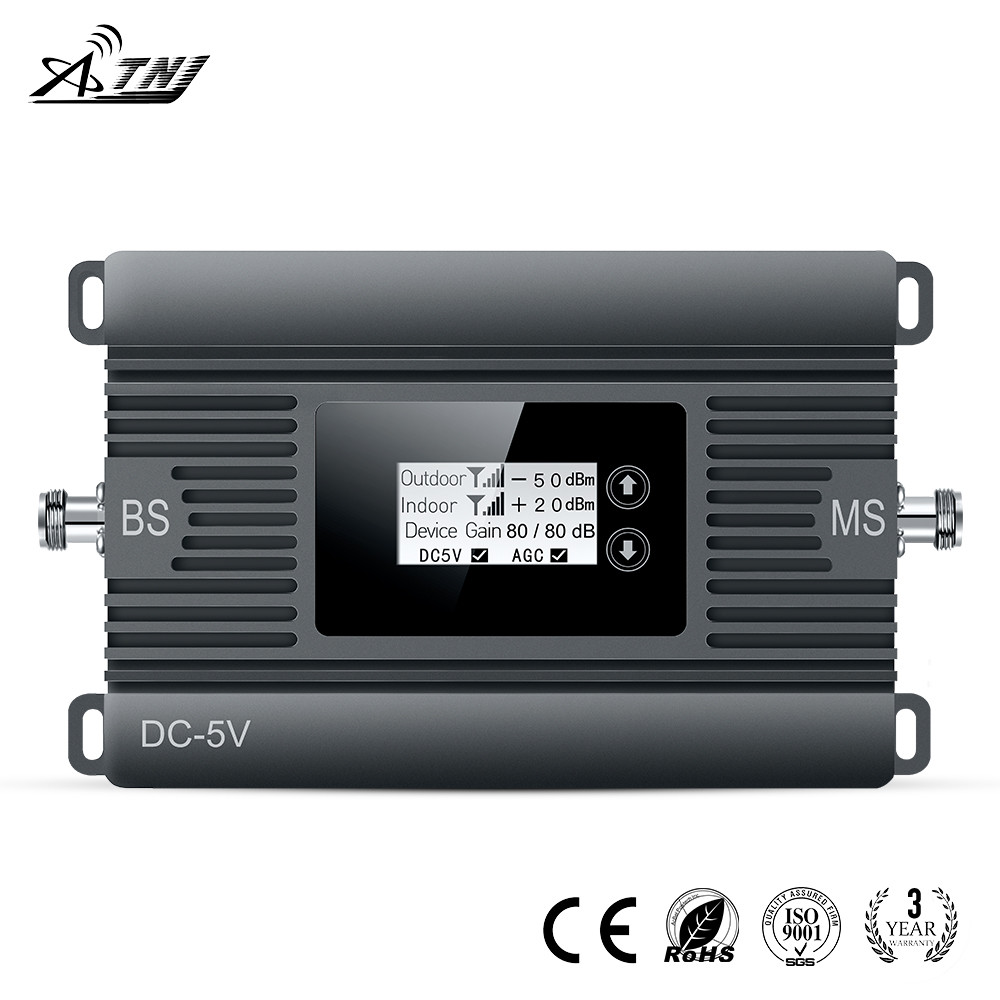

Single Band 2100MHz Mobile 4G Signal Repeater Ampilifier Antenna
Single Band 2100MHz Mobile Signal Repeater Ampilifier Booster 4g Signal Antenna
Product Description
GlobaL application ATNJ factory 2100MHz 3G signal repeater for your selection:
WCDMA 2100MHz 2G/3G Pico repeater is applied specifically in small area indoor DAS system. The base station signal is coupled and amplified by Pico repeater into in building system. The amplified signals is transmitted by indoor antenna. Meanwhile the indoor antenna receives the cell phone signal, and send the signal to the base station as uplink. This method can eliminate the signal dead spot, reject the interference, provide the stable signal communication for cell phone users. This Pico repeater mainly solves the problem spot problem in building. The coverage area is as large as 3000 square meters in open space, and 1000 square meters in partial obstacle area, 500 square meters in complete obstacle area. The edge power level for coverage area is above 85dBm. The repeater output power level is less than 20dBm.
Pico Repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection.
Pico Repeater can be deployed in indoor coverage and dead area. It is especially advantageous to use in 100M2-1000M2,which is a very economical solution. The output power is up to 20dBm per carrier.
Meanwhile, it can also boost the speed of GPRS.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1920-1980MHz |
|
Downlink |
2110-2170MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
I/O Impedance |
50 Ω |
|
|
Network |
3G4G |
|
|
Certification: |
ISO, RoHS, CE, CCC |
|
Further detail pls click here for downloading the products specification:
WCDMA 2100MHz B011A Signal Repeater.pdf
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. Cover about 500~3000m² without block or obstruct.
7. Support any cellular devices (voice & data )
8. Wide band signal booster, or customize selective band booster.
Product Description
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
Please feel free to contact us if there are any other questions.
