| Brand Name: | ATNJ |
| Model Number: | AT-MS-2600 |
| MOQ: | 5Pcs |
| Price: | USD+1100--1300+kit |
| Packaging Details: | Standard neutral packing |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

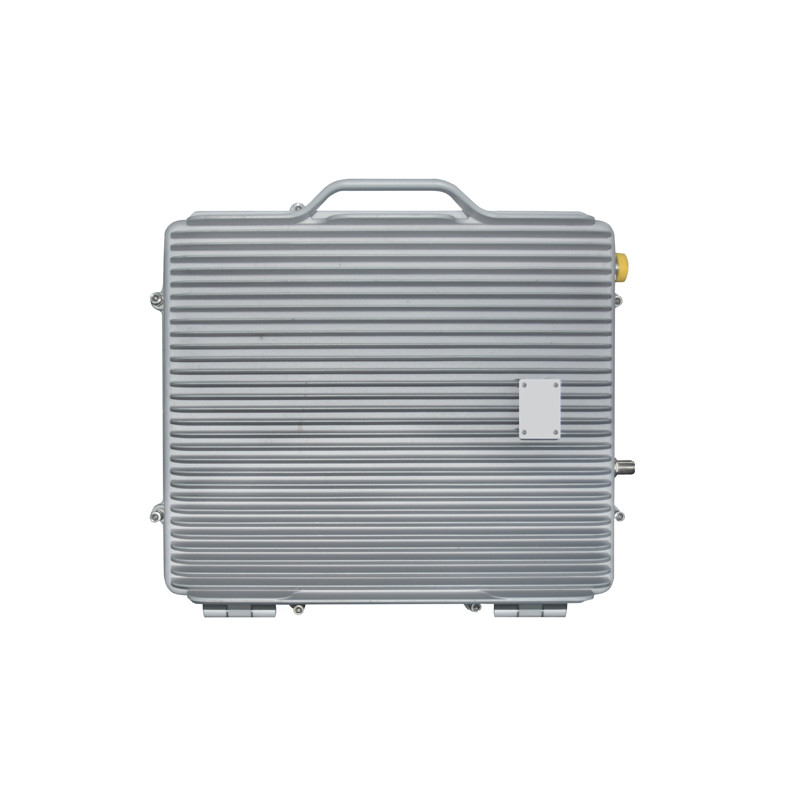

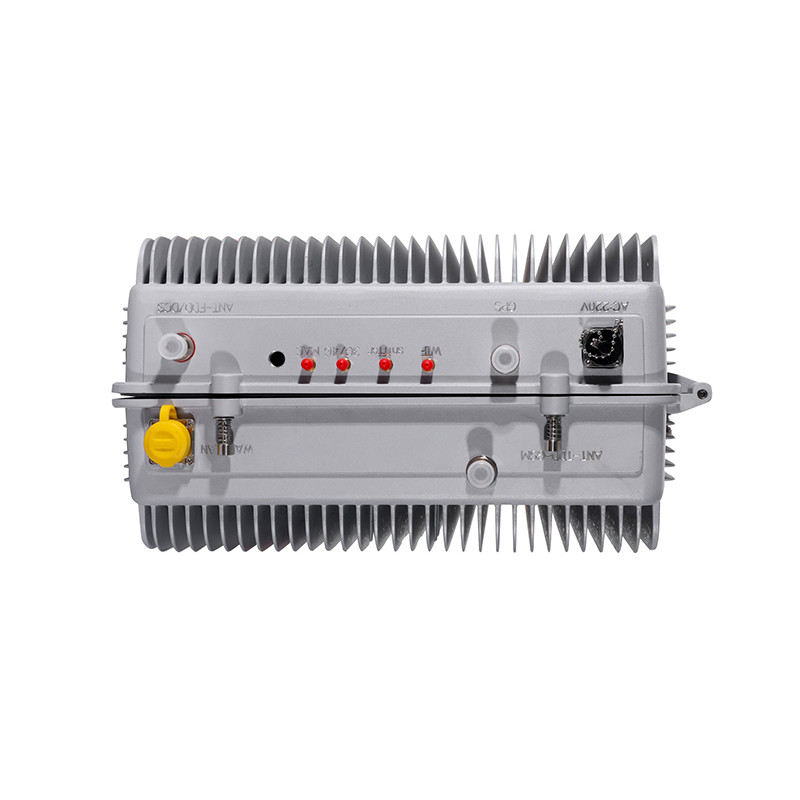

Customized 5 Watt LTE 2600MHz 4G Signal Repeater Cell Tower Booster
5 Watt Customized LTE 2600MHz 4G Signal Repeater Cell Tower Signal Booster Amplifier
Model No :AT-MS-2600
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 7) 2600MHz -- Uplink frequency : 2500 - 2570MHz / Downlink frequency : 2620 - 2690MHz
Network support : 4G Voice
Gain : 90dB
Output power : 5watt
Power Supply : AC110V～220V; DC+24V 5A
Connector Type : N-F
Wide Range .
|
Single Band Repeater with AGC/MGC |
||||
|
Device Model |
AT-MS-2600 |
|||
|
Frenquecy Range |
UplinK:2500-2570MHz Downlink:2620-2690MHz |
|||
|
Working System |
Band7 LTE 2600MHz |
|||
|
Gain |
90dB |
|||
|
Device Output Power |
37dBm |
|||
|
Bandwidth |
Wide Range |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+24V5A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
N/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP55X |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
5W 2600MHz High Power Signal Repeater.pdf
Selling Point
One device connects with several antennas to cover large area
1. Wide Coverage Up To 3000 ㎡.
2. Max Output Power:33dBm Support 2 to 5 Bands .
3. Industrial Design IP65 level waterproof .
4. Full Intelligent LCD Guide .
5. Three years warranty,worry-free after-sales .
Output Power : 5W/10W/20W
Power Supply : AC adapter
Size : 308*219* 135mm
Weight : 7.0kg
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
|
