Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-MS-1800
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+1100--1200+kit
Packaging Details: Standard neutral packing
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
1800MHz Frequency Range: |
1710-1785MHz , 1805-1880MHz |
Booster Gain: |
90±2dB |
Booster Power: |
33dBm |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
2G, 4G, Voice |
Booster Warranty: |
3 Years |
Products Type: |
Repeater 1800MHz, Amplificador 4g Celular |
1800MHz Frequency Range: |
1710-1785MHz , 1805-1880MHz |
Booster Gain: |
90±2dB |
Booster Power: |
33dBm |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
2G, 4G, Voice |
Booster Warranty: |
3 Years |
Products Type: |
Repeater 1800MHz, Amplificador 4g Celular |
5 Watt 1800MHz 4G Repeater Booster Mobile Phone Network Enhancer
5 Watt Customized 1800MHz 4G Signal Repeater Signal Enhancer For Mobile Phone Amplifier
Product Detail:
Model No : AT-MS-1800
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 3) 1800MHz -- Uplink frequency : 1710 - 1785MHz / Downlink frequency : 1805 - 1880MHz
Network support : 2G 4G Voice
Gain : 90dB
Output power : 5watt
Power Supply : AC110V～220V; DC+24V 5A
Connector Type : N-F
Wide Range .
|
Single Band Repeater with AGC/MGC |
||||
|
Device Model |
AT-MS-1800 |
|||
|
Frenquecy Range |
UplinK:1710-1785MHz Downlink:1805-1880MHz |
|||
|
Working System |
Band3 DCS 1800MHz |
|||
|
Gain |
90dB |
|||
|
Device Output Power |
37dBm |
|||
|
Bandwidth |
Wide Range |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+24V5A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
N/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP55X |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
5W 1800MHz High Power Signal Repeater.pdf
Selling Point
LCD Display.
Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.
Sleep mode.
In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.
Automatic adjustment of operation.
Amplifier can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.
Free Frequency Combination:
Band 800 : Uplink : 824 - 849 MHz Downlink : 869 - 894 MHz (B20 800 available )
Band 900 : Uplink : 880 - 915 MHz Downlink : 925 - 960 MHz
Band 1800 : Uplink : 1710 - 1785 MHz Downlink : 1805 - 1880 MHz
Band 1900 : Uplink : 1850 - 1910 MHz Downlink : 1930 - 1990 MHz
Band 2100 : Uplink : 1920 - 1980 MHz Downlink : 2110 - 2170 MHz
Band 2300 : Uplink : 2305 - 2315MHz Downlink : 2350 - 2360 MHz
Band 2600 : Uplink : 2500 - 2570 MHz Downlink : 2620 - 2690 MHz
Band Options : Single Band, Dual Band, Tri Band, Four Band, Free combinations
Output Power : 5W/10W/20W
Power Supply : AC adapter
Size : 308*219* 135mm
Weight : 7.0kg

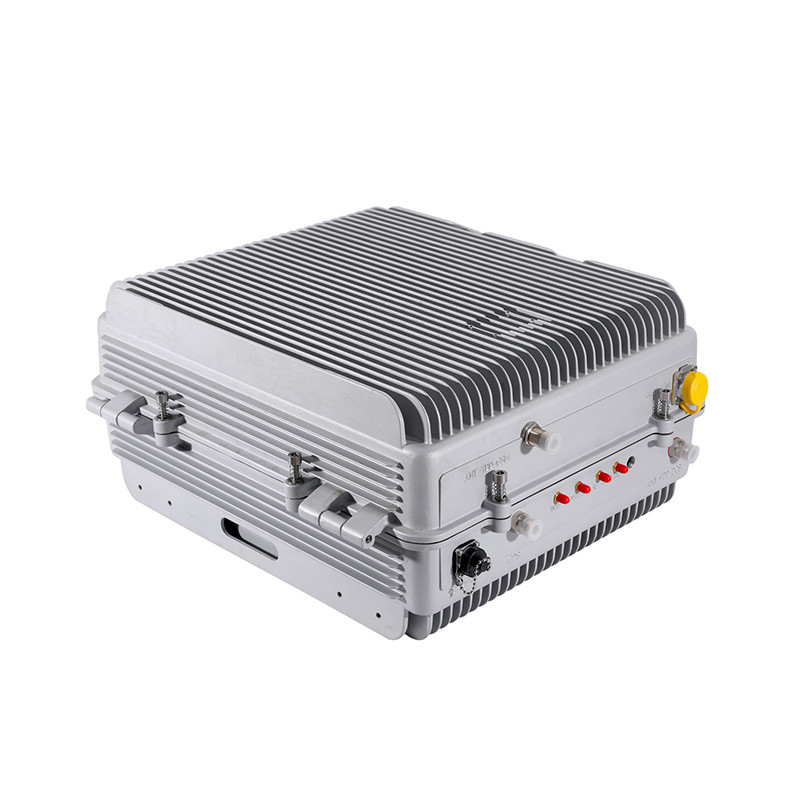

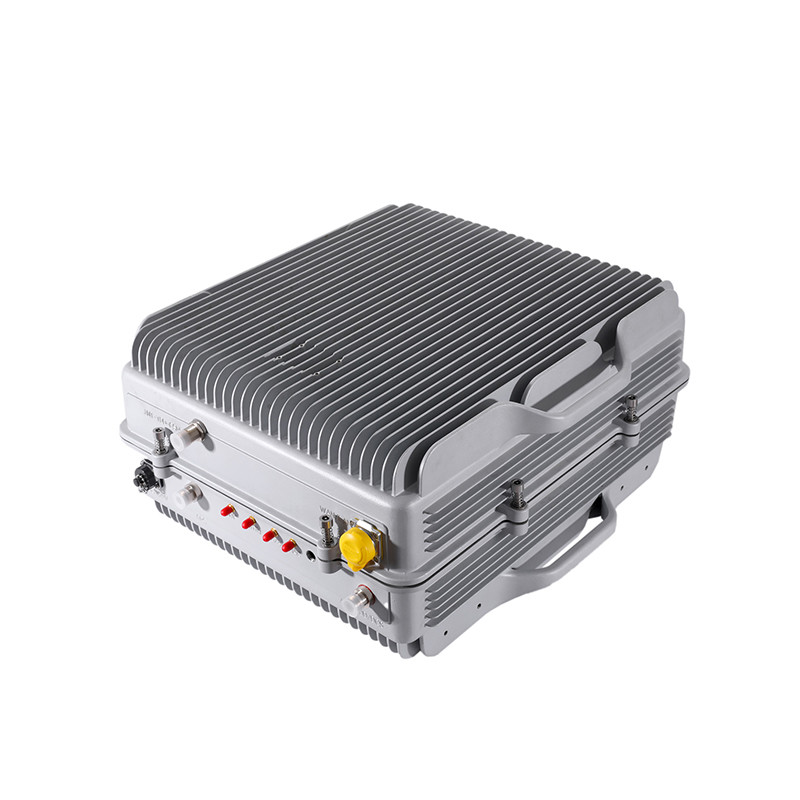

Product Pictures
FAQ:
1. Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
3. Q: After installed booster signal not be very good, indoor signal coverage very small.
Solution 1: Adjust outdoor antenna's location and direction.
Solution 2: Check whether cable connected well.
Solution 3: Put more higher receiving antenna's position, which can received more good signal.
Solution 4: Change another bigger power booster.
Solution 5: Change another high gain receiving antenna.
4. Q: Work good for long time, suddenly signal bad
Solution 1: Check outdoor cable connectors whether flooding water.
Solution 2: Check power lights whether working normal.
