Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-MS-AWS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+1100--1300+kit
Packaging Details: Standard neutral packing
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
1700MHz Frequency Range: |
1710-1755MHz，2110-2155MHz |
Booster Gain: |
90dB |
Booster Power: |
≥33dBm |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
4G, Voice |
Booster Warranty: |
3 Years |
Products Type: |
4G Signal Repeater, 17002100mhz Mobile Signal Booster |
1700MHz Frequency Range: |
1710-1755MHz，2110-2155MHz |
Booster Gain: |
90dB |
Booster Power: |
≥33dBm |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range |
Support Network: |
4G, Voice |
Booster Warranty: |
3 Years |
Products Type: |
4G Signal Repeater, 17002100mhz Mobile Signal Booster |
High Gain 90dB 1700MHz 4G Mobile Signal Booster For Home Amplifier
5 Watt Customized 1700MHz 4G Signal Repeater Cellular Phone Booster For Home Amplifier
Product Detail:
Model No : AT-MS-AWS
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 4) 1700MHz -- Uplink frequency : 1710 - 1755MHz / Downlink frequency : 2110 - 2155MHz
Network support : 4G Voice
Gain : 90dB
Output power : 5watt
Power Supply : AC110V～220V; DC+24V 5A
Connector Type : N-F
Wide Range .
|
Single Band Repeater with AGC/MGC |
||||
|
Device Model |
AT-MS-AWS |
|||
|
Frenquecy Range |
UplinK:1710-1755MHz Downlink:2110-2155MHz |
|||
|
Working System |
Band4 AWS 1700MHz |
|||
|
Gain |
90dB |
|||
|
Device Output Power |
37dBm |
|||
|
Bandwidth |
Wide Range |
|||
|
Ripple in Band |
≤4dB |
|||
|
Noise Figure @ Max.Gain |
≤6dB |
|||
|
V.S.W.R |
≤2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+24V5A |
|||
|
Power Comsumption |
<20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
N/F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP55X |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
5W 1700MHz High Power Signal Repeater.pdf
Selling Point
LCD Display.
Even a non-technical person can easily install and use this signal booster. The display shows all important information and prompts: input and output signal strength, installation details, power, AGC (automatic gain control), etc.
Sleep mode.
In the absence of incoming and outgoing calls and data transmission over the Internet, the LCD amplifier goes into sleep mode. This function helps to save energy.
Automatic adjustment of operation.
Amplifier can adjust the system gain and signal level. All this helps to avoid self-excitation of the device. If a problem occurs, the device will turn off automatically.
Output Power : 5W/10W/20W
Power Supply : AC adapter
Size : 308*219* 135mm
Weight : 7.0kg
Product Feature
1. High output 5W, stable fast speed signal, perfect for large area or high building signal improving
(can reduce device quantity, and for easy adjustment and maintain )
2. Pretty easy installation
3. Die cast aluminum alloy out shell for efficient heat dissipation, waterproof, dust proof, IP55 level;Also reduce signal interference from outside, reduce electromagnetic radiation
4. Energy Saving: when no phone signal detected around, it will go to the dormancy status automatically;when there is phone signal around, it will go to work in 0.2 second.
5. Upgrade intelligent WTR chip integrated circuit, reduce the attenuation, with higher load, faster speed
6. Free settings depends on environment, Max 6000sqm

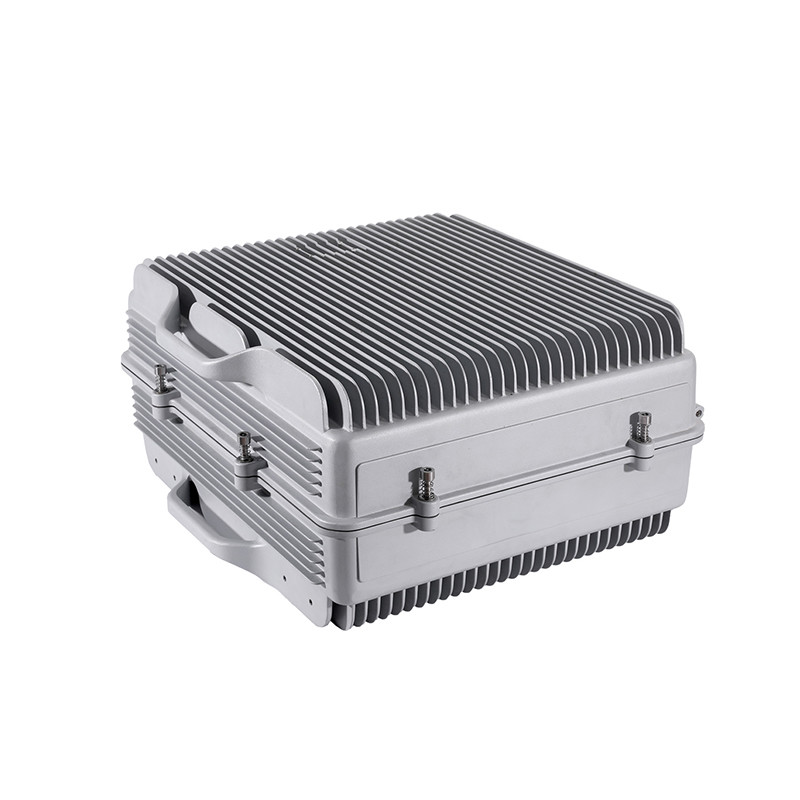

Product Pictures
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possibel.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years gaurantee period for our booster,it is ioly 3 months for thr accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
FAQ:
1. Q: Why choose us for cooperation?
A: We have the professional engineer to develop and make them suit for all over the world.we also will deal with all the problem when you have problem and reply to you at any time.
2. Q: Can this mobile signal repeater create a signal where there is no cell signal before?
A: The mobile signal repeater cannot produce a signal, only amplify a weak one.
3. Q: After installed booster signal not be very good, indoor signal coverage very small.
Solution 1: Adjust outdoor antenna's location and direction.
Solution 2: Check whether cable connected well.
Solution 3: Put more higher receiving antenna's position, which can received more good signal.
Solution 4: Change another bigger power booster.
Solution 5: Change another high gain receiving antenna.
4. Q: Work good for long time, suddenly signal bad
Solution 1: Check outdoor cable connectors whether flooding water.
Solution 2: Check power lights whether working normal.
