Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AS-BS-G
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+120---130+kit
Packaging Details: Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Booster Gain: |
68±2dB |
Booster Power: |
17--20dBm |
Frequency Range: |
890-915MHz，935-960MHz |
Connector Type:: |
SMA/F |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range,Supports 10MHz From 0.2 To 10MHz Bandwidth Adjusted |
Support Network: |
2G Voice |
Trademark: |
ATNJ |
Booster Gain: |
68±2dB |
Booster Power: |
17--20dBm |
Frequency Range: |
890-915MHz，935-960MHz |
Connector Type:: |
SMA/F |
Material: |
Zinc Alloy ,Plastic |
Booster Bandwidth: |
Wide Range,Supports 10MHz From 0.2 To 10MHz Bandwidth Adjusted |
Support Network: |
2G Voice |
Trademark: |
ATNJ |
70dB Gain 2G Voice Mobile GSM Signal Booster With ALC AGC Function
GSM Mobile Signal Booster 2G Repeater Amplifier
Digital GSM Band8 GSM 900MHz Band Selected Mobile Signal Repeater Amplifier
Product Detail:
Model No :AS-BS-G
With ALC AGC Function
Can control gain automatically. Avoid base station interference
(Band 8) 900MHz -- Uplink frequency: 890-915MHz/Downlink frequency : 935-960MHz
Network support : 2G Voice
Gain :68±2dB
Power Supply :AC110V～220V;DC+5V/2A
Connector Type: SMA-F
Wide Range,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted
Features:
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption,
3. easy installation, great cover.
4. Expansion and extending of the signal of base station.
5. Optimization of the quality of the signal and source
6. Cover about 500~3000m² without block or obstruct.
7. Support any cellular devices (voice & data )
8. Wide band signal booster, or customize selective band booster.
|
Single Band Repeater with AGC/MGC |
||||
|
Model |
AS-BS-G |
|||
|
Frenquecy Range |
UplinK:890~915MHz Downlink:935~960MHz |
|||
|
Working System |
Band8 GSM 900MHz |
|||
|
Gain |
70dB |
|||
|
Device Output Power |
17-20dBm |
|||
|
Bandwidth |
Wide Range,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted |
|||
|
Ripple in Band |
≤ 4dB |
|||
|
Noise Figure @ Max.Gain |
≤ 6dB |
|||
|
V.S.W.R |
≤ 2dB |
|||
|
MTBF |
>50000Hours |
|||
|
Power Supply |
AC110V～220V;DC+5V/2A |
|||
|
Power Comsumption |
< 20W |
|||
|
Impedance Matching |
50ohm |
|||
|
Mechanical Specification |
||||
|
RF Connector |
SMA / F |
|||
|
Cooling |
Heatsink Convection Cooling |
|||
|
Dimension |
170*130*26(mm) |
|||
|
Net Weight |
0.35KG |
|||
|
Installation Type |
Wall Installation or Desk |
|||
|
Environment Conditions |
IP40 |
|||
|
Origin |
Shenzhen |
|||
|
Operating Temperature |
-10°C~55°C |
|||
Further detail pls click here for downloading the products specification:
GSM 900MHz B07 Signal Repeater.pdf

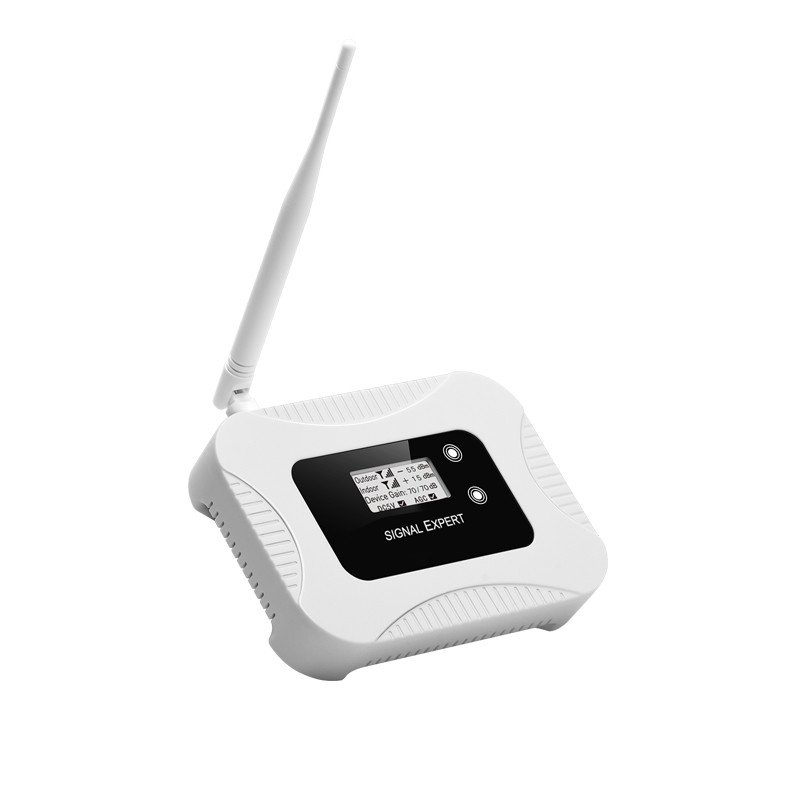

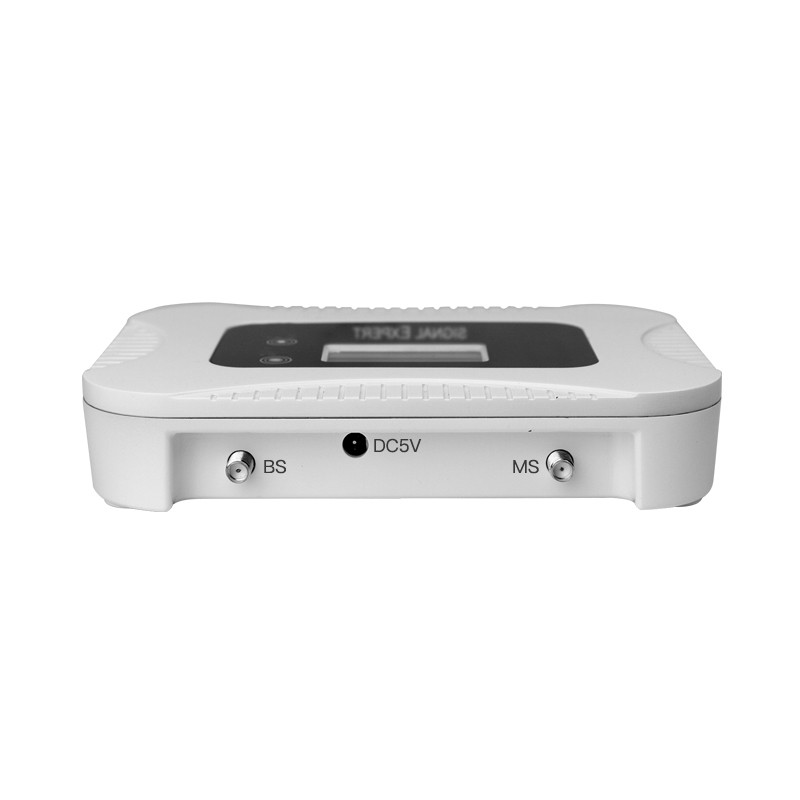

Product Pictures
FAQ
1. What is your advantage?
---Your inquiry will be replied in 24hours .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 36months guarantee .
2. What is our Payment methods?
We agree T/T, Western Union, PayPal.L/C for old customers.
3. What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. What is our Warranty and Certificates?
Our warranty is 36 months .
We have CE, ROHS, FCC certificates .
5. Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
Please feel free to contact us if any other questions.
