Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-850/1900
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+75---85+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 1-3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
850MHz Frequency Range: |
824-849MHz / 869-894MHz |
1900MHz Frequency Range: |
1850-1910MHz / 1930-1990MHz |
Products Type: |
Cellular Amplifier |
Color: |
Black & Customized |
Warranty: |
36 Months |
Weight: |
4kg |
Packing Size: |
52x21x16cm |
850MHz Frequency Range: |
824-849MHz / 869-894MHz |
1900MHz Frequency Range: |
1850-1910MHz / 1930-1990MHz |
Products Type: |
Cellular Amplifier |
Color: |
Black & Customized |
Warranty: |
36 Months |
Weight: |
4kg |
Packing Size: |
52x21x16cm |

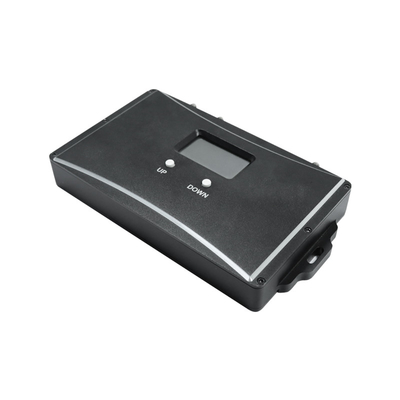

Dual Band 850MHz 1900MHz Mobile Signal Boosters Cell Phone Amplifier
Dual Band Cell Phone Repeater Mobile Signal Booster 850 / 1900MHz 2G 3G 4G Amplifier
Selling Point
1. Smart LCD: Show the real-time signal strength.
2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-27dB.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
824-849MHz, 1850-1910MHz |
|
Downlink |
869-894MHz, 1930-1990MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
25MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
850+1900MHz AT005 mobile signal booster.pdf
Product Description
With ALC AGC Function
Can control gain automatically. Avoid base station interference
Network support : CDMA 2/3G + PCS 3/4G
Gain : 70dB
Connector Type : SMA-female connector
Technique supporting:
1. If still no signal receipt after activated repeater,please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70dBm.
2. If cannot call out,please adjust the direction of outdoor antenna.
3. If the strength is not steady,please check if outdoor and indoor antennas are too close;please ensure the outdoor antenna and indoor antenna have distance of 20meters at least,with a wall between and not in a same horizontal line.

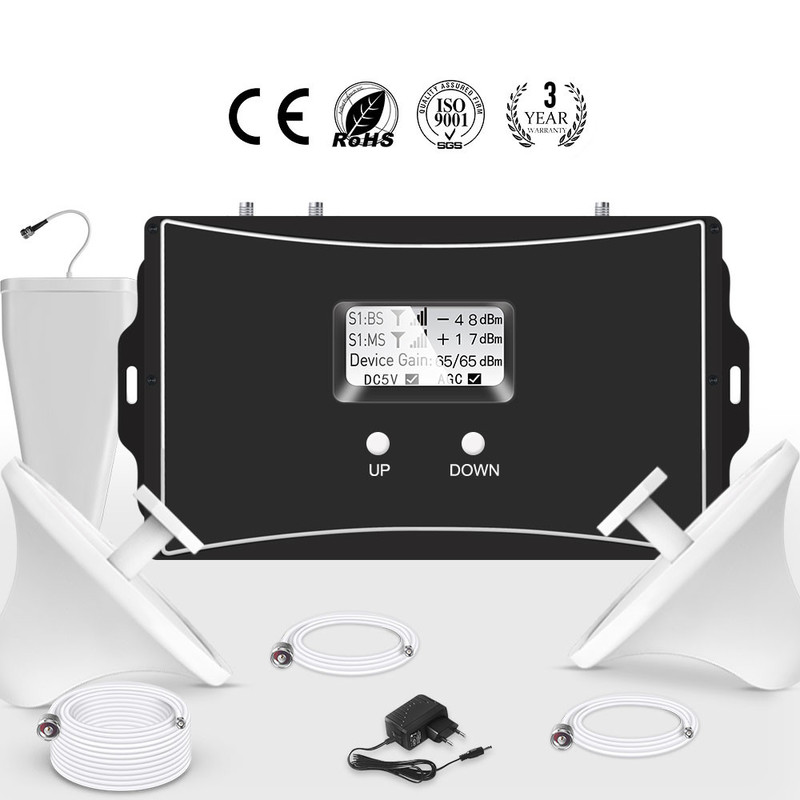

Accessories
a. One dual band signal booster;
b. Two indoor antenna;
c. One outdoor antenna;
d. 20meter cable and 5meter cable;
e. User manual;
f. Power adapter.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
