Product Details:
|
| Certification: | CE,RoHS And REACH Compliant By Exemption | Frequency Range: | 1920-1980MHz/2110-2170MHz |
|---|---|---|---|
| Gain: | 80dB | Color: | Grey ,Customized |
| ALC Intelligent Function: | Done | Output Power: | 23-27dbm |
| Connector: | N-Female Connector | Products Type: | Signal Amplifier |
| Highlight: | 80dB 3G 4G Signal Booster,ROHS 2100MHz 3G 4G Booster,80dB 3G 4G Network Booster |
||

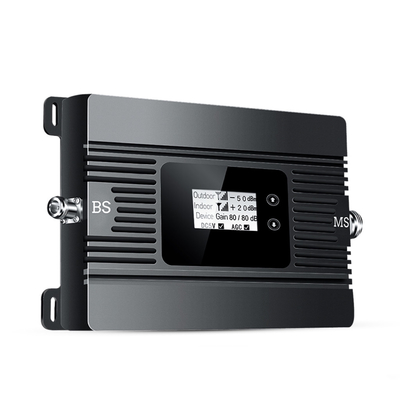

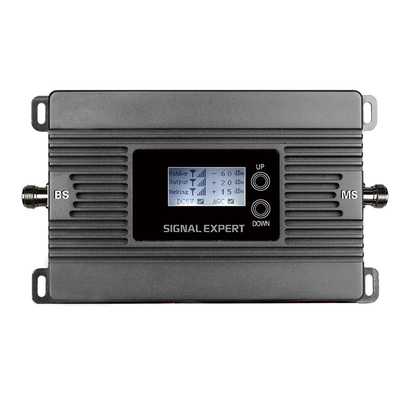

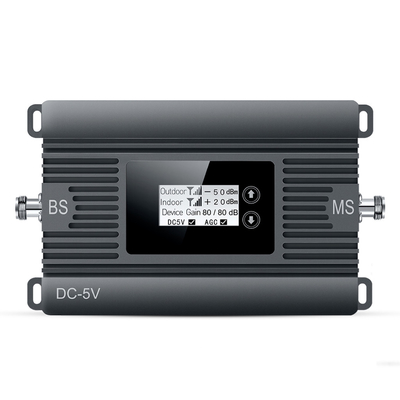

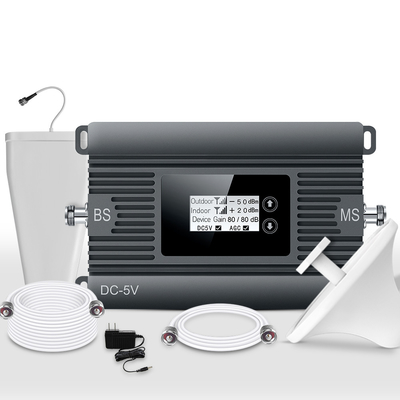

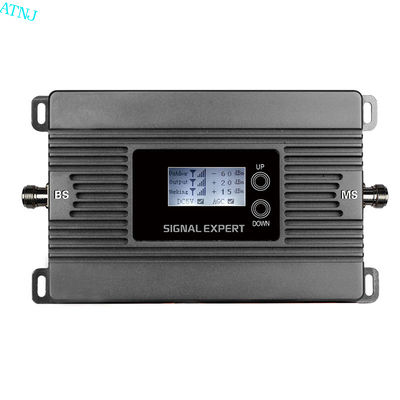

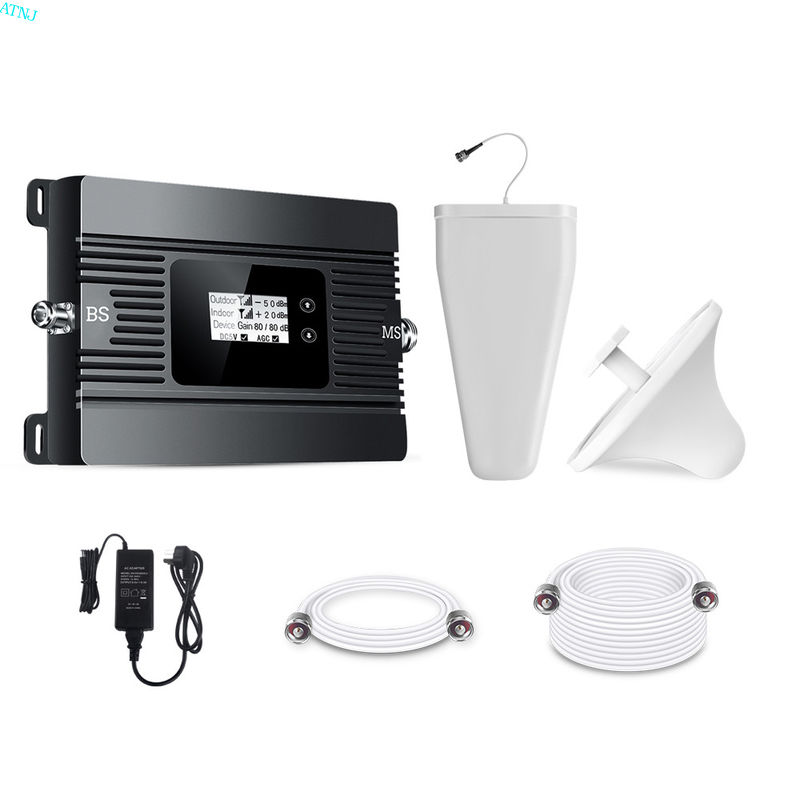

Single Band 2100MHz 80dB 3G 4G Signal Booster Repeater Ampilifier
Mobile Signal Repeater Ampilifier Single Band 2100MHz Cell Phone Booster 3G 4G
Product Description
GlobaL application ATNJ factory 2100MHz 3G signal repeater for your selection:
WCDMA 2100MHz 2G/3G Pico repeater is applied specifically in small area indoor DAS system. The base station signal is coupled and amplified by Pico repeater into in building system. The amplified signals is transmitted by indoor antenna. Meanwhile the indoor antenna receives the cell phone signal, and send the signal to the base station as uplink. This method can eliminate the signal dead spot, reject the interference, provide the stable signal communication for cell phone users. This Pico repeater mainly solves the problem spot problem in building. The coverage area is as large as 3000 square meters in open space, and 1000 square meters in partial obstacle area, 500 square meters in complete obstacle area. The edge power level for coverage area is above 85dBm. The repeater output power level is less than 20dBm.
Pico Repeater is a bi-directional amplifier that allows for the reception of signals, amplifies the signal and re-transmits into areas where there is no or very low signal level coverage enabling a mobile user to establish a call connection.
Pico Repeater can be deployed in indoor coverage and dead area. It is especially advantageous to use in 100M2-1000M2,which is a very economical solution. The output power is up to 20dBm per carrier.
Meanwhile, it can also boost the speed of GPRS.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1920-1980MHz |
|
Downlink |
2110-2170MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
I/O Impedance |
50 Ω |
|
|
Network |
3G |
|
|
Trademark |
ATNJ |
|
Further detail pls click here for downloading the products specification:
WCDMA 2100MHz B011A Signal Repeater.pdf
Products Spect:
Signal Booster Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
Product Description
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
