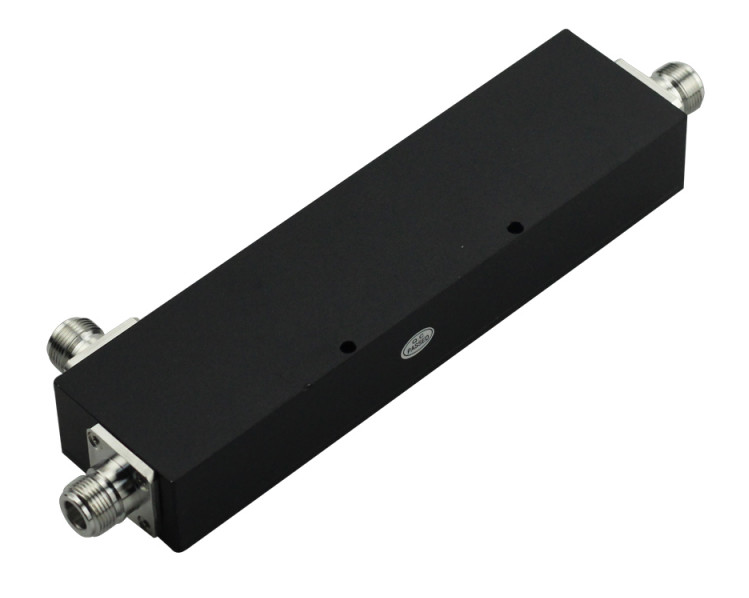

RF N Female 6dB Directional Coupler For Mobile Phone Signal Repeater
| Model Number: | 700-2700MHz Coupler | Frequency: | 700-2700MHz |
| In-band Ripple: | ±0.8db | Connector: | N-Female |
| VSWR:: | <1.25 | Insertion Loss: | ≤1.7db |
| Power Rating: | 300W | Coupling: | 6dB |
| Impedance: | 50Ω | Products name: | Cell Booster |
| High Light: | 6dB Directional Coupler,N Female 6dB Coupler,6dB RF Coupler |
||
RF N Female 6dB Directional Coupler For Mobile Phone Signal Repeater
Power dividers (also power splitters and, when used in reverse, power combiners) and directional couplers are passive devices used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another circuit. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler.
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
|
Frequency Range
|
700- 2700MHz
|
|
Coupling (dB)
|
6
|
|
Insertion Loss (dB)
|
≤1.7
|
|
In-band Ripple (dB)
|
±0.8
|
|
VSWR
|
<1.25
|
|
Directivity
|
≥20
|
|
PIM (IM3)
|
<-150dBc @+43dBm*2
|
|
Power Handling
|
300W
|
|
Impedance
|
50Ω
|
|
Connector Type
|
N-Female
|
|
Applied Environment
|
IP65, Outdoor or Indoor
|
|
Relative Humidity
|
5 to 95%
|
|
Operating Temperature
|
-25 to +70℃
|
|
Material
|
Cavity: Aluminum; Connector: Copper
|
|
Processing
|
Silver plated cavity and inner conductor
|
|
Dimension
|
159.4*63.2*16.5mm
|
|
Weight
|
0.242Kg
|
