Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: ST-2
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+3--6+unit
Packaging Details: Standard neutral packing，52x21x16cm(1kit),
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Model Number: |
2-Way Splitter |
Impedance: |
50OHm |
IM3: |
-150dBC |
Frequency: |
800-2500MHz |
Connector: |
N/Female |
Color: |
Black |
Warranty: |
12 Months |
Products Name: |
4g Repeater |
Model Number: |
2-Way Splitter |
Impedance: |
50OHm |
IM3: |
-150dBC |
Frequency: |
800-2500MHz |
Connector: |
N/Female |
Color: |
Black |
Warranty: |
12 Months |
Products Name: |
4g Repeater |

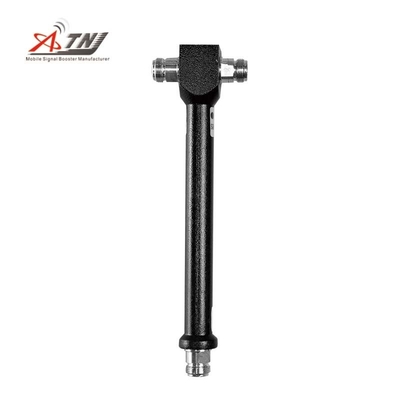

2G 3G 4G Signal Booster Accessories 800MHz 2500MHz 2 Way Splitter
ATNJ 800-2500mhz 2 ways splitter for 2G 3G 4G Mobile Phone Signal Repeater
RF 2 way Power Splitter is an equal power-distribution device and low insertion loss BTS/IBS passive component. It can be applied to indoor or outdoor signal distribution system, featured as dividing one input signal into two signal outputs with the same amplitude.
Features :
● Multiple-Band Frequency Ranges
● High Power Rating 300 Watt
● High Reliability
● Low Cost Design for ease of mounting
● N - Female Connector
|
Product Type
|
2 - way Splitter
|
|
Model Number
|
SP2 - 0827 - N300
|
|
Frequency Range
|
800 – 2700MHz
|
|
Insertion Loss
|
< 3.3dB
|
|
VSWR
|
< 1.3
|
|
PIM (IM3) |
< - 155dBc @ + 43dBm*2
|
|
Power Handling
|
300W
|
|
Impedance
|
50Ω
|
|
Connector Type
|
N - Female
|
|
Applied Environment
|
Indoor / Outdoor
|
|
Relative Humidity
|
5 to 95%
|
|
Operating Temperature
|
- 25 to +70℃
|
|
Protection class
|
IP65
|
|
Material
|
Cavity : Aluminum ; Connector : Copper
|
|
Processing
|
Silver plated inner conductor
|
|
Dimension
|
218x60x25mm
|
|
Net Weight
|
0.35Kg
|
Further detail pls click here for downloading the products specification:
ATNJ Mobile Signal Repeater.pdf
FAQ :
1. What're the main products of ATNJ?
ATNJ specializes in manufacturing all types of communication products. Our main products are repeaters, antennas, power splitters, couplers, combiners, cables, and connectors.
2. Can your company provide Technical Support?
Yes. We have experienced technical experts who are willing to help you deal with technical problems.
3. Do you test the equipment before your delivery?
Yes. We do test every component after installation to ensure we've delivered the signal solution you needed.
4. Can you accept the small order?
Yes, small order is available in our company.
5. Do you have OEM&ODM service?
Yes, we can support our customers specialled products and we are able to put your logo on the products.
