Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: GSM+4G
Document: 900+2600 A009 Repeater.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+240---260+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Band8 900MHz Frequency Range: |
890-915MHz/935-960MHz |
Band 41 2600MHz Frequency Range: |
2496-2690MHz/ 2496-2690MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Black |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Origin: |
Shenzhen,CN |
Products Name: |
Signal Repeater |
Function: |
Boost Cell Phone Signal |
AGC Intelligent Function: |
Done |
Max Gain: |
65±3dB |
Wifi Contronal: |
Done |
Pass Band Ripple: |
≤5dB |
Booster Gain: |
70dB |
Band8 900MHz Frequency Range: |
890-915MHz/935-960MHz |
Band 41 2600MHz Frequency Range: |
2496-2690MHz/ 2496-2690MHz |
Gain: |
80dB |
Output Power: |
27dBm |
Color: |
Black |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Origin: |
Shenzhen,CN |
Products Name: |
Signal Repeater |
Function: |
Boost Cell Phone Signal |
AGC Intelligent Function: |
Done |
Max Gain: |
65±3dB |
Wifi Contronal: |
Done |
Pass Band Ripple: |
≤5dB |
Booster Gain: |
70dB |

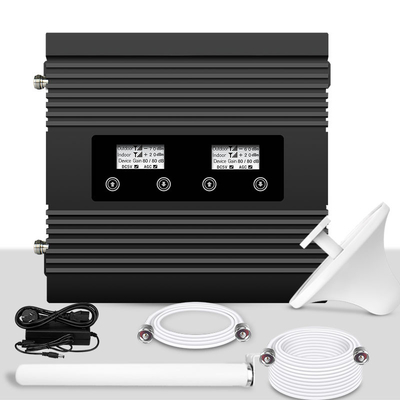

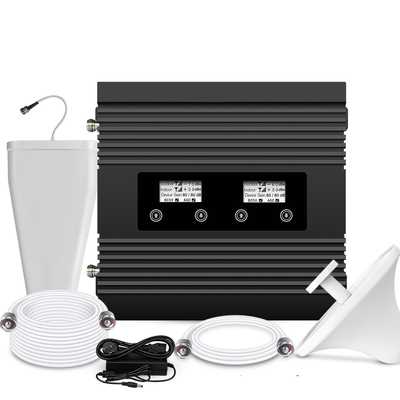

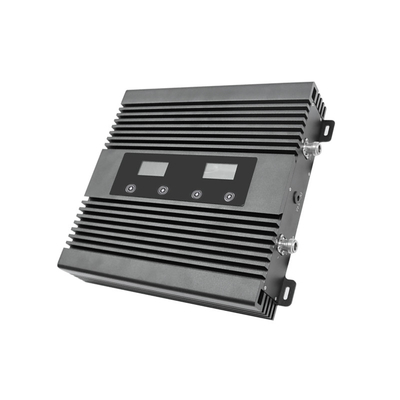

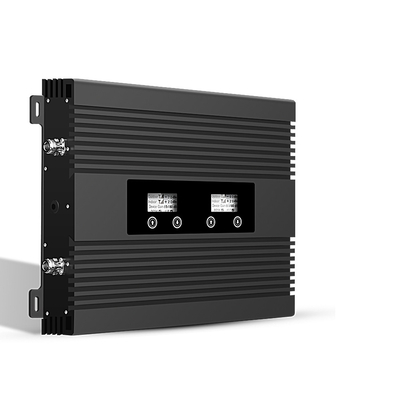

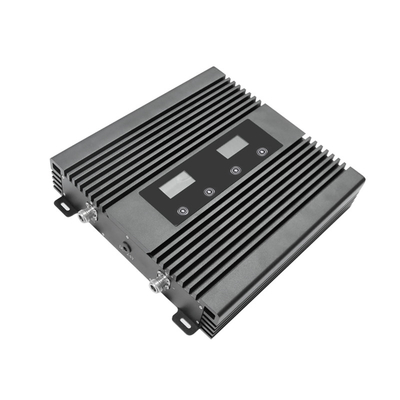

Cell Phone Booster Ampilifier Dual Band 900/2600MHz Mobile Signal Repeater 2G 4G 5G
Dual Band 900 2600MHz GSM Repeater Amplifier ALC Intelligent Function
Boost: 2G Voice and 4G Network
Coverage: 350-800 Square Meters
Suitable For: Russia,Spain,France,Ukraine,Europe,Asia,etc
Warranty: 3 Years!
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
890-915MHz,2496-2690MHz |
|
Downlink |
935-960MHz, 2496-2690MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
30MHz&75MHz |
|
|
Gain |
80dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
27dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Antenna |
Log Periodic Antenna +Ceiling Antenna |
|
|
Trademark |
ATNJ |
|
Further detail pls click here for downloading the products specification:
Selling Point
1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, Initiative reminding when the device was damaged.
Product Description
Boost: 2G Voice and 4G Network
Coverage: 350-800 Square Meters
Suitable For: Russia,Spain,France,Ukraine,Europe,Asia,etc
Warranty: 3 Years!
We are manufacturer, and have our own factory.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are the factory, with good trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5.Is it safe to use a cell phone repeater?
Everybody knows that mobile phones emit radiation that harms our health. The good news is that by using a cell phone repeater you can significantly reduce the level of radiation emitted by your phone. Additionally, every cell phone repeater from our store meets the international standards of CE and RoHS.
Warranty
● Please note that we always check and test the product twice before shipping and pack them well as far as possible.If the product is broken at receiving,please contact us,we would resend you a new one.
● Three years warranty period for our booster,it is only 3 months for the accessories.If the booster have any problems, please show us an video or some photos of your complete installation, we will help you. Please do not open dispute or leave negative feedback before contact us.we will reply you within 24 hours,except holiday.
