| Brand Name: | ATNJ |
| Model Number: | AS-EGSM |
| MOQ: | 5Pcs |
| Price: | USD+40---49+kit |
| Packaging Details: | Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |

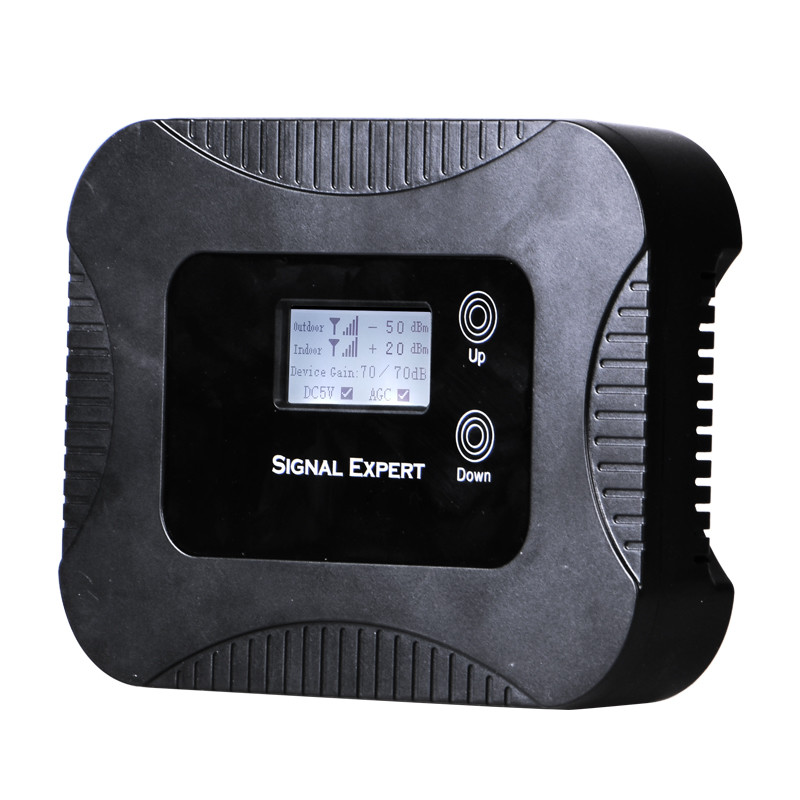

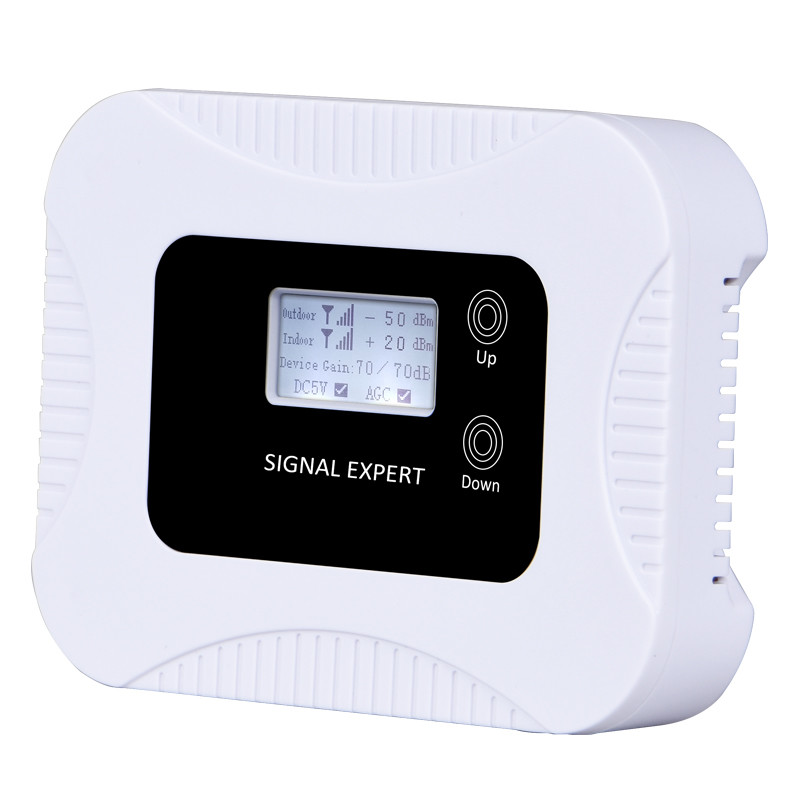

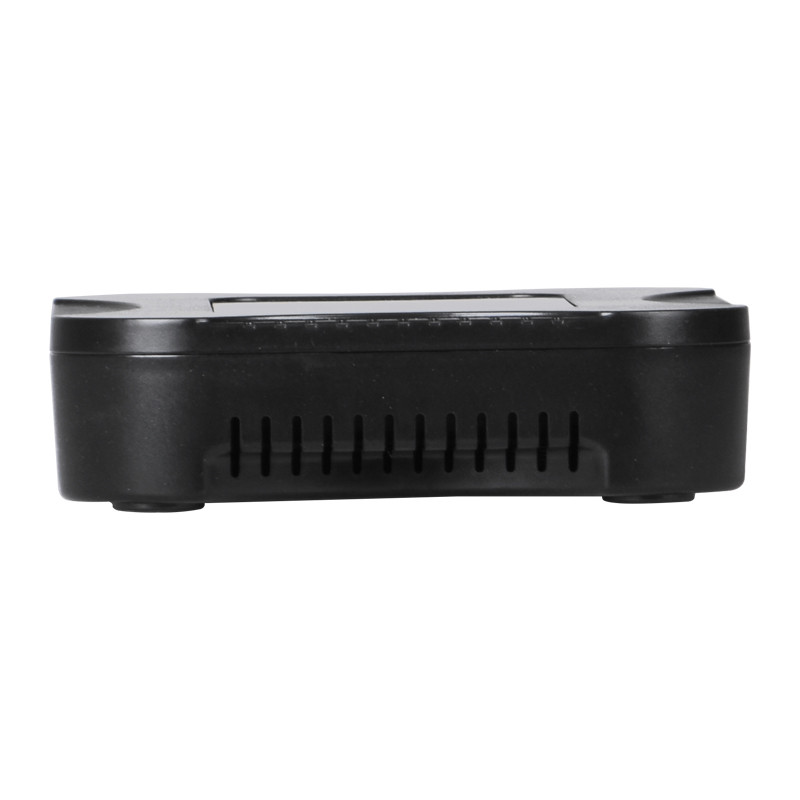

Cell Phone Gain 70dB GSM Signal Booster With ALC AGC Function
With ALC AGC Function
Can control gain automatically. Avoid base station interference
Band8 EGSM900MHz -- Uplink frequency: 880-915MHz/Downlink frequency : 925-960MHz
Network support : 2G
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.
| Single Band Repeater with AGC/MGC | ||||
| Model | AS-EGSM | |||
| Frenquecy Range | 880~915MHz 925~960MHz | |||
| Working System | EGSM 900MHz | |||
| Gain | 70dB | |||
| Device Output Power | 17-20dBm | |||
| Bandwidth | Wide Band | |||
| Ripple in Band | ≤ 4dB | |||
| Noise Figure @ Max.Gain | ≤ 6dB | |||
| V.S.W.R | ≤ 2dB | |||
| MTBF | > 50000Hours | |||
| Power Supply | AC:90~265V; 50 / 60Hz DC:9V 3A | |||
| Power Comsumption | < 20W | |||
| Impedance Matching | 50ohm | |||
| Mechanical Specification | ||||
| RF Connector | SMA Female | |||
| Cooling | Heatsink Convection Cooling | |||
| Dimension | 170*130*26(mm) | |||
| Net Weight | 0.35KG | |||
| Installation Type | Wall Installation or Desk | |||
| Environment Conditions | IP40 | |||
| LCD Intelligent Guide | Done | |||
| Trademark | ATNJ | |||
Further detail pls click here for downloading the products specification:
EGSM 900MHz B07 Signal Repeater.pdf
Signal Booster Description:
When the cellphone is connected to the external antenna and the booster, it will think that the cell tower is nearby. Data rates are improved, and dropped calls will be prevented. And best of all, the phone's battery life will be extended, because the phone is not using its full power to find signal. An antenna is mounted outside the vehicle and gets the signal from the network before it is blocked by glass and metal.
Signal Booster Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
1. What is your advantage?
---Your inquiry will be replied in 24hours .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 36months guarantee .
2. What is our Payment methods?
We agree T/T, Western Union, PayPal.L/C for old customers.
3. What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc .
Delivered time: 1-3 business days for sample, 10-25 days for mass order .
Trade terms: EXW, FOB , CIF etc .
4. Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
5. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
|
