Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-Wireless
Document: 10Watt MU+RU 1800+2100+2600...em.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+1800---2500+kit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Support Frequency Range: |
Customized |
Device Gain: |
90-95dB |
Device Output: |
28--32dBm |
Protection Level: |
IP55/IP65 |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC Function: |
Done |
System Delay: |
≤ 5μs |
RF Connect Type: |
N/Female |
Device Input Power: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Device DWeight: |
12kg |
Support Frequency Range: |
Customized |
Device Gain: |
90-95dB |
Device Output: |
28--32dBm |
Protection Level: |
IP55/IP65 |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC Function: |
Done |
System Delay: |
≤ 5μs |
RF Connect Type: |
N/Female |
Device Input Power: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Device DWeight: |
12kg |

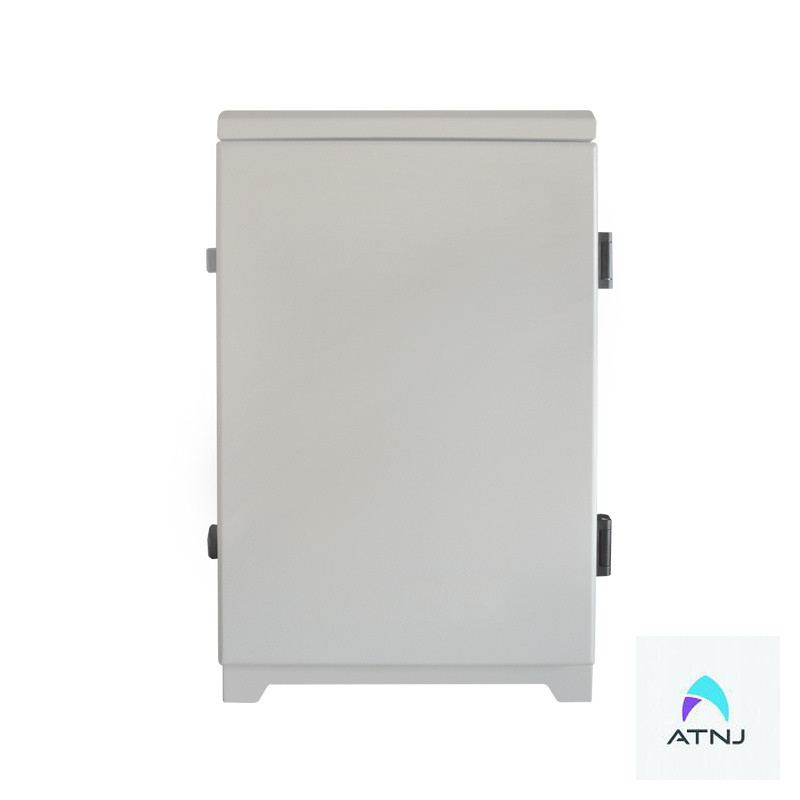

IP65 Multi Band Repeater Optical Fiber 5G signal booster 2G 3G 4G
Industrial Optical Fiber 5G signal booster 2G 3G 4G cell phone signal repeatear
Optical fiber mobile signal booster system parameters
TDD-LTE Band 38 (2570MHz - 2620 MHz)
TDD-LTE Band 39 (1880MHz - 1920 MHz)
TDD-LTE Band 40 (2300MHz - 2400 MHz)
FDD- LTE Band 1 (U1920MHZ-1980MHZ / D2110MHZ-2170MHZ)
FDD- LTE Band 3 (U1710MHZ-1785MHZ / D1805MHZ-1880MHZ)
GSM Band 8 (U 890MHZ-915MHz / D 935MHZ-960MHz)
DCS 1800MHz (U1710MHZ-1785MHZ / D1805MHZ-1880MHZ)
Parameter index
Project | General technical indicators |
Device Gain | ≥90dB |
Device Output Power | 1,2,5,10,20W |
Noise Figure | ≤4.0dB |
Gain adjustment range | ≥30dB |
ALC control range | ≥30dB |
ACPR | ≤-40dBc(LTE20MHz/PAR=10dB) |
Spurious emission | Meet 3GPP TS 25.106 requirements |
Port standing wave ratio | ≤2.0 |
Port impedance | 50Ω |
Operating temperature | -40～+60℃ |
Protection level | IP55/IP65 |
Further detail pls click here for downloading the products specification:
We are manufacturer, and have our own factory.
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. What's your device lifespan?
Normally our device can be used 5-10 years.
5. How many square meters can be covered?
For different models, the covered square meters are different.
6. Can I use your device in suburbs or remote areas?
Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
7. How about gain and output power of your device?
Different models, gain and output power are different,for more details, please contact us.
