Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: AT-003
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD+230-280+unit
Packaging Details: Standard neutral packing,48x46x18cm(1 kit)
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
Support Frequency Range: |
Customized |
Device Gain: |
85±3dB |
Device Output: |
30±2dBm |
Color For Choice: |
Black ,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC Function: |
Done |
System Delay: |
≤ 5μs |
RF Connect Type: |
N/Female |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Device DWeight: |
8.5kg |
Support Frequency Range: |
Customized |
Device Gain: |
85±3dB |
Device Output: |
30±2dBm |
Color For Choice: |
Black ,Customized |
AGC Intelligent Function: |
Done,31dB @ 1dB/ Step |
ALC Intelligent Function: |
Done |
MGC Function: |
Done |
System Delay: |
≤ 5μs |
RF Connect Type: |
N/Female |
Power Supply: |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC24V/5A Power Adapter) |
Inter-Modulation Attenuation ACPR: |
≤ -40dBc / 30kHz (measured Under Rated Output Power) |
Device DWeight: |
8.5kg |

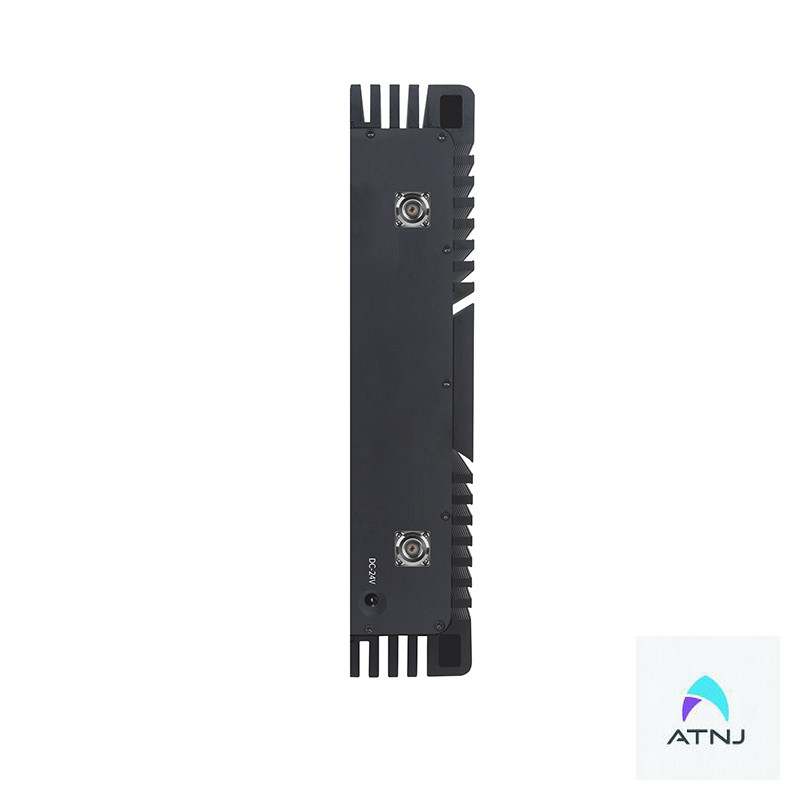

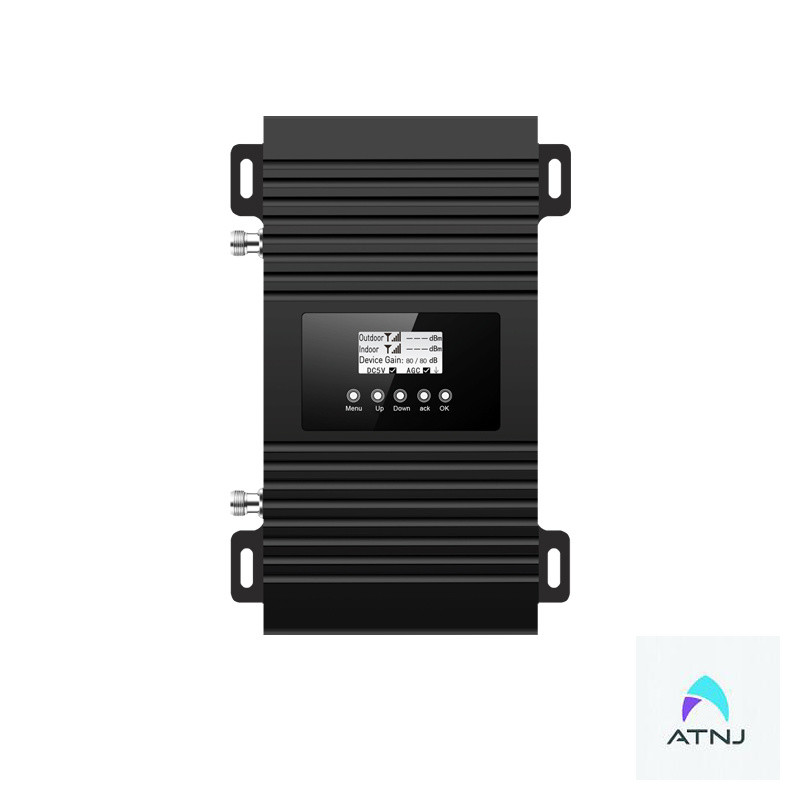

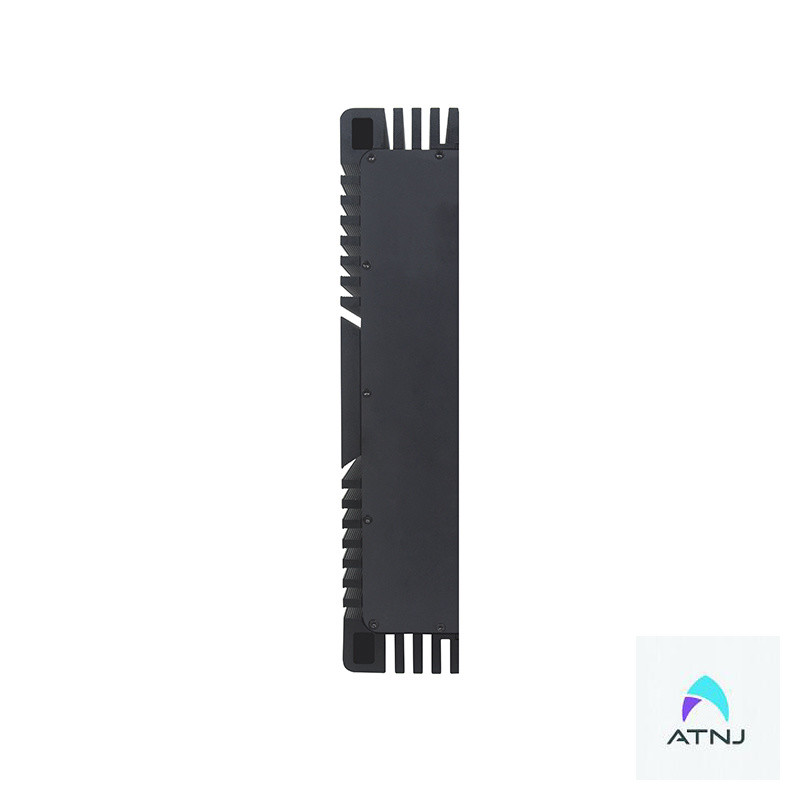

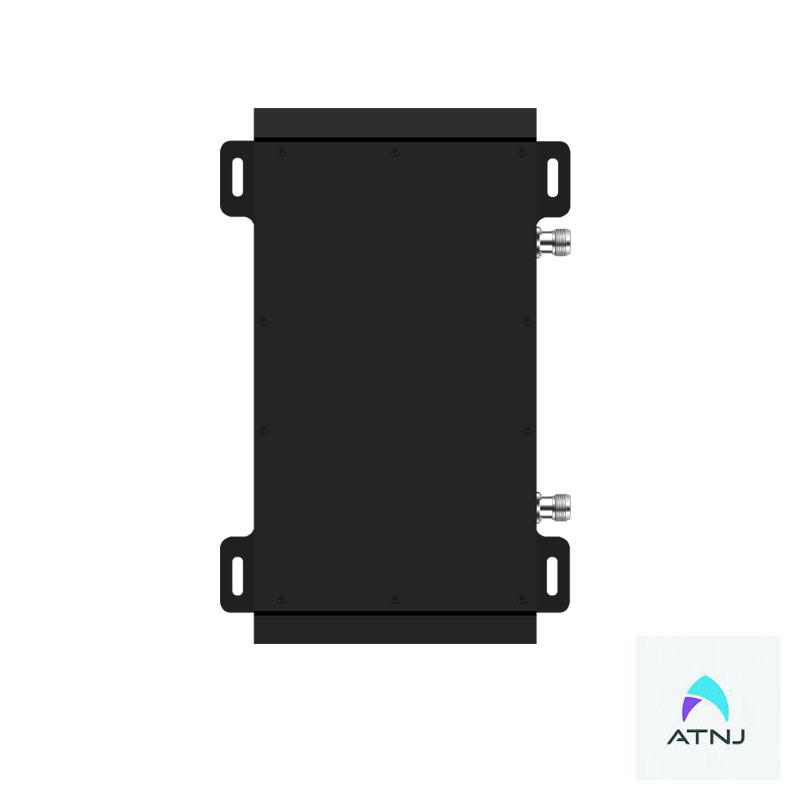

Customized FDD LTE 1800MHz 4G Signal Repeater Cellular Amplifier
Full 4G Signal Booster FDD1.8/TDD-LTE2.6-80-27 Cellular Amplifier
General
The 1800MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Signal Booster Band configuration
|
FDD-LTE1800MHz |
1710~1785MHz/1805~1880MHz |
|
TDD-LTE2600MHz |
2575~2675MHz |
The frequencies band of signal booster can be customized according to customer requirements.
technical parameter
|
Max Gain |
88dB |
Working Temperature |
80% |
|
Max Power |
30±3dBm |
RF connector |
N-K |
|
System Delay |
≤ 5μs |
Noise |
7dB |
|
Working Voltage |
AC100~240V 50/60Hz |
Weight |
2.8kg |
|
Working Temperature |
-25°c~+55°c |
Dimensions |
268X170X60mm |
Further detail pls click here for downloading the products specification:
DCS 1800MHz AT003 Signal Repeater.pdf
FAQ:
Q1 Could you send us antenna sample for qulification?
A: Yes, we will consider the antenna sample qulification as the first step of our long term coorperation, we will rebate the sample charge in further mass production order.
Q7: What is your payment terms?
A: We accept Alibaba Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
