Product Details
Place of Origin: China
Brand Name: ATNJ
Certification: CE,ROHS，CCC，TUV,BV， ISO
Model Number: JS-DB1800/2100
Document: 1800+2100MHz A032 mobile s...er.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5Pcs
Price: USD+100---120+kit
Packaging Details: Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Delivery Time: 3 work days
Payment Terms: T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability: 1000+unit+per day.
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Color: |
Gold Or Black Or White Or Customized |
RF Connect Type: |
N/Female |
Warranty: |
3 Years |
Products Type: |
Repetidor De Seal Celular 3g Y 4g, Signal Booster Antenna 3g 4g Lte |
1800MHz Frequency Range: |
1710-1785MHz / 1805-1880MHz |
2100MHz Frequency Range: |
1920-1980MHz / 2110-2170MHz |
Color: |
Gold Or Black Or White Or Customized |
RF Connect Type: |
N/Female |
Warranty: |
3 Years |
Products Type: |
Repetidor De Seal Celular 3g Y 4g, Signal Booster Antenna 3g 4g Lte |

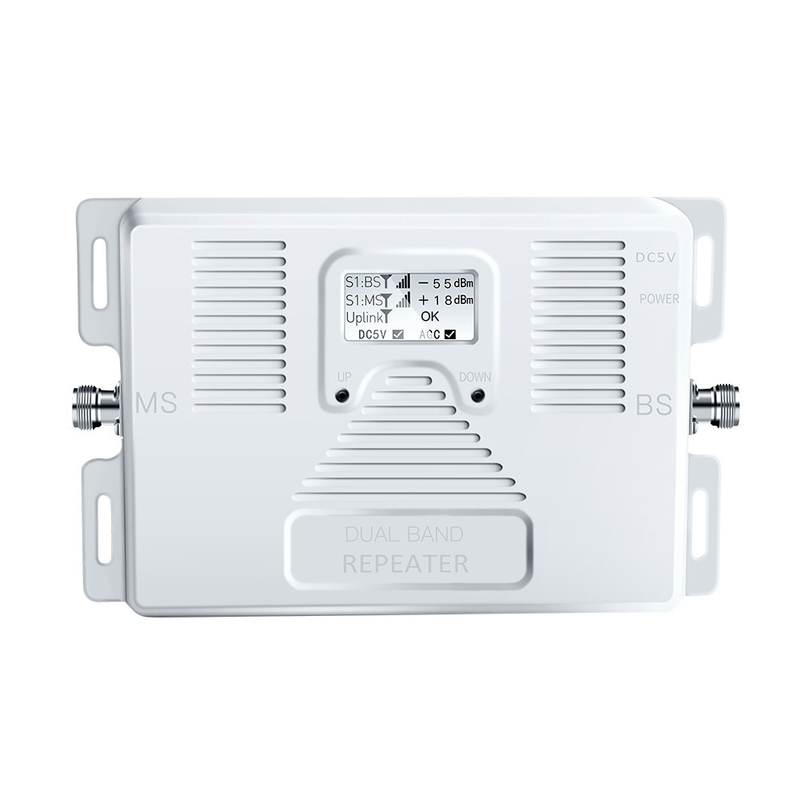

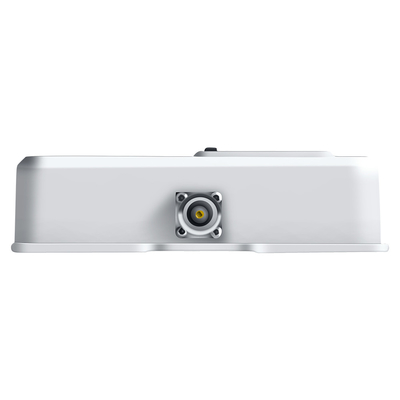

1800MHz 2100MHz 70dB Dual Band Signal Booster Repeater 2G 3G 4G
2G 3G 4G Dual Band Signal Booster 1800 2100MHz Mobile Signal Repeater Amplifier
General
The 1800/2100MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Technical Specifications
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1785MHz, 1920-1980MHz |
|
Downlink |
1805-1880MHz, 2110-2170MHz |
|
|
Frequency Bandwidth |
75MHz&60MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
20dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
N(Female) |
|
|
Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
|
Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|
|
Dimensions |
165*130*40 (mm) |
|
|
Weight |
≤0.8 kg(Net) |
|
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
|
Indication LED |
Power supply |
|
Further detail pls click here for downloading the products specification:
1800+2100MHz A032 mobile signal repeater.pdf
Selling Point
1. Intelligent to guide the installation with LCD
2. Real time display the signal strength.
3. Automatic dormancy when no user make the calling
4. Automatic alarm when installation mistake and provide the according solution
5. Automatic adjust the system gain to avoid the repeater self-excitation
6. Initiative reminding when the device was damaged.
Product Description
Accessories:
1. Dual band signal booster;
2. Indoor Ceiling antenna;
3. Outdoor Log-periodic antenna;
4. 20 meter cable and 5 meter cable;
5. User manual;
6. power adapter.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
4. Does the signal booster work have radiation or not ?
Yes,but just little ,it also can reduce the radiation when you calling ,because it will have more radiation if no signal when you dialing on your phone.So don’t worry and use in house ,it is better for you than not use when no signal in house.
5. Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal, only amplify a weak one.
