| Brand Name: | ATNJ |
| Model Number: | AS-AWS |
| MOQ: | 5Pcs |
| Price: | USD+40---49+kit |
| Packaging Details: | Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm) |
| Payment Terms: | T/T, Western Union,Paypal,Alibaba,Bank transfering. |
1700MHz 3G Signal Booster
Mobile Signal Booster Amplifier ASW1700MHz Cellular Signal Repeater
Model No :AWS
(Band 4) 1700/2100MHz -- Uplink frequency: 1710-1755MHz/Downlink frequency :2110-2155MHz
Network support : 3G4G, Internet
Gain :70±2dB
Power Supply :AC110V~220V;DC+5V/2A
Connector Type: SMA-female connector.
Description
|
Specifications |
Parameters |
|
|
Frequency Range (Customers to Choose) |
Uplink |
1710-1755MHz |
|
Downlink |
2110-2155MHz |
|
|
Frequency Bandwidth (3dB Bandwidth) |
75MHz |
|
|
Gain |
70dB |
|
|
Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
|
Auto Gain Control |
20dB Min. |
|
|
Output Power(Customers to Choose) |
17±3dBm |
|
|
Spurious Emission |
≤ -15dBm/30kHz |
|
|
9kHz~1GHz: ≤ -36dBm/30kHz |
||
|
1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
|
Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
|
In-band Ripple |
≤ 3dB |
|
|
VSWR |
<=2 |
|
|
I/O Impedance |
50 Ω |
|
|
Noise Figure |
≤ 5dB |
|
|
System Delay |
≤ 5μs |
|
|
RF Connector(Customers to Choose) |
SMA(F) |
|
|
Operating Temperature |
- 10°C ~ + 55°C |
|
|
Origin |
Shenzhen,CN |
|
|
Transport Package |
Yagi + Pen Antenna |
|
Further detail pls click here for downloading the products specification:
AWS 1700MHz B07 Signal Repeater.pdf
Selling Point
2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.

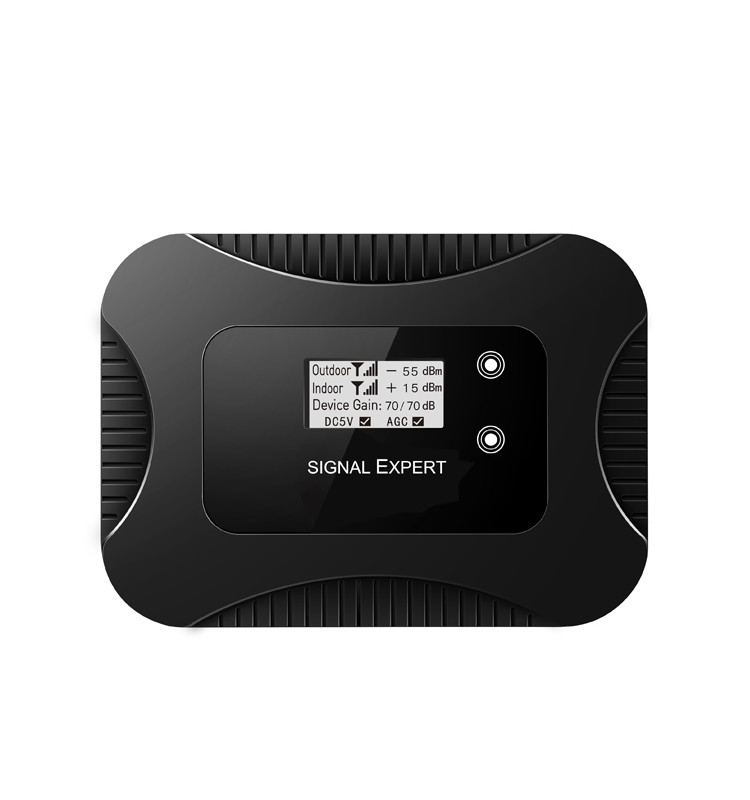

1, Intelligent to guide the installation with LCD
2, Real time display the signal strength.
3, Automatic dormancy when no user make the calling
4, Automatic alarm when installation mistake and provide the according solution
5, Automatic adjust the system gain to avoid the repeater self-excitation
6, initiative reminding when the device was damaged.

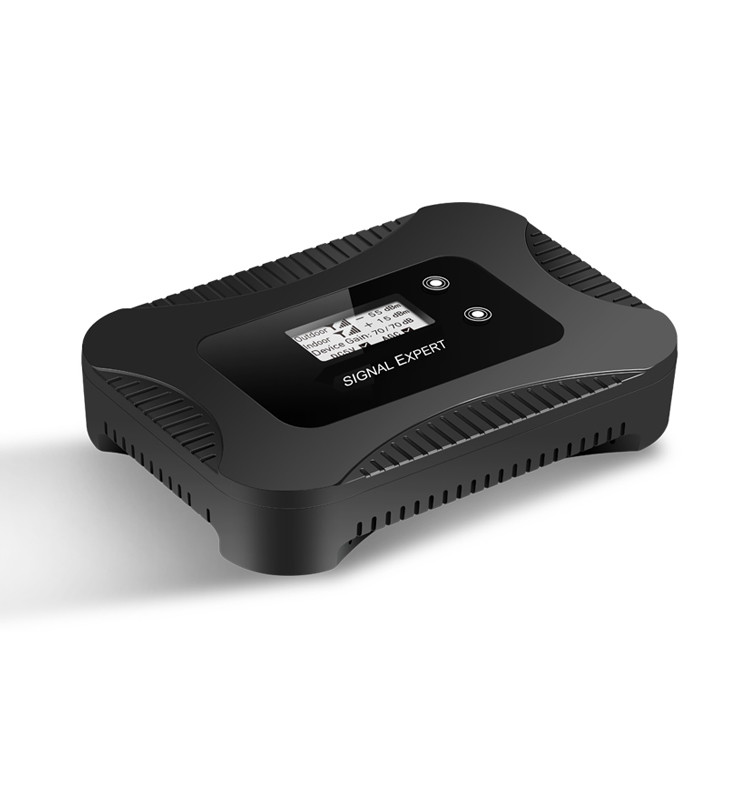

Product Images
FAQ
1. What is your advantage ?
---Your inquiry will be replied in 24hours .
---Well-trained and experienced staffs to answer all your inquires in fluent English .
---OEM&ODM, for any of your customized products we can help you to design and put into product .
---All our products with 12months guarantee .
2. What is our Payment methods ?
We agree T/T, Western Union, PayPal.L/C for old customers .
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
|
|
